7

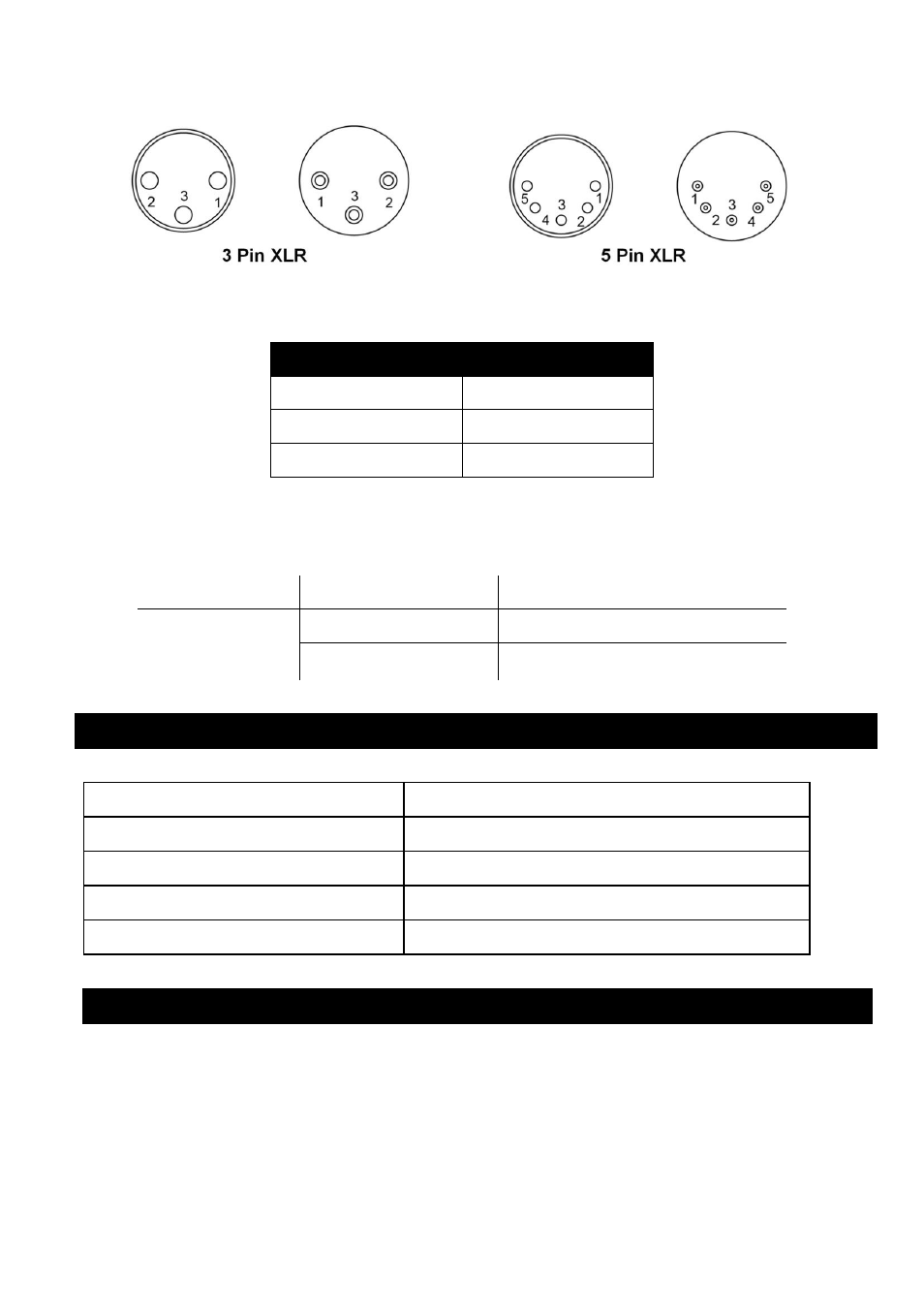

Pin Function
1 Ground
2 Data-
3 Data+
DMX Channel Function
Channel DMX Value Range Function
1
0
– 5
Fog Off
6 – 255 100% Fog Output
Status of W-DMX connection (Optional)
Symbol on the Liquid Crystal Display Status of W-DMX connection
○ Transmitter not assigned
◎ Transmitter assigned, No DMX signal
⊙ Transmitter link lost or linking to transmitter
●
Transmitter assigned, DMX signal received
Wireless Remote Control Operation (Optional)
The wireless remote control system W-1 consists of a transmitter equipped with two buttons
for on and off functions and a receiver pre-attached to the rear panel of M-4.
*Transmitter
