7

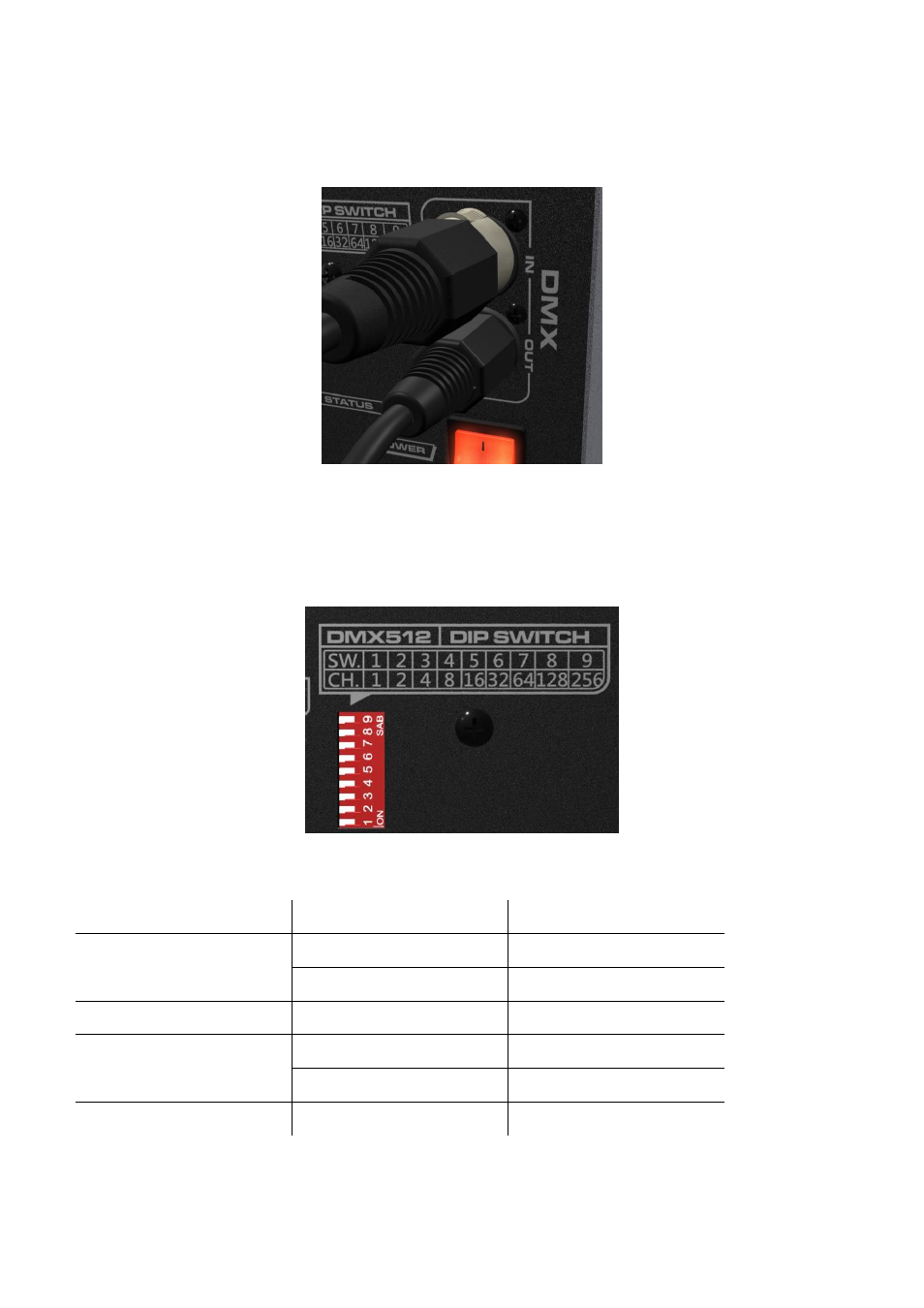

machines in the DMX chain. The machine uses an 3-pin XLR connector for DMX connection,
the connector is located on the rear of the machine.
Address Setup
– Use the DIP switch located on the rear of the machine to set the DMX
address. The machine occupies 2 control channels. The starting address is defined as the
first channel from which the machine will respond to the controller. Always double check to
make sure there are no overlapping channles in order to control the machine correctly.
DMX Channel Function
Channel 1 DMX Value Range Function
Haze Output Level
0
– 4
Haze Off
5
– 255
Haze Output 1
– 100%
Channel 2 DMX Value Range Function
Fan Output Level
0
– 4
Fan 20%
5
– 255
Fan 21
– 100%
