6
Rotary Knob Function
SMOKE Turn haze on/off, adjust output volume from 0~100%
FAN Adjust fan speed from 20%~100%

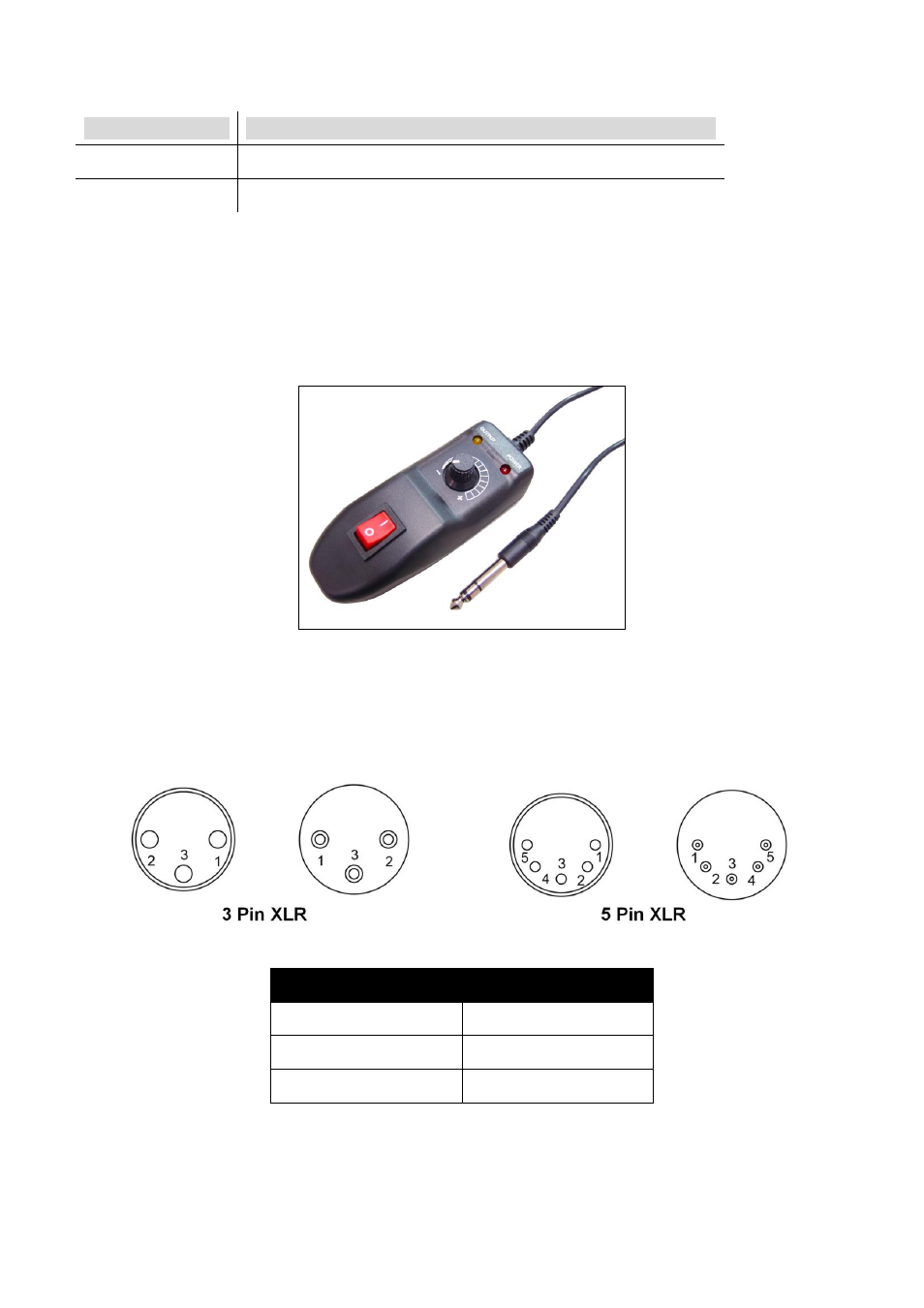

Remote Control Operation (Optional)
To operate the machine by remote control, connect the remote to the microphone jack
located on the rear of machine. Use the switch to turn haze on/off, and use the rotary knob to
adjust the output volume from 0~100%.
DMX Connector Pin Assignment
The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below indicate
pin assignment information
Pin Function
1 Ground
2 Data-
3 Data+
DMX Operation
Making the DMX Connection
– Connect machine to a DMX controller or to one of the
