3. Setup
10 12/28/2009 12:38 PM
DMX Fixture
Configuration #2
DMX Controller
DMX Fixture
Configuration #1
Receiver Transmitter
DMX Fixture
Receiver
DMX Fixture
Receiver Transmitter
D-Fi ™ PLUS/Satellite™ D-Fi Configuration Options
The Satellite™ D-Fi is fully compatible with the standalone D-Fi™ PLUS wireless DMX products.
DMX connection for the Satellite™ D-Fi
There are both 3-pin and 5-pin DMX connection on the product. However, only one input and one output must
be used at any time.
Configurations
1. A transmitter is connected to the output of the controller, and a receiver is connected at the input of
the first DMX fixture.
2. A transmitter is connected to the output of a DMX fixture, and a receiver is connected to the input of
the next DMX fixture.

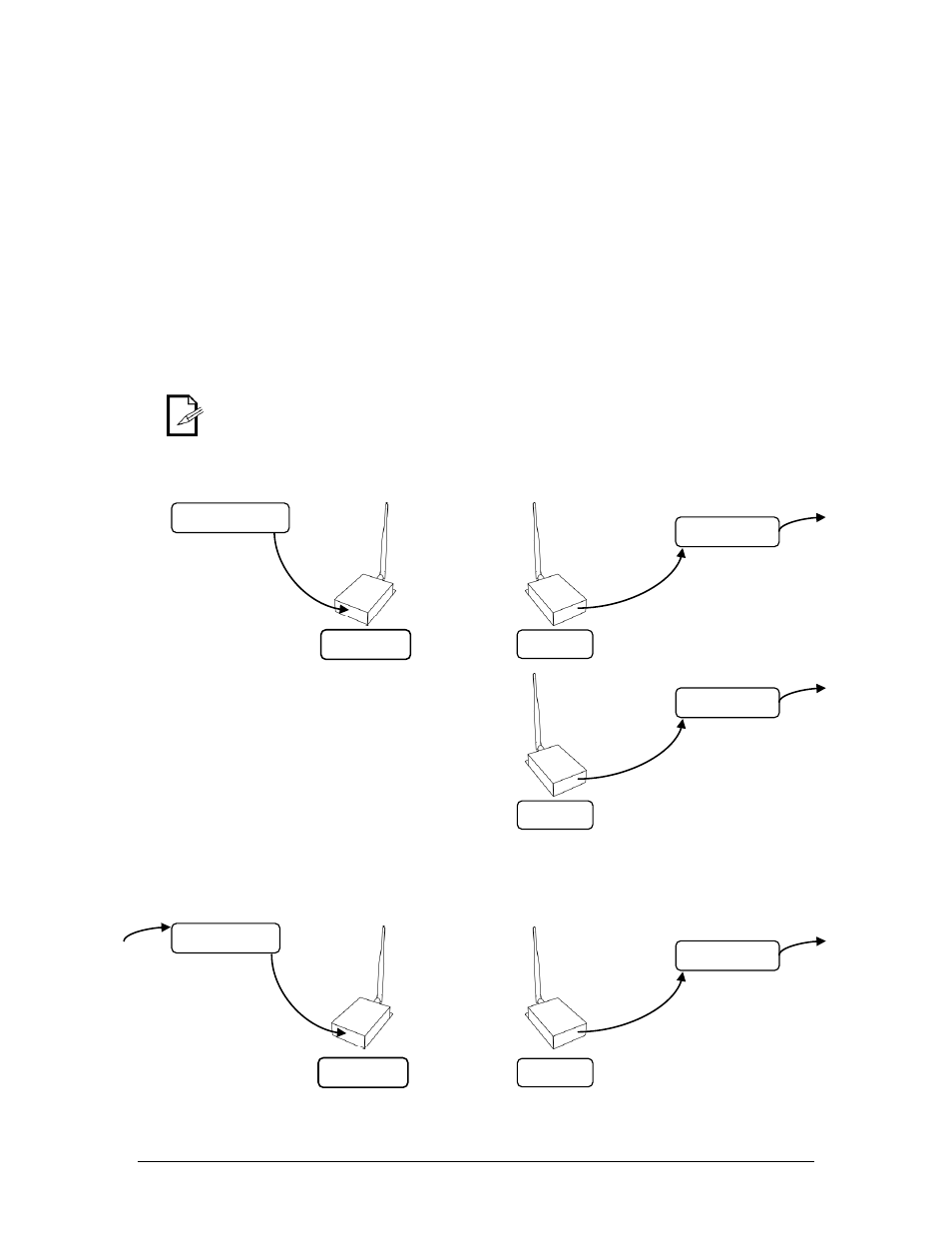

The following diagrams are to demonstrate possible configurations. Multiple receivers may be
used in any possible configuration.
