Pedal Expression Setup

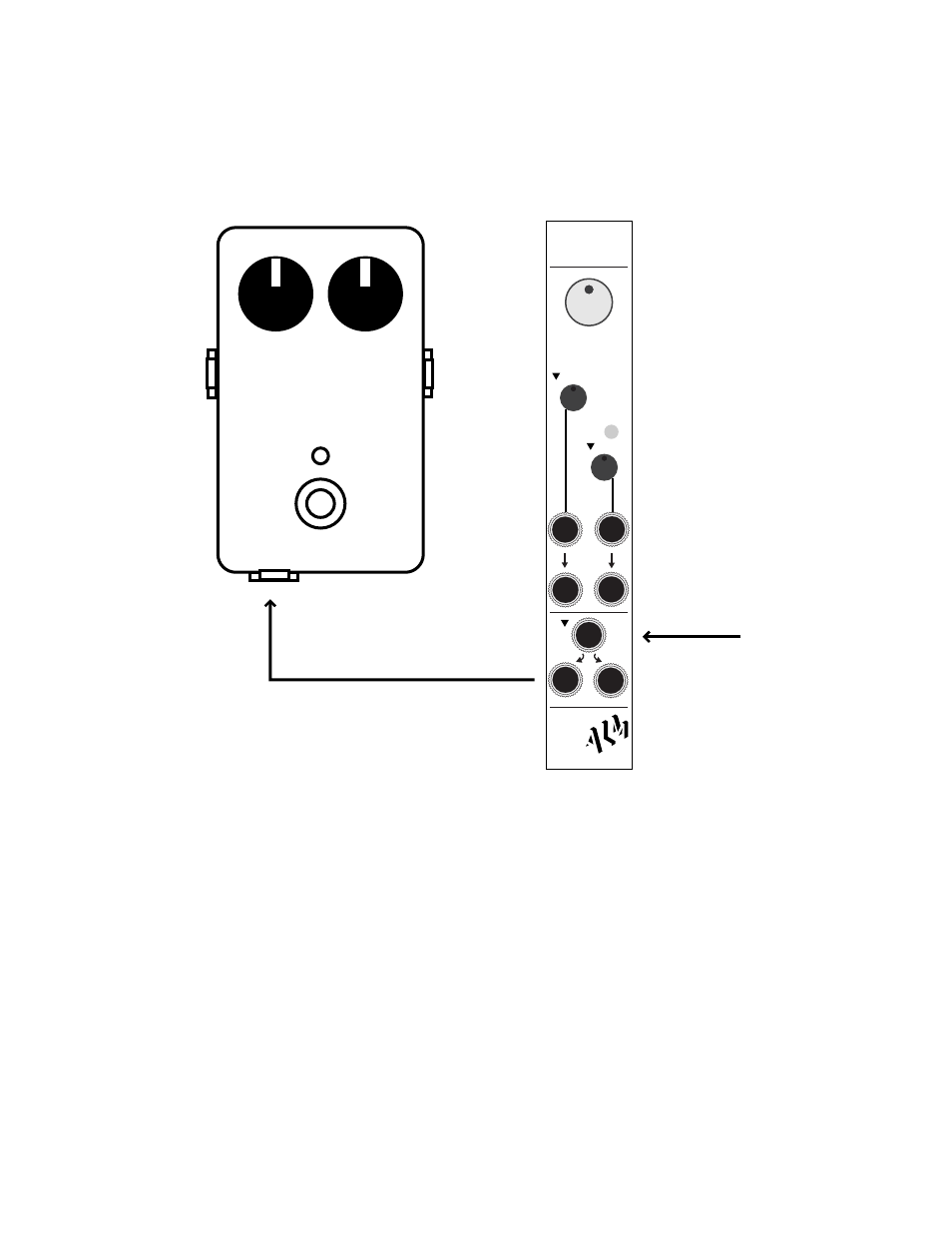

The following diagram shows how to connect an the S.B.G to an expression input.
Passing a modular CV signal through the S.B.G will limit both its voltage level (as
indicated) and its polarity (allowing only the positive part of the signal through) . This
conditions a modular CV signal to be more safely used with guitar pedal expression
inputs. However for maximum safety:
• Always use the supplied ‘floating ring’ cable to connect to the pedals expression
input.
• Always use the correct maximum voltage level for your pedal. Check with your
pedal manufacturer if not sure.
Pedal
Voltage limited CV Signal
NOTE: Always use supplied floating ring
Cable!
Expression Input
CV signal to modular
pedal expression input
Return
Send
3V
DRY | WET
5V
EX
P
S.B.G
ALM-006 - ‘S.B.G’
