Your Airbag System (SRS) includes:
Two SRS (Supplemental Restraint
System) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’s airbag is stored in the
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page
).
Two side curtain airbags, one for
each side of the vehicle. The
airbags are stored in the front and
rear pillars and above the windows.
The front and rear pillars on both
sides are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page
).
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page
).
26
29
31
Additional Information About Your Airbags
Airbag System Components
24
(5)
(3)
(4)
(4)
(5)
(2)
(10)
(8)
(10)
(8)
(9)
(11)
(7) (9) (1) (6)

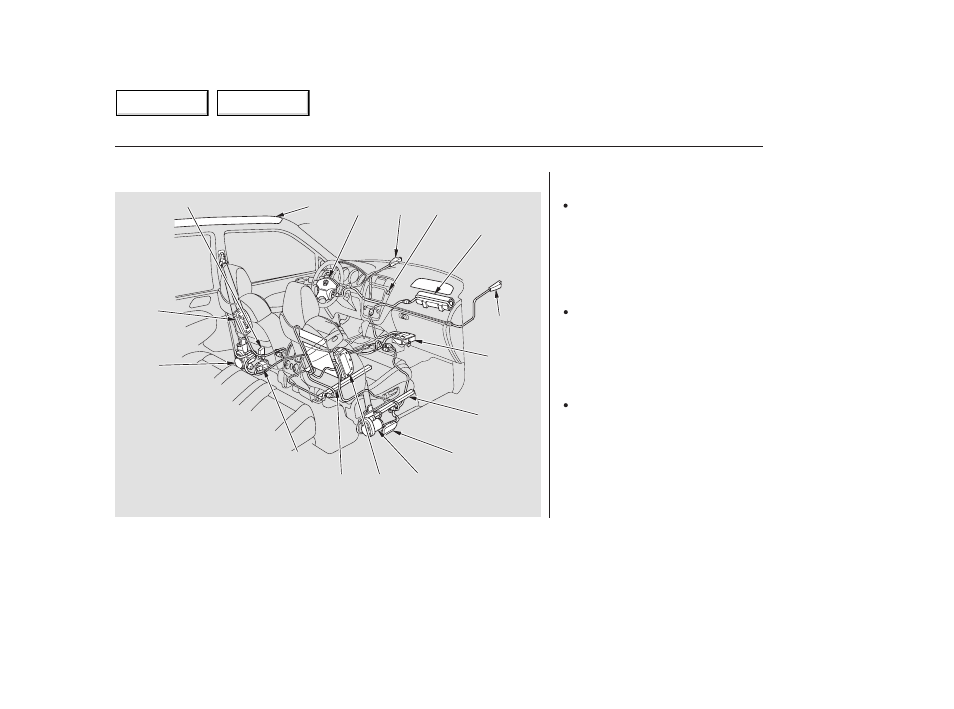

(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Seat Belt Tensioners
(5) Side Airbags
(6) Side Curtain Airbags
(7) Driver’s Seat Position Sensor
(8) Front Passenger’s Seat Weight Sensors
(9) Front Impact Sensor
(10) Side Impact Sensors
(11) Passenger Airbag Off Indicator
