HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED

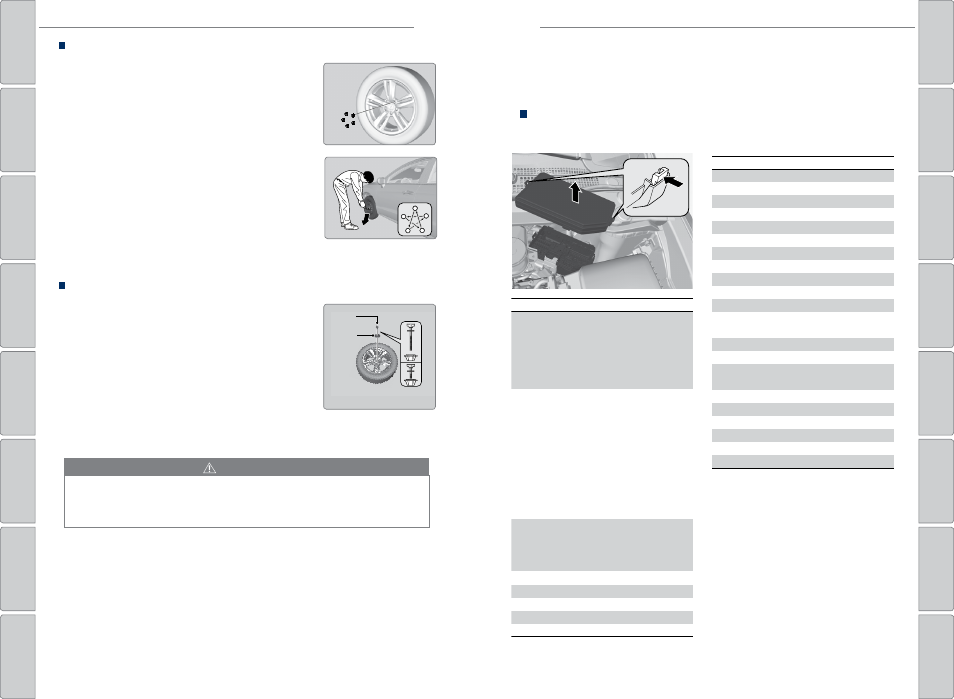

Replacing the Flat Tire
1. Remove the wheel nuts and flat tire.
2. Mount the compact spare tire. Replace the wheel
nuts, and lightly tighten them.
3. Lower the vehicle and remove the jack. Tighten
the wheel nuts in the order indicated in the
image. Go around, tightening the nuts, two to
three times in this order. Do not overtighten the
wheel nuts.
Storing the Flat Tire
1. Remove the center cap and place the flat tire
face up in the spare tire well.
2. Remove the spacer cone from the wing bolt for
the spare tire, and insert the wing bolt for the
regular tire back on the bolt. Secure the flat tire
with the wing bolt.
3. Securely store the jack and wheel nut wrench
back in the tool case. Store the case in the cargo
area.
Loose items can fly around the interior in a crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely before driving.
WARNING
Wing
bolt
Spacer
cone
For normal
tire
For compact
spare tire
Fuse Locations
If any electrical devices are not working, turn the vehicle off and check to see if any
applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the
fuse by the fuse number and box cover number.
Engine Compartment Fuse Box
Located near the brake fluid reservoir. Push the tabs to open the box.
*1: Models with halogen low beam
headlight bulbs
*2: Models with high voltage discharge tube
bulbs
9
−
−
10
−
−
11
Oil Level
7.5 A
12
Fog Lights
*
(20 A)
13
Power Tailgate Closer
*
(20 A)
14
Hazard
10 A
15
IGP2
15 A
16
IG Coil
15 A
17
Stop
10 A
18
Horn
10 A
19
ACM
10 A
20 Right Headlight Low Beam
10 A
*1
15 A
*2
21
MG Clutch
7.5 A
22
DBW
15 A
23
Left Headlight Low Beam
10 A
*1
15 A
*2
24
ACC
10 A
25
FI Main
(15 A)
26
Trailer
(20 A)
27
Small
20 A
28
Interior Lights
7.5 A
29
Back Up
10 A
Circuit Protected
Amps
Circuit Protected
Amps
1
EPS
70 A
Power Tailgate Motor
*
(40 A)
ABS/VSA FSR
20 A
ABS/VSA Motor
40 A
E-DPS
30 A
Main Fuse
120 A
2
ST CUT
50 A
Fuse Box Main 1
60 A
Fuse Box Main 2
60 A
IG Main
50 A
Headlight Washer
(30 A)
Sub Fan Motor
30 A
Rear Defogger
40 A
Main Fan Motor
30 A
Headlight Main
30 A
Blower
40 A
3
Driver's Power Seat Sliding
20 A
Driver's Power Seat Reclining
20 A
Passenger's Power Seat Sliding
20 A
Passenger's Power Seat Reclining
20 A
4
−
−
5
STR Diagnosis Fuse
7.5 A
6
−
−
7
−
−
8
−
−
