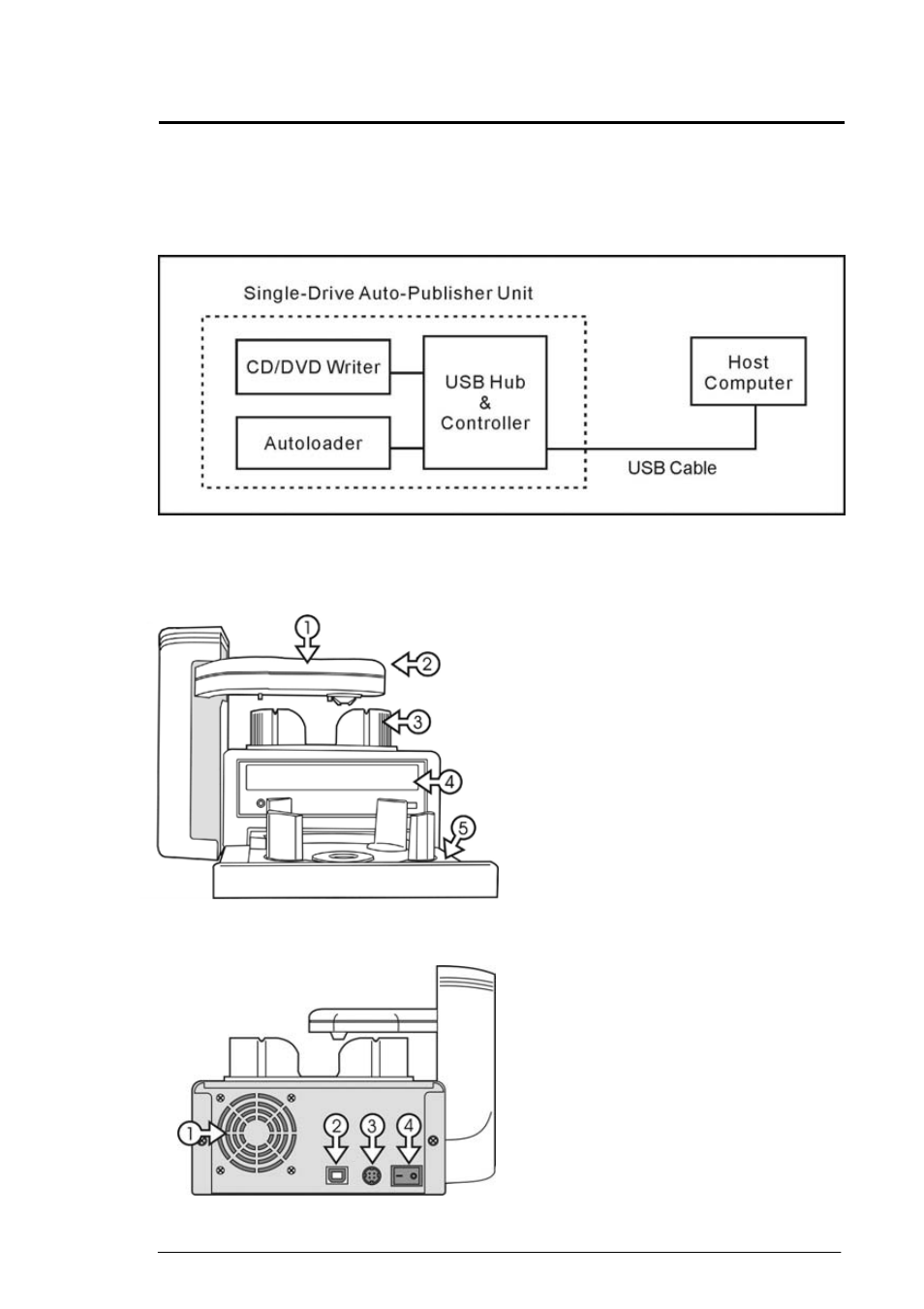

Block Diagram

DupliQ DQ-5610 is an integrated system with a single optical disc drive,
and autoloader. See the illustration below.

A Look at DupliQ

The front view of your DupliQ is illustrated as the below:

1. Robotic

Arm

(auto-loader)

2. LED Status indicator

Green: Ready
Yellow: Burning
Red: Error

3. Output Bin (for output disc)

4. CD/DVD

Recorder

5. Input Tray (for blank disc)

The rear view of your DupliQ is illustrated as the below:

1. Ventilation

Fan

2. USB

Port

3. Power

Socket

4. Power

Switch

0 Warning…

Do not block the ventilation fan during
operation. Overheat may damage
the device or the disc.
