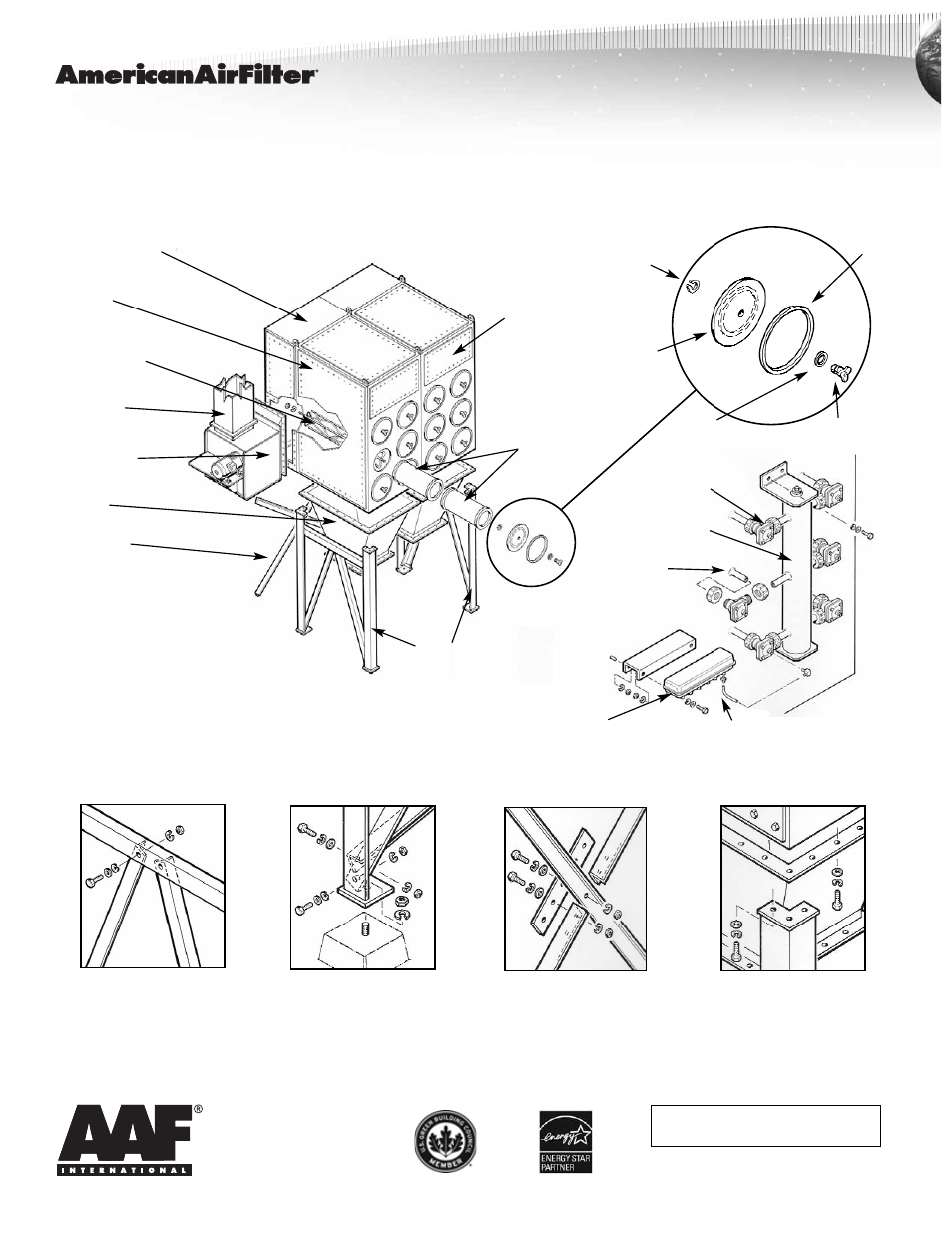

Figure 6 Parts Drawing (Size 3RC24 shown)
Figure 7 Legs and Bracing (All sizes except 2RC4 and 3RC6)
Clean Air Plenum
Housing
Filter Cartridge
Support Yoke
Fan Outlet
Fan Optional
Hopper
Leg Bracing
Standard Front
Inlet Air Location
Filter Cartridges
Legs
Knob
Retaining
Cup
Washer
Knob
Outer
Gasket
Access
Cover
with
Inner
Gasket
Diaphragm
Valve
Compressed
Air Manifold
Blow Pipe
Solenoid
Enclosure
Tubing
Side Bracing - All bolts are
5 ⁄
8
"-11 x 1 3 ⁄
4
" A325 with 5 ⁄
8
A563 nuts and flat washers
Bracing and Leg Anchor - All
bolts are
5 ⁄
8
" x 11 x 1 3 ⁄
4
"
A325 with 5 ⁄
8
A563 nuts and
flat washers
Leg Cross Bracing - All bolts are
5 ⁄
8
" x 11 x 1 3 ⁄
4
" A325 with 5 ⁄
8
A563 nuts and flat washers
Hopper and Legs to Cabinet -
1 ⁄
2
"-13 x 1 1 ⁄
2
" Lg. with washer
and lockwasher
