TWA 1000-M (U9701) UDM 9701
15
S
ET
-U
P
P
ROCEDURES

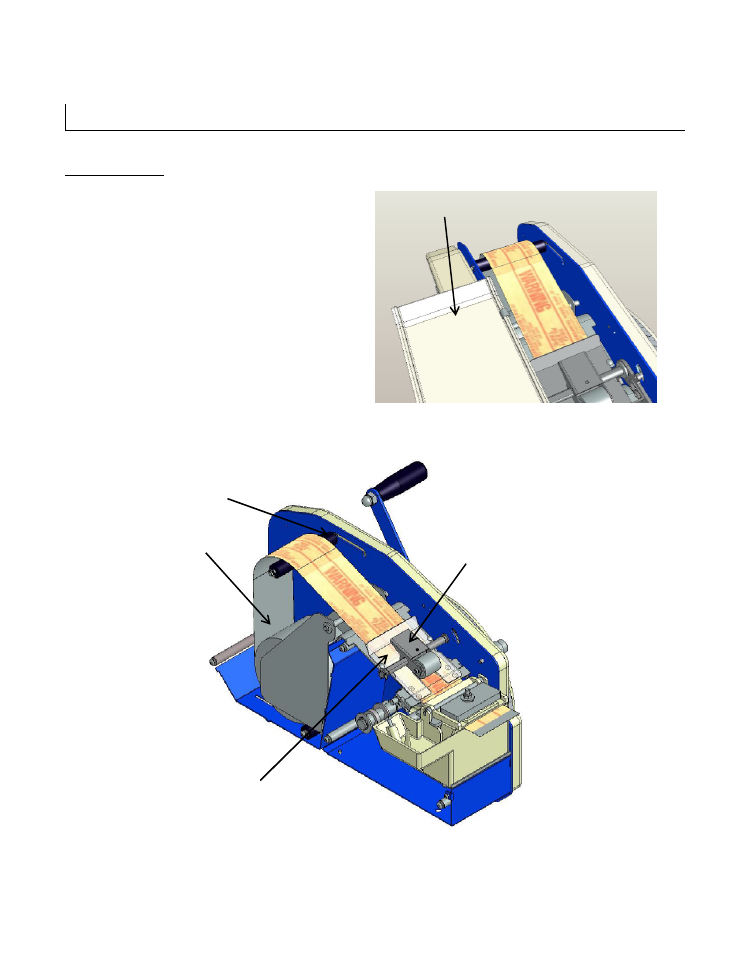

Tape Threading
1. Open the Top Cover over the threading area
2. Remove the Upper Guide Plate by
depressing the pinch roller and sliding the
plate towards the Tape Roll Carriage
3. Feed the tape leg over the feed roller and
advance under the pinch roller to just before
the knife blade
4. Reinstall the Upper Guide Plate by
depressing the pinch roller and sliding the
pressure plate on top of the tape towards the
knife arm
5. Close the top cover
Figure 7-5
Figure 7-6
Top Cover
Pinch Roller
Upper Guide Plate
Tape Roll Carriage
Feed Roller
(shown in small roll
position)
