2| Product description

• Semihermetic six-cylinder reciporating compressor with oil pump lubrication.
• The stream of coolant sucked out of the evaporator flows over the motor and cools it intensively.
In this way, the motor can be kept at a relatively low temperature level, particularly under high
loads.
• Cylinder arrangement in pairs in W-design.

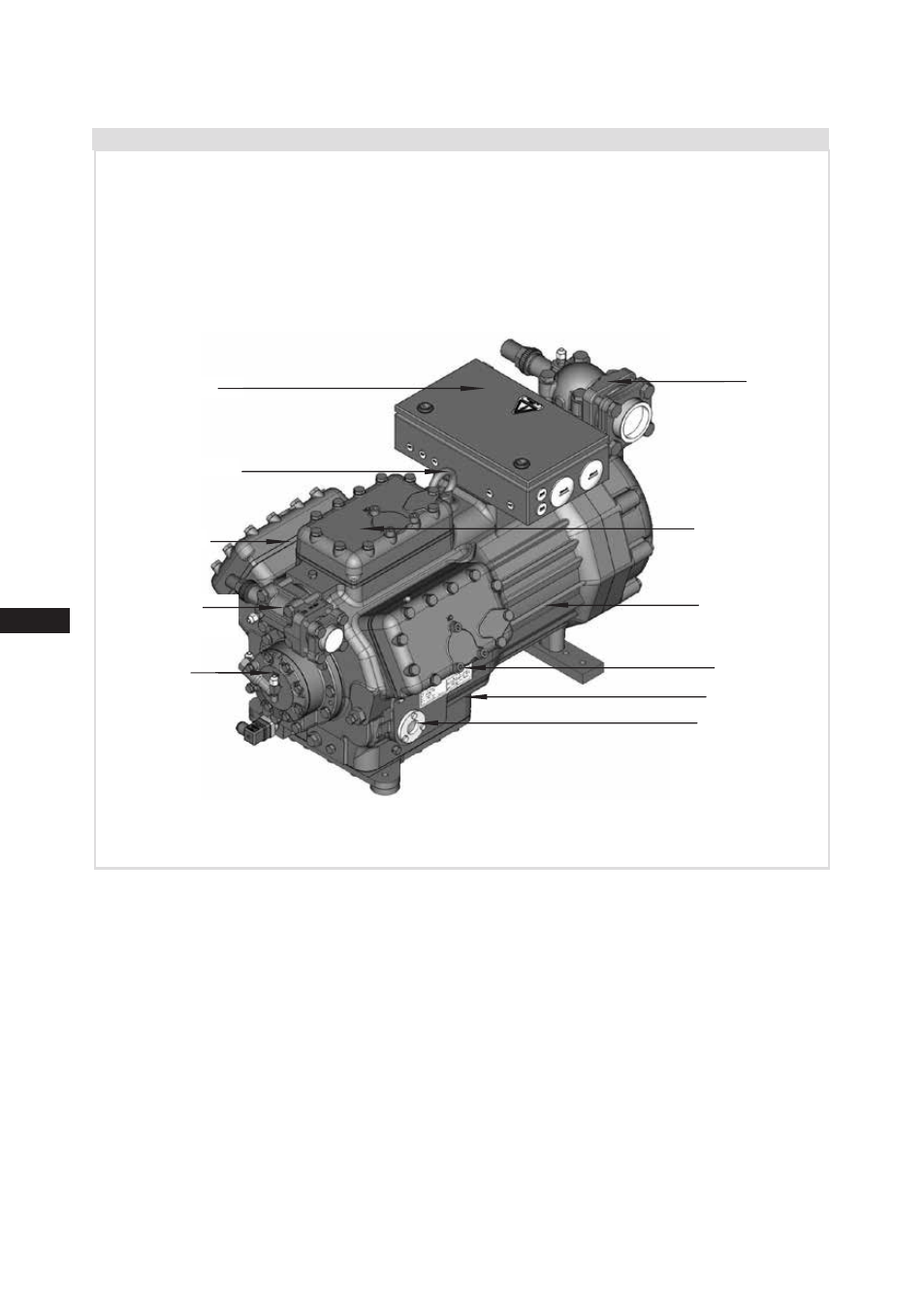

Name plate

Fig. 1

2.1 Short description

Valve plate

Cylinder cover

Terminal box

Dimension and connection values can be found in Chapter 9

Transport eyelet

Discharge
shut-off valve

Oil pump

Suction

shut-off valve

Oil sight glass

Motor section

Drive section
