2| Product description
/
HG 5 945-4 X
Fig. 2

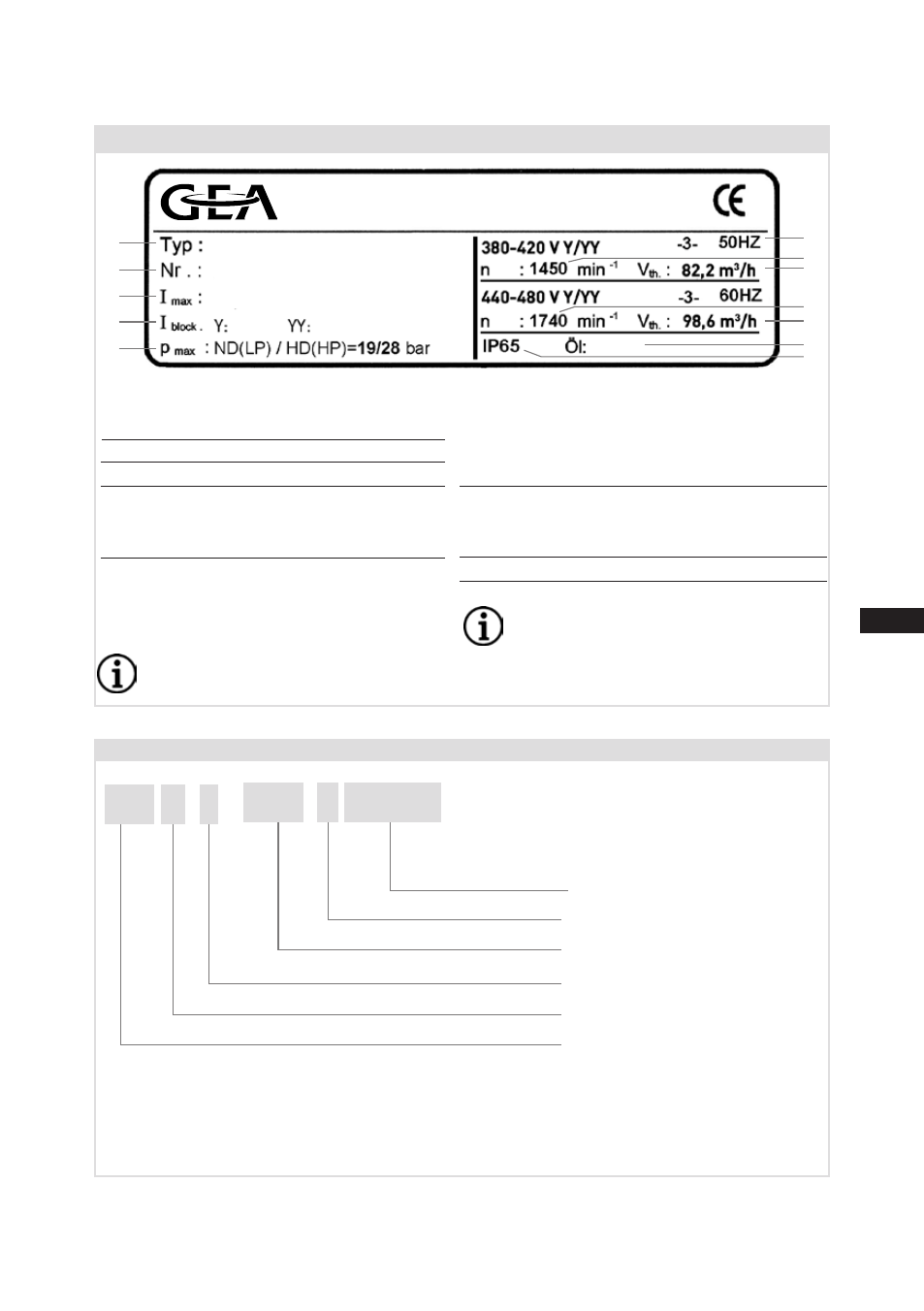

2.2 Name plate (example)
2.3 Type key (example)
¹ ) HG - Hermetic Gas-cooled (suction gas-cooled)
² ) X - Ester oil charge
1
2
3
4
5
6
7
8
9
10
11
12
13
R134a
HGX5/945-4 R134a
AS12345-001
SE 55
33 A
110 A 141 A
Version
Number of poles
Swept volume
Size
Oil charge ²
)
Series ¹ )
1 Type designation 6 Voltage, circuit, frequency
2 Machine number 7 Nominal rotation speed
3 maximum operating current 8 Displacement
4 Starting current (rotor blocked) 9 Voltage, circuit, frequency
Y: Part winding 1 10 Nominal rotation speed
YY: Part windings 1 and 2 11 Displacement
5 ND (LP): max. admissible operating 12 Oil type filled at the factory
pressure (g) Low pressure side 13 Terminal box protection type
HD (HP): max. admissible operating Electrical accessories can change
pressure (g) High pressure side the IP protection class!
Observe the limits of application
diagrams!
50 Hz
}
60 Hz
}
