LUGGIE SCOOTER LABELED
The Luggie scooter is made for mobility challenged and pre-mobility individuals
looking for mobility independence in a comfortable, reliable, easy to maneuver and
easy to maintain scooter. The intended user will need to possess some degree of
ability in the use of his/her arms and hands, reasonable balance and eyesight, and
a degree of spatial mobility. It is also advisable that the user receive training in the
ABOUT YOUR LUGGIE SCOOTER
Note: Your scooter is not designed to transport the user in a moving vehicle i.e.
train or cruise ship. Consult with your Authorized Luggie Dealer or transportation
agent for further details.
The Luggie should be serviced by an Authorized Luggie reseller to ensure safe,
reliable operation. For details and a list of options available for Luggie scooter, refer
to the accessories section of this manual (page 42).

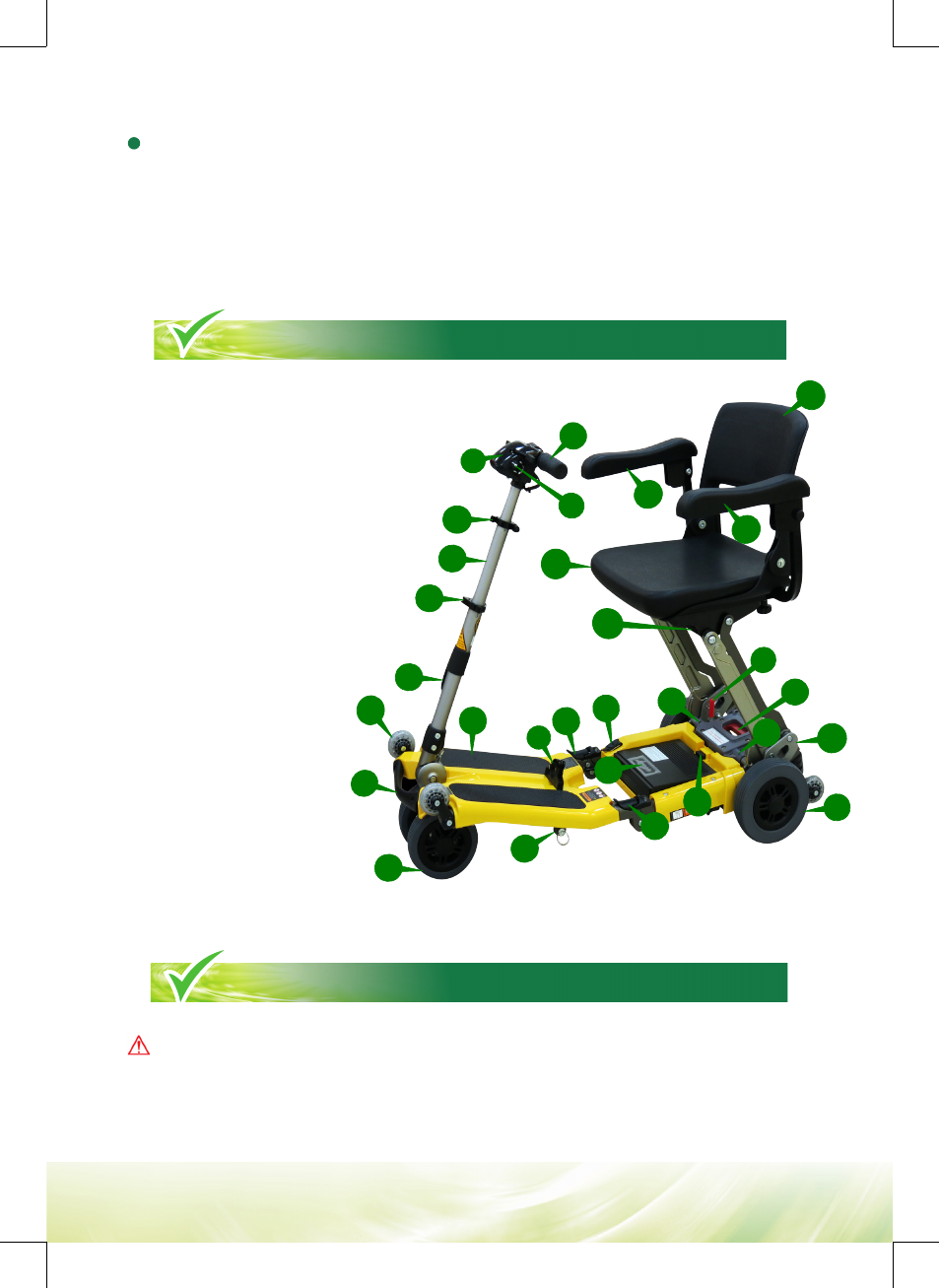

1. Top Console
2. Wig-Wag lever
3. Speed Control Knob
Turtle(slow)
Rabbit(fast)
4. Tiller Adjustment Clamp
5. Tiller
6. Trigger
7. Transport wheel
8. Front Bumper
9. Front Solid Tire
10. Slip Resistant Mat
11. Tiller Locking Clamp
12. Chassis Locking Release Ring
13. Chassis Hook
14. Charging Socket
15. Battery Release Button
16. Lithium Battery
17. Magnetic Brake Release
18. Seat Lock Handle
19. Rear Solid Tire
20. Rear Bumper
21. Seat Lock Indicator
(both red when properly locked)
22. Lifting Handle
23. Base of Seat
24. Armrest
25. Backrest of Seat
