Introduction
• CV/Gate:
Connect Dark Link‘s Gate socket to the gate input of your synthesizer.
Connect Dark Link‘s CV-1 socket to the pitch controlvoltage input of your synthesizer.
At least these two connections are obligatory to run a voltage controlled synthesizer. The additional
three control voltage provided by Dark Link (broken lines) make your voltage controlled synth
”listen” to pitchbender, velocity and modwheel (resp. a MIDI controller of your choice). Please note
that not all voltage controlled sythesizers are equipped with such inputs to handle these additional
voltages.

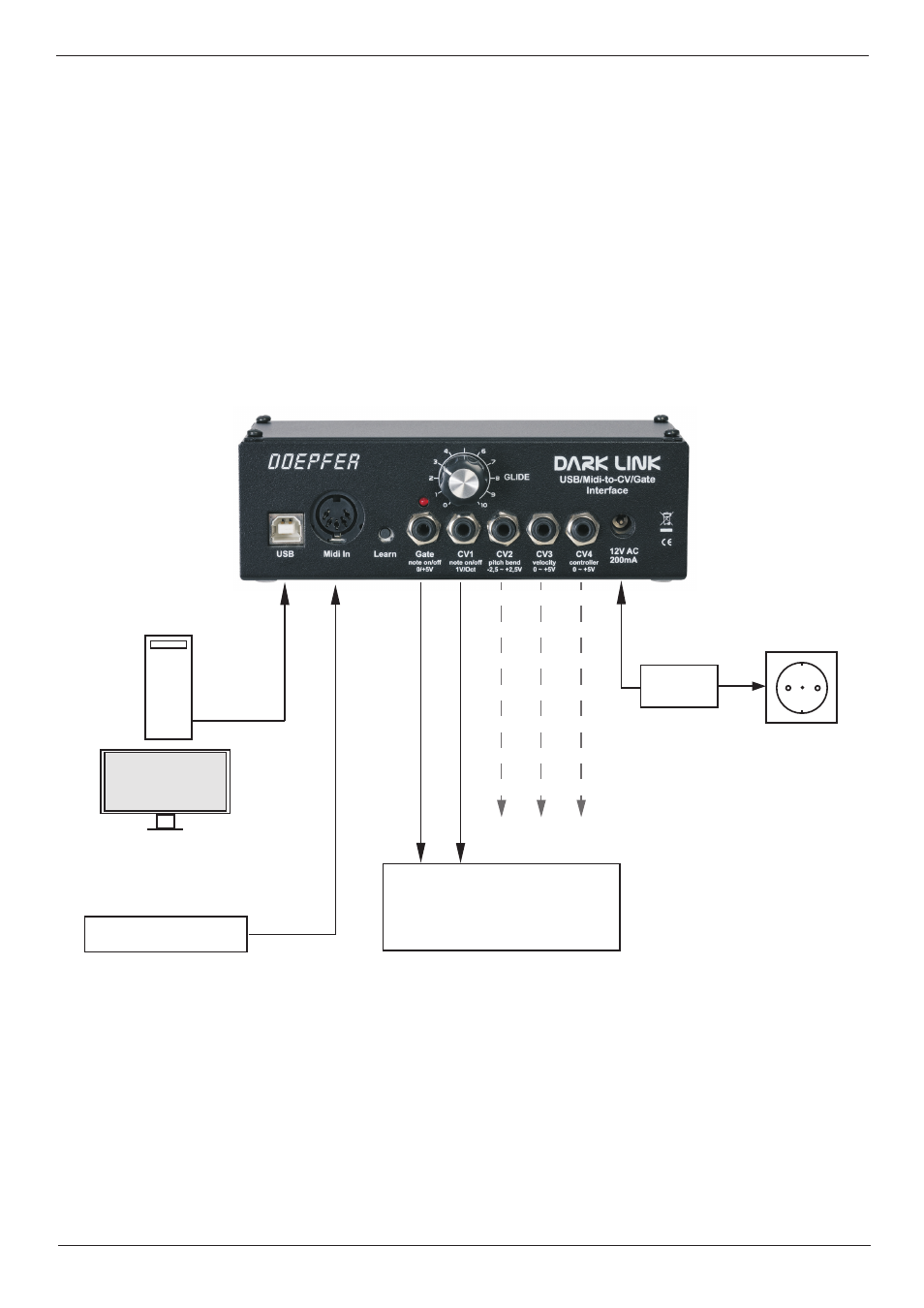

The following pictures shows the most importand connections to and from Dark Link:
MIDI out
Gate in Pitch-CV in
to additional CV-ins
12V AC
200mA
computer
with
software-sequencer
USB
MIDI-keyboard/sequencer
CV/Gate-controlled synthesizer
power-
adaptor
wall-outlet
