Introduction Dark EnerGy DOEPFER
1.2. Preparations
When you first put Dark Energy out of the box, please check if everything is complete. You will find the
following components in the box:
• Dark Energy Synthesizer
• Power adapter 12-15V AC/min. 400mA
• Instrument cabel with 3,5mm and 1/4“ plugs
• USB cabel (A-B type)
• Two A-100 patch cabels
• This owners manual
You will also need:
• A suitable audiosystem (mixer, amplifier, speaker or keyboard amp)
To run Dark Energy via MIDI-DIN socket you will also need:
• A MIDI cable to connect suitable a MIDI controlling device / keyboard / computer and Dark Energy.
• A MIDI-keyboard and / or computer with suitable MIDI sequencer application
To run Dark Energy via CV/Gate connections you will also need:
• At least two 3,5 mm plug patch cabels and a suitable sequencer (e.g. the Doepfer sequencer module
A-155) or a CV/Gate keyboard (e.g. the Doepfer model A-100).
Setup:
Use Dark Energy in a lying or stand up position. Please use a suitable support. The wooden sidepanels can
be dismantled in order to connect two or more units mechnically to one big device. More information on this
can be found later in this manual.
Connections:

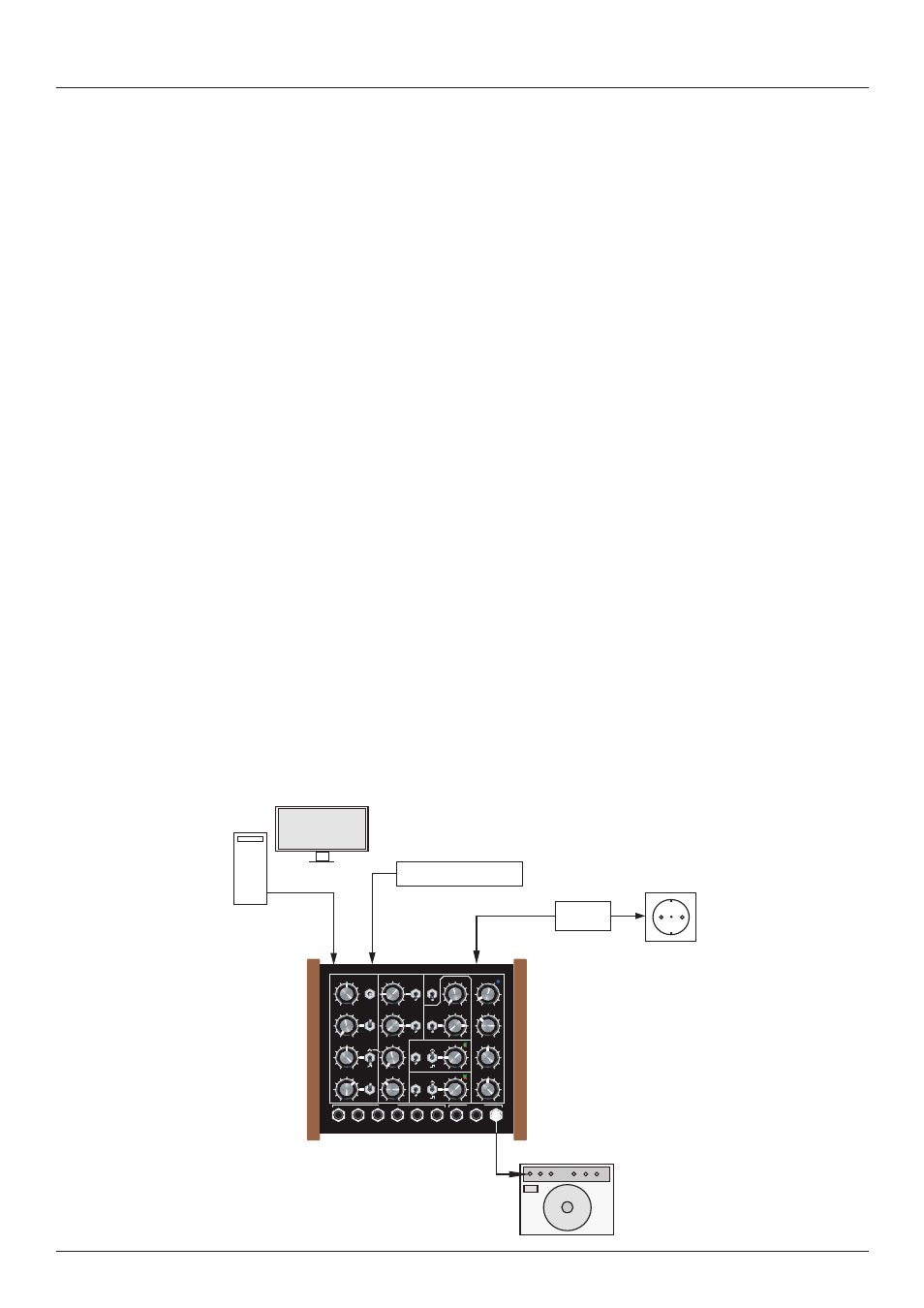

To run Dark Energy, you do not need necessarily all it‘s built in sockets. For a basic setup, you will need just
the ones shown in the picture below. Make use of the additional connection facilities and you will expand
Dark Energy‘s sonic capabilities a lot. They will be described together with the corresponding modules later
on in this manual.
