Install the swashplate into the housing. The slot on the
swashplate must engage the slot guide block on the
displacement control shaft. Use a tool such as a screw-
driver or scribe to hold the guide block in position while
installing the swashplate.
NOTE: As a product improvement, since July 1, 1993 the
BDU-21 thrust bearings for both the motor and pump are
now the same. They are not interchangeable with the old
versions. New housing kits, or new swashplate kits will be
necessary to accomodate new thrust bearings.
Major Repair
Page 18

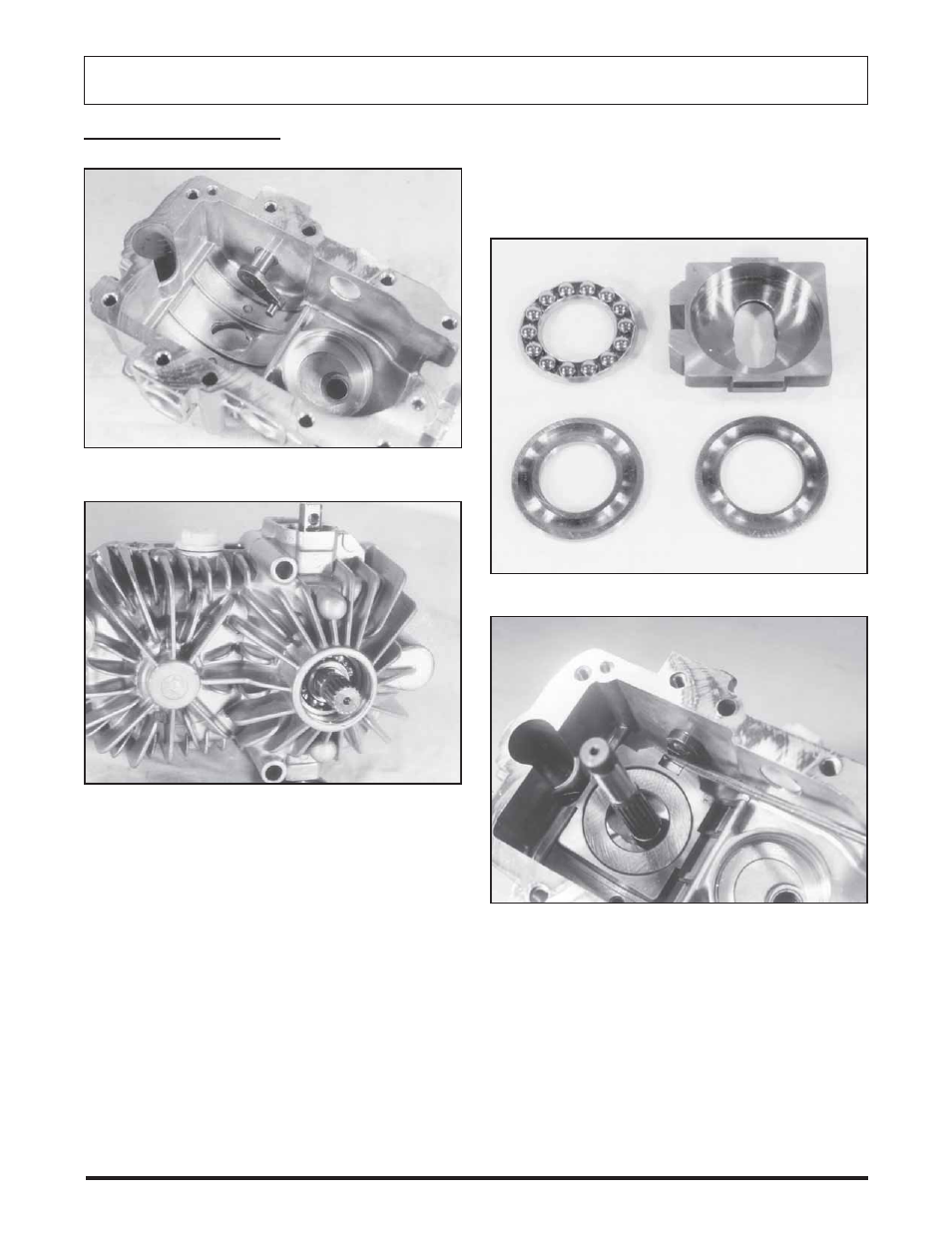

BDU-10 Swashplate Components
BDU-10 Swashplate Installation
BDU-10 Control Arm Installation
BDU-10 Pump Shaft Installation
Assembly Procedures
Install the pump shaft assembly into the housing.
Install the bearing spacer washer.
Install the lip seal and retaining ring as described in the
minor repair section.
Install the cradle bearings. (BDU-10 only)
Install the slot guide block onto the displacement control
shaft.
