Charge Pump
The correct charge pump orientation is determined by the
rotation of the pump shaft (CW or CCW). Before removing
the charge pump, make note of, and/or mark its position to
simplify the reassembly process.
Page 12
Minor Repair

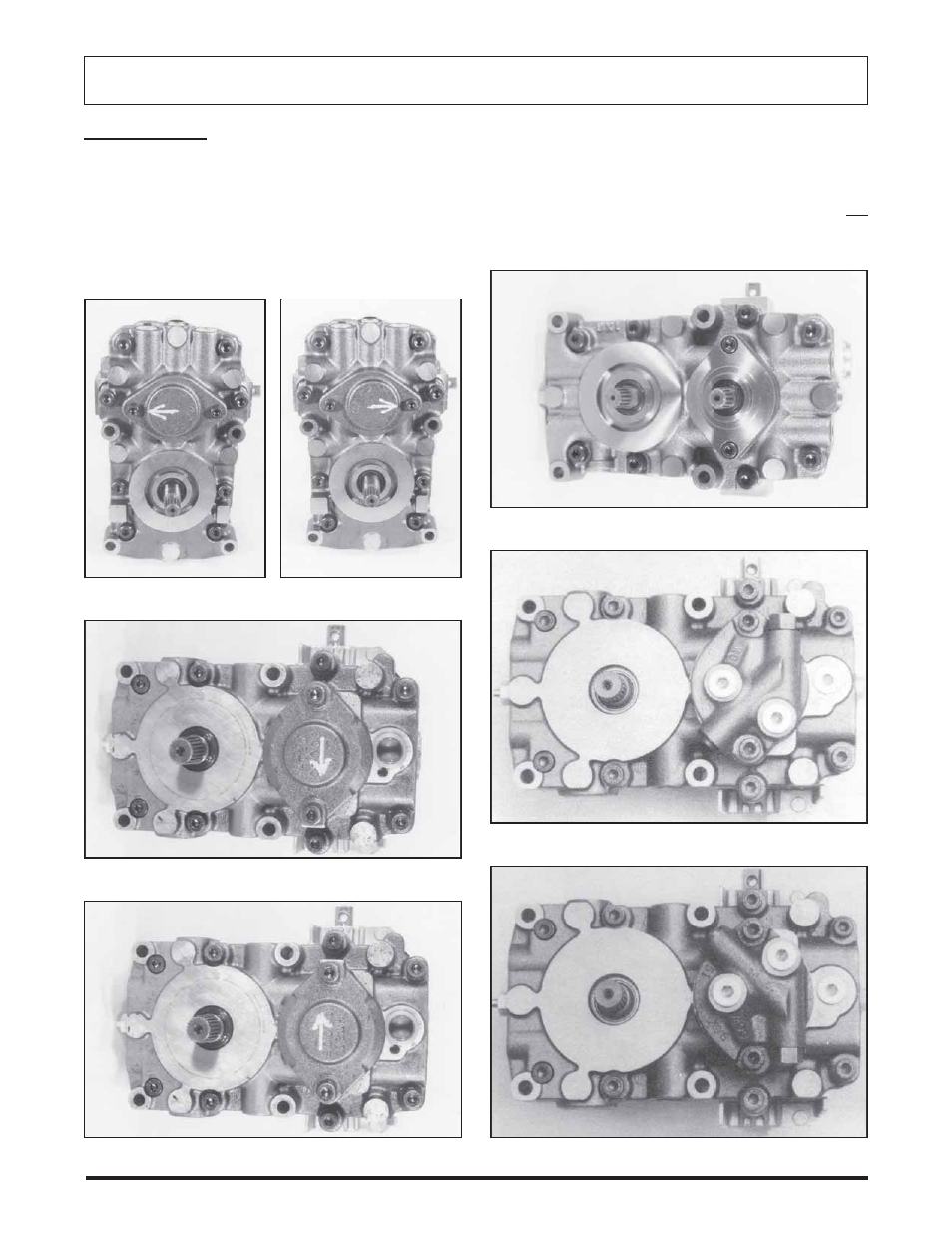

BDU-21L Aux. CCW
BDU-21L CCW
BDU-21L CW
BDU-10L CCW
BDU-10L CW
NOTE: Unlike the BDU-10L, some BDU-21L transmis-
sions have an implement circuit designed into the charge
pump cover. These covers are different and are not
reversible. It is very important that they are reassembled in
the same orientation as they were removed.
BDU-10L With Through Shaft Charge Pump
BDU-21L Aux. CW
