Shaft Seals
Inspect the sealing area on the shaft for rust, wear, or
contamination. Polish the sealing area on the shaft if
necessary.
Wrap the spline or keyed end of the shaft with with a thin
plastic or cellophane to prevent damage to the seal lip
during installation.
Lubricate the new seal with petroleum jelly and slide the
seal over the shaft and press it into the housing bore. Be
careful not to damage the seal.
Install the retaining ring in the housing.
The pump through shaft, motor output shaft and displace-
ment control shaft may be replaced following a similar
procedure as outlined for the pump input shaft seal. These
seals are not held in position by a retaining ring.
Page 10
Minor Repair

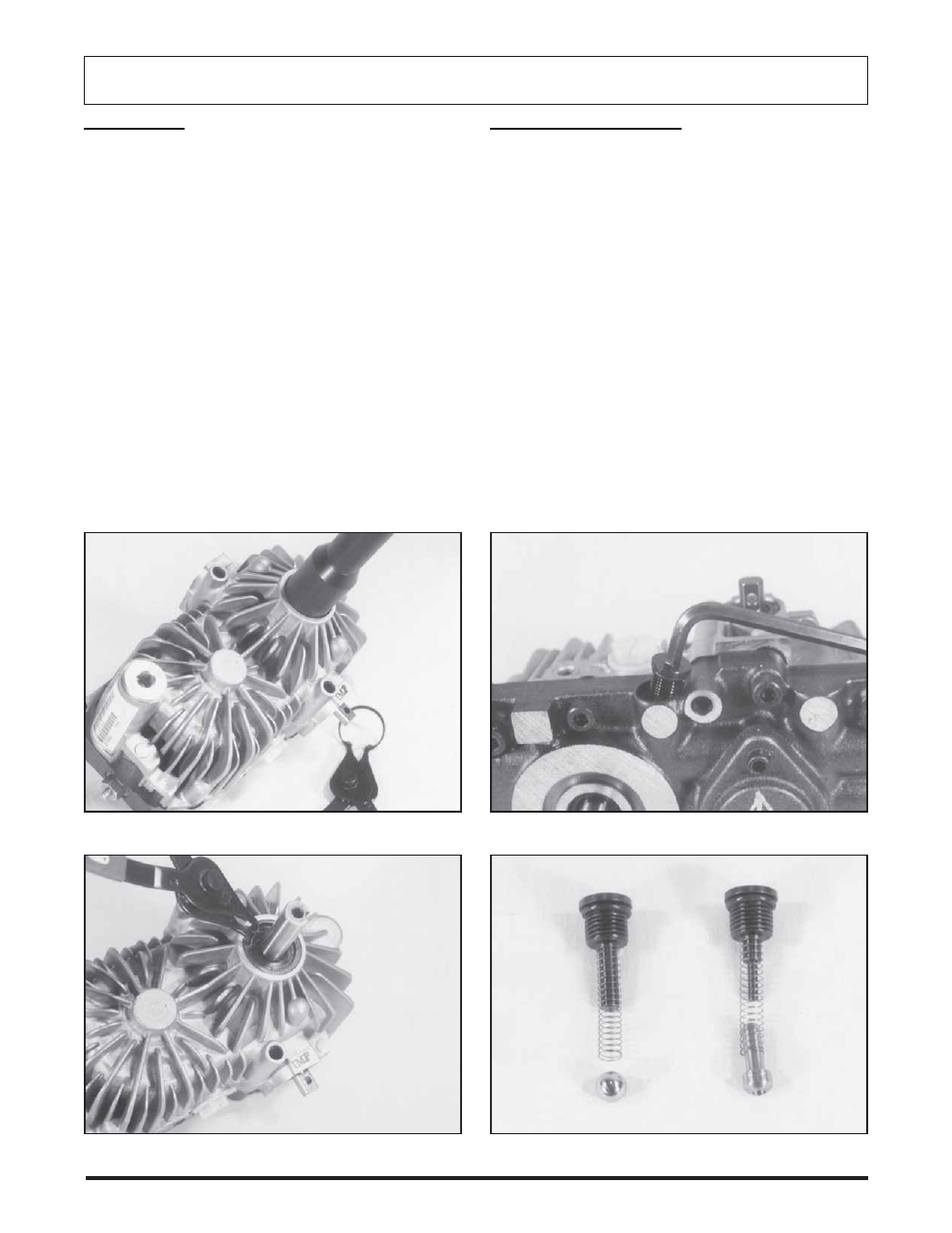

Lip Seal Installation
Retaining Ring Installation Check Valve Options
Charge Check Valves
Remove the check valve plug with a 1/4" internal hex
wrench.
Remove the check valve spring and check ball (or poppet)
from the center section.
CAUTION: Do not allow the check ball to fall into the
closed loop passages in the center section. Removal
may be difficult but can be accomplished with a
magnet, or by removing the plug from the end of the
center section. Do not allow contaminants to be
introduced to the system.
Check Valve Removal/Installation
