Cisco 12404 Internet Router Unpacking Instructions
78-13618-02
Unpacking the Cisco 12404 Internet Router
Unpacking the Cisco 12404 Internet Router
This section explains how to unpack the router from the shipping pallet. Figure 1
shows the main packing material and accessory kit container.

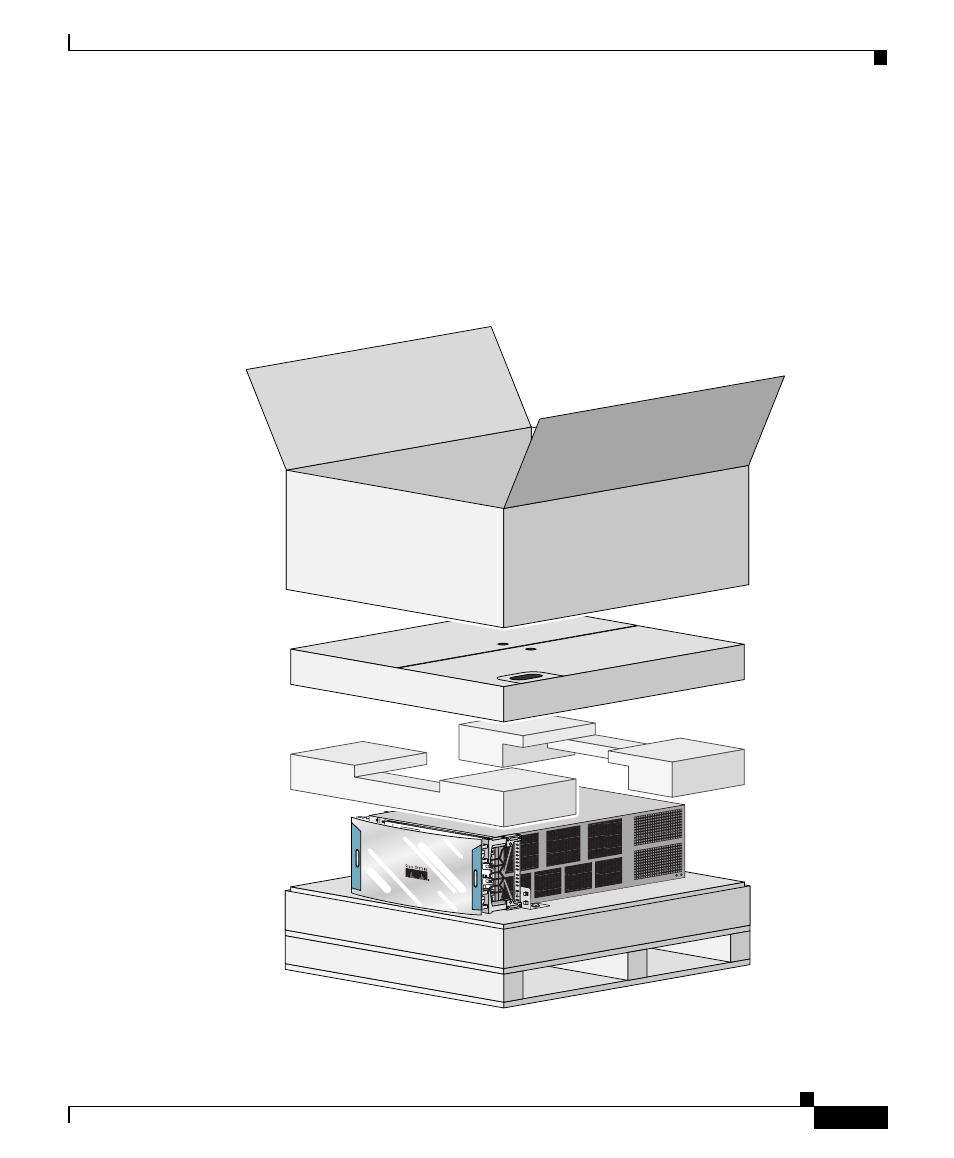

Figure 1 Unpacking the Cisco 12404 Internet Router (Enhanced model
shown)
