61, 65 and 70 Series Vertical Shaft Engines
52
1P70 Autochoke
The 1P70 autochoke uses an air door that functions the
same way as the air vane described earlier.
NOTE: There is no choke linkage in this system,
therefore there is no way to make adjustments for
choke travel.
To remove/replace the air door:
1. Remove the starter and blower housing by following
the steps described in Chapter 6: Starters.
NOTE: The air door is mounted to the underside of
the blower housing. See Figure 4.34.
2. Gently pry open the retaining tabs. See Figure 4.35.
3. Slide the air door rod out of the blower housing. See
Figure 4.36.
NOTE: The air door will fall off when the rod is
removed.

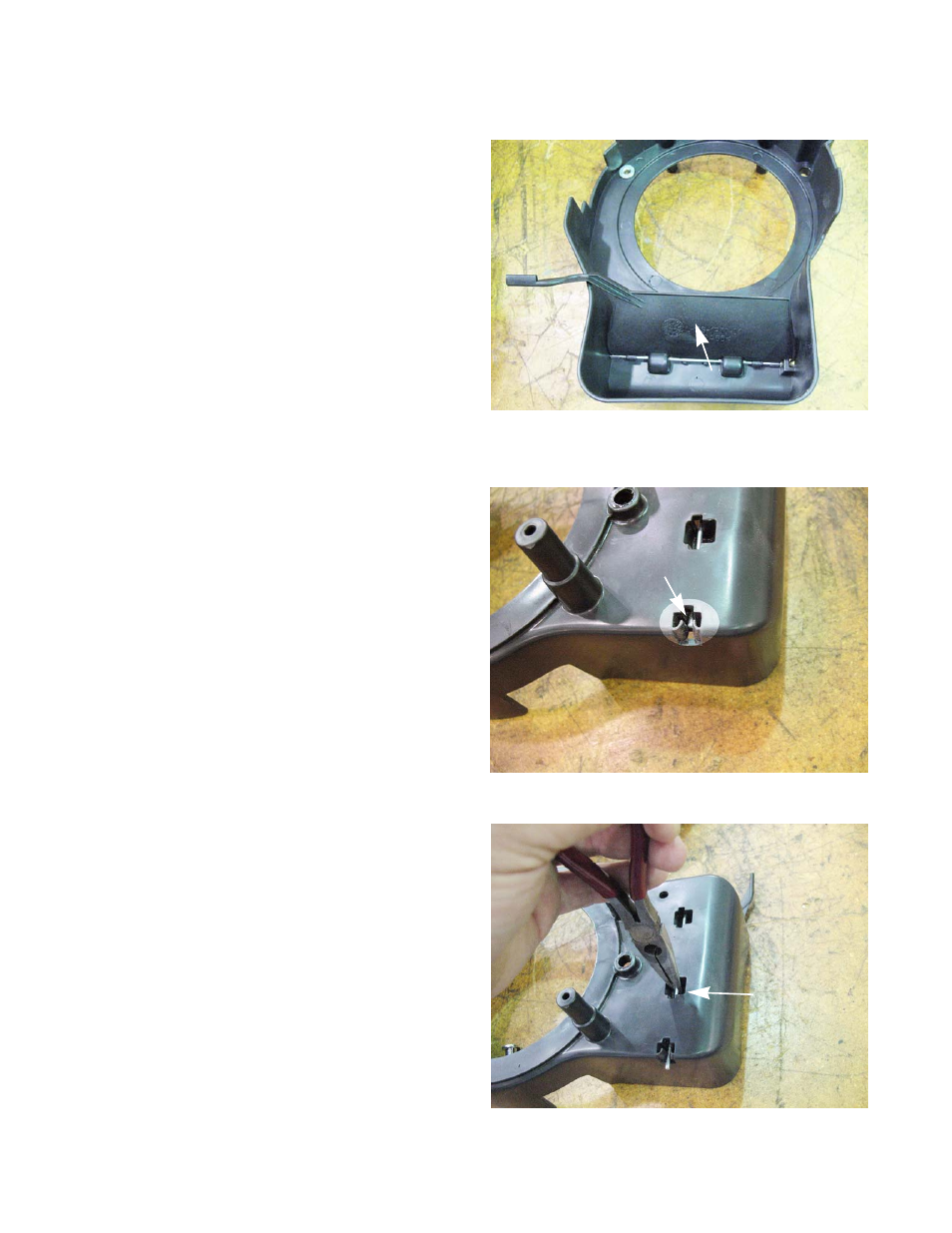

Figure 4.34
Air door
Figure 4.35
Retaining tabs
Figure 4.36
Slide the rod
out of the
blower housing
