Lubricate all lubrication points. 5.
NOTE: We do not recommend the use of a pressure washer or
garden hose to clean your tractor. They may cause damage
to electrical components; spindles; pulleys; bearings; or the
engine. The use of water will result in shortened life and reduce
serviceability.
Removing The Tractor From Storage
Check the engine oil. •
Fully charge the battery and inflate the tires to the •
recommended pressure.
If drained before storing, fill the fuel tank with clean,
•
fresh gasoline.
Add clean, fresh fuel.
•
Start the engine and allow to idle for a few minutes to •
ensure engine is operating properly.
Drive the tractor without a load to make certain all the
•
tractor systems are functioning properly.
Adjustments
WARNING! Shut the engine off, remove the
ignition key and engage the parking brake
before making adjustments. Protect your
hands by using heavy gloves when handling
the blades.

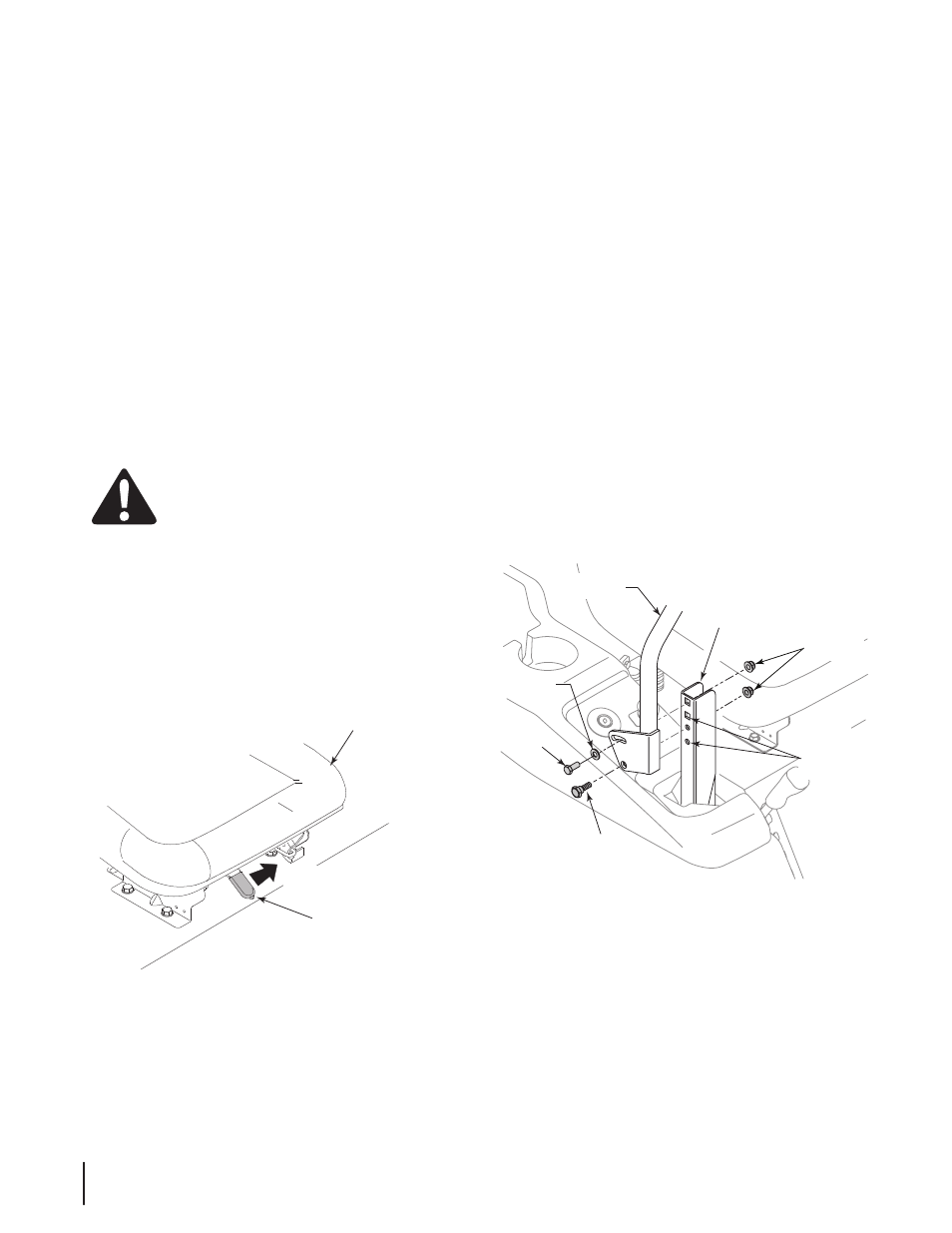

Adjusting the Operators Seat
To adjust the position of the seat, move and hold the •
seat adjustment lever toward the left. Slide the seat
forward or rearward to the desired position; then
release the adjustment lever. Make sure seat is locked
into position before operating the tractor. See Figure
6-5.
Figure 6-5
Adjusting RH & LH Drive Control Levers
The RH and LH drive control levers can be adjusted up or
down and fore-and-aft for the comfort of the operator. The
drive control levers can be placed in either of two height
positions, and/or can be moved forward or rearward
within the range of the slot in each control lever mounting
bracket.
To adjust the drive control lever height, proceed as follows:
Remove the flange lock nut, flat washer, and hex screw •
securing the lever to the pivot bracket.
While supporting the control lever to keep it from
•
falling, remove the hex insert flange lock nut and
shoulder screw from the bottom of the control lever
and pivot bracket. Refer to Figure 6-6.
Reposition the control lever to align with the other set
•
of holes in the pivot bracket and insert the shoulder
screw removed earlier. Fasten with the hex insert flange
lock nut and tighten until snug.
Insert the hex screw w/washer through the control
•
lever slot and the pivot bracket. Thread the flange lock
nut onto the screw, but do not tighten now.
If you are going to adjust the control levers forward or
•
rearward, proceed to the next step. If not, fully tighten
the flange lock nut.
Figure 6-6
To adjust the drive control levers forward or rearward,
proceed as follows:
If not already loose, loosen the flange lock nut and rotate
the control lever either forward or rearward to the desired
position. See Figure 6-6.
NOTE: If the control lever is too tight to move, slightly loosen
the hex insert flange lock nut and shoulder screw at the
bottom of the control lever.
Adjustment
Seat
Lever
Move Lever
to Left
Pivot Bracket
Flat Washer
Shoulder
Screw
Hex Screw
Control Lever
Height
Adjust
Holes
Flange
Lock Nut
