11

s

ectiOn

4 — c

OntrOls

and

f

eatures

Each lever controls the respective RH or LH transmission.

Consequently, these levers control all of the movements

of the tractor. Driving and steering utilizing these control

levers is quite different from conventional tractors, and

will take some practice to master. Refer to Operation for

instructions on using the control levers.

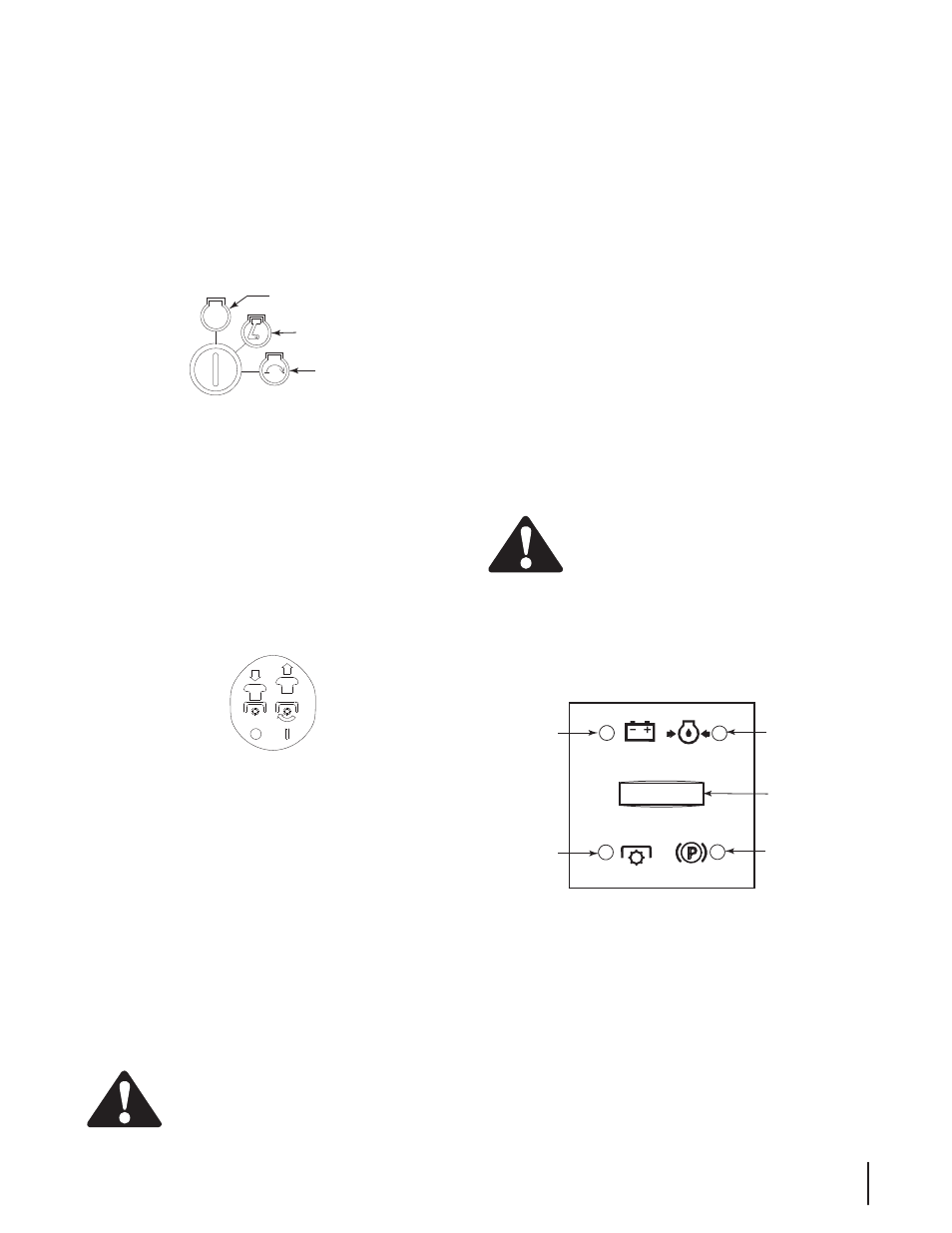

D. Ignition Switch

The ignition switch is located on the RH console to the

right of the operator’s seat. The ignition switch has three

positions as follows:

Figure 4-2

OFF - The engine and electrical system is turned off.
ON - The tractor electrical system is energized.
START - The starter motor will turn over the engine. Release

the key immediately when the engine starts
NOTE

:

To prevent accidental starting and/or battery

discharge, remove the key from the ignition switch when the

tractor is not in use.

E. Power Take-Off (PTO) Switch

The PTO switch is located on the RH console to the right of

the operator’s seat.

Figure 4-3

The PTO switch operates the electric PTO clutch mounted

on the bottom of the engine crankshaft. Pull the switch

knob upward to engage the PTO clutch, or push the knob

downward to disengage the clutch.
The PTO switch must be in the “disengaged” position when

starting the engine.

F. Transmission Bypass Rods (Not Visible)

The transmission bypass rods (one for each the RH and LH

transmission) are located beneath the frame platform, just

inside each rear wheel.
When engaged, the two rods open a bypass within the

hydrostatic transmissions, which allows the tractor to be

pushed short distances by hand. Refer to Maintenance &

Adjustments for instructions on using the bypass feature.

CAUTION: Never tow your tractor. Towing

the tractor with the rear wheels on the

ground may cause severe damage to the

transmissions.

STOP

OFF

ON

START

G. Cup Holder

The cup holder is located toward the rear of the RH console

to the right of the operator’s seat.

H. Storage Tray

The storage tray is located at the rear of the RH console.

J. Seat Adjustment Lever (Not Seen)

The seat adjustment lever is located below the front/left

of the seat. The lever allows for adjustment of the fore to

aft position of the operator’s seat. Refer to Maintenance

& Adjustments for instructions on adjusting the seat

position.

K. Fuel Tank Cap

The fuel tank cap is located near the middle of the LH

console. Turn the fill cap approximately 1/4 turn and pull

upward to remove. The fuel cap is tethered to the tractor to
prevent its loss. Do not attempt to remove the cap from the tractor.

Push the cap downward on the fuel tank fill neck and

turn approximately 1/4 turn clockwise to tighten Always

re-install the fuel cap tightly onto the fuel tank after

removing.

WARNING!: Never fill the fuel tank when the

engine is running. If the engine is hot from

recently running, allow to cool for several

minutes before refueling. Highly flammable

gasoline could splash onto the engine and

cause a fire.

L. Hour Meter / Indicator Panel

The hour meter/indicator panel is located on the LH

console to the left of the operator’s seat.

Figure 4-4

Hour Meter Features
The hour meter records the hours that the tractor has been

operated in the digital display (tenths of an hour - right

most digit).
NOTE

:

The hour meter is activated whenever the ignition

switch is turned to the “ON” position. Keep a record of

the actual hours of operation to assure all maintenance

procedures are completed according to the instructions in this

manual and the engine manual.

Battery

Indicator

PTO

Engaged

Indicator

Parking Brake

Engaged

Indicator

Oil Pressure

Indicator

Hour Meter
