Controls and Features
4
10

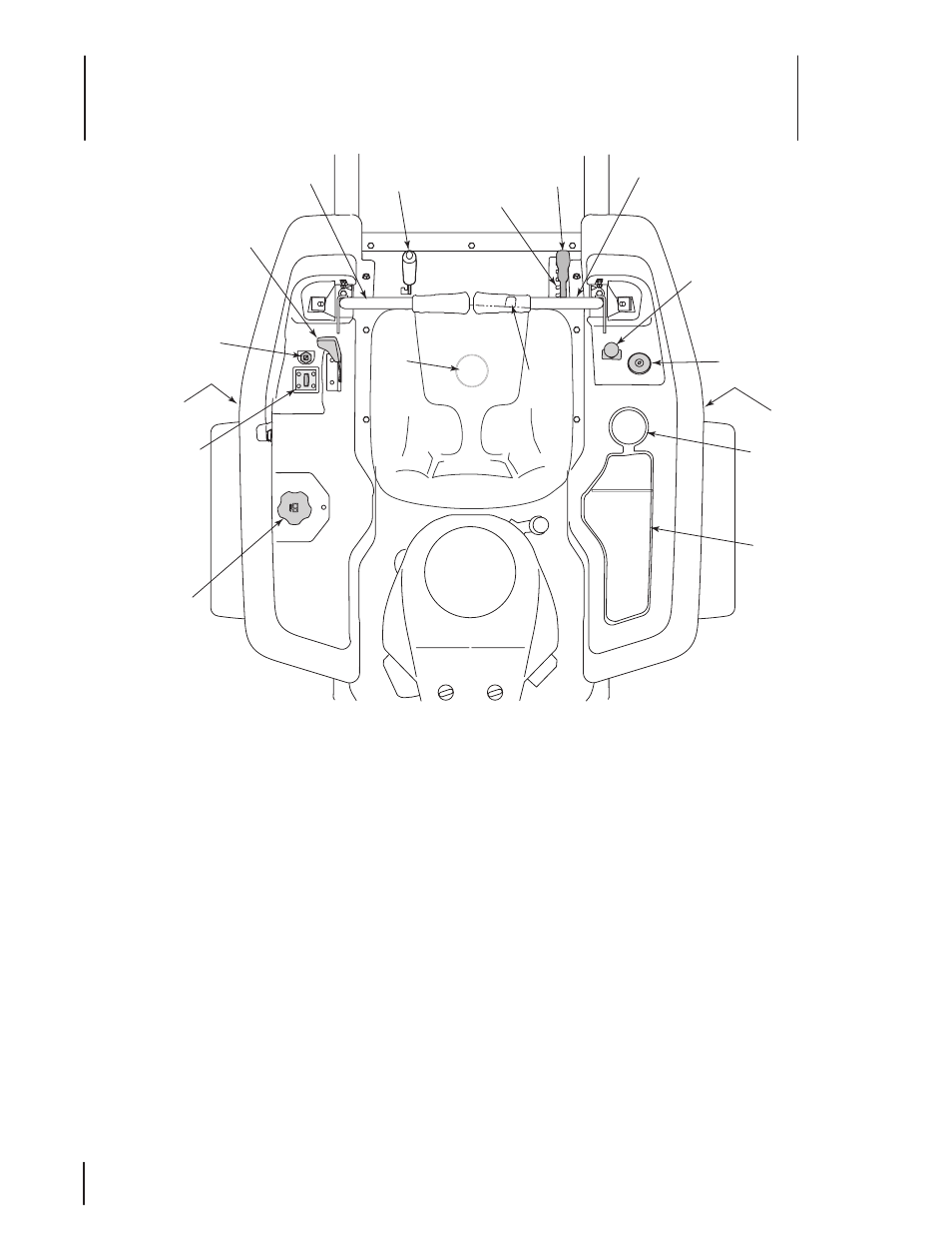

Figure 4-1
Deck Height Index A.
Deck Lift Handle B.
RH and LH Drive Control Levers C.
Ignition Switch D.
PTO Switch E.
Transmission Bypass Rod (Not Shown) F.
Cup Holder G.
Storage Tray H.
Seat Adjustment Lever (Not Visible) J.
Fuel Tank Cap K.
Hour Meter/Indicator Panel L.
Throttle Control M.
Choke Control N.
Parking Brake Engagement Lever O.
Trans. Oil Expansion Reservoir P.
NOTE: References to LEFT, RIGHT, FRONT, and REAR indicate
that position on the tractor when facing forward while seated
in the operator’s seat.
A. Deck Height Index
The deck height index consists of six index notches
located on the front/right of the seat box frame. Each
notch corresponds to a 1/2 inch change in the deck height
position ranging from 1-1/2 inches at the lowest notch to 4
inches at the highest notch.
B. Deck Lift Handle
The deck lift handle is located on the front/right of the seat
box frame, and is used to raise and lower the mower deck.
Pull the handle to the left out of the index notch and push
downward to lower the deck, or pull upward to raise the
deck. When the desired height is attained, move the lift
handle to the right until fully in the index notch.
C. RH and LH Drive Control Levers
The RH and LH control levers are located on each side of
the operator’s seat. These hinged levers pivot outward
to open space to permit the operator to either sit in the
tractor seat, or to dismount the tractor. The levers must be
fully opened out and in the neutral position to start the
tractor engine.
A
B
C
C
D
E
F
F
G
H
J
K
L
M
N
O
P
