5-3
5. NAMES AND FUNCTIONS OF COMPONENTS
Ex2900 / 3200 Operator's Manual
(1) Fuel Gauge
This gauge indicates level of fuel in the fuel tank.
(2) Tachometer
This meter indicates the current engine speed in
increments of 100 rpm.
(3) Engine Coolant Temperature Gauge
This gauge indicates the current engine coolant
temperature.
IMPORTANT:
●If the pointer of the engine coolant temperature
gauge is in the red zone or the reading is rapidly
increasing, immediately decrease the load of the
tractor. To lower the coolant temperature, run the
engine at idle until the reading on the gauge falls in
the green zone.
Next, shut down the engine. Allow it to cool off, and
only then, check the following points.
(1) The coolant water level in the radiator and sub-
tank is adequate.
(2) The radiator and radiator screen are free from
dust deposition.
(3) The fan belt is correctly tensioned.
For more details about the maintenance
procedure, refer to the PERIODIC SERVICE
section.
●If the pointer of the engine coolant temperature
gauge enters the red zone again or the reading
rapidly increases again, stop the engine and
immediately contact your local Cub Cadet Yanmar
dealer for technical assistance.
(4) Engine Oil Pressure Warning Light
This light remains lit when the starter key switch is in
the ON position and the engine is OFF.
IMPORTANT:
●If this light illuminates while the engine is running,
the engine oil pressure is too low. Immediately shut
down the engine and contact your local Cub Cadet
Yanmar dealer for technical assistance.
(5) Parking Indicator Light
This light illuminates when the parking brake is
engaged securely.
NOTE:
●Remember that even if the parking brake lever is in
the “LOCKED” position, the parking brake itself
may not be engaged.
(6) Alternator / Battery Charging Light
This light remains lit when the starter key switch is in
the ON position and the engine is OFF.
IMPORTANT:
●If this light illuminates while the engine is running,
the power generated by the alternator is too low.
Fully push the throttle control lever forward and
increase the engine speed.
●If the light still remains lit, immediately shut down
the engine and contact your local Cub Cadet
Yanmar dealer for technical assistance.
(7) Hour Meter
This meter indicates the total accumulated operating
hours. This indication is based on the assumption
that the engine runs at a speed of 2600 rpm.

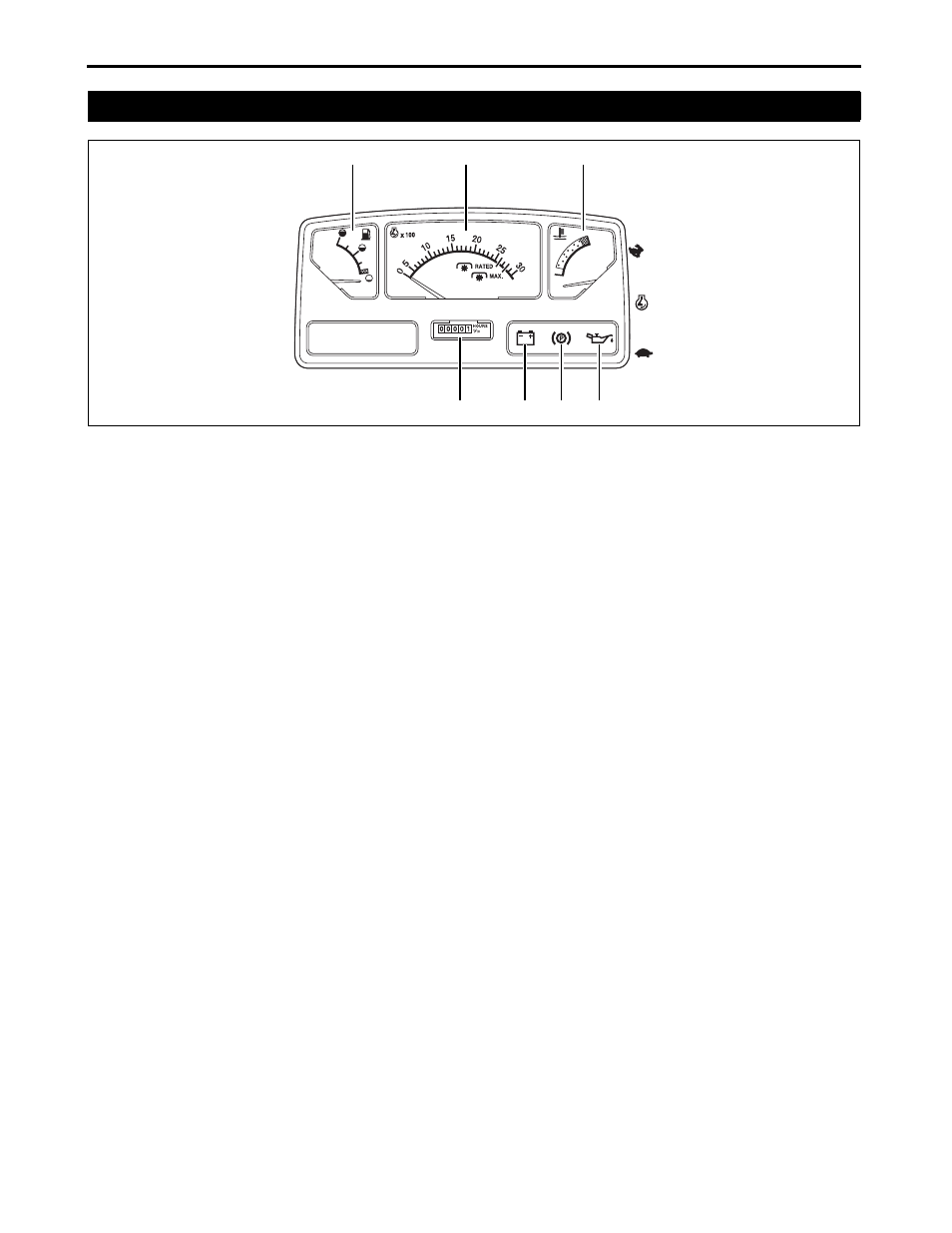

3. Instrument Panel, Switches and Hand Controls
3013723
(7)
(2) (3)
(6) (4)
(1)
(5)
