6.8. Remove the mounting cap. See Figure 6.8.
6.9. Disconnect the barrel end of the cable by align-
ing the cable with the slot on the control lever
and sliding it out. See Figure 6.9.
6.10. Slide cable out of the cable ties on the handle
bar and discard.
NOTE: If the control lever needs repair take the
lower handle cover off and replace the control
lever. See Figure 6.10.
6.11. Reinstall in reverse order.
6.12. To adjust the traction control, turn the thumb
wheel in the control handle. See Figure 6.12.
6.13. Adjust the cable so that:
• The wheels drive with sufficient force when the
handle is squeezed.
• It takes reasonable effort to squeeze the lever.
• The wheels disengage completely when handle
is released.

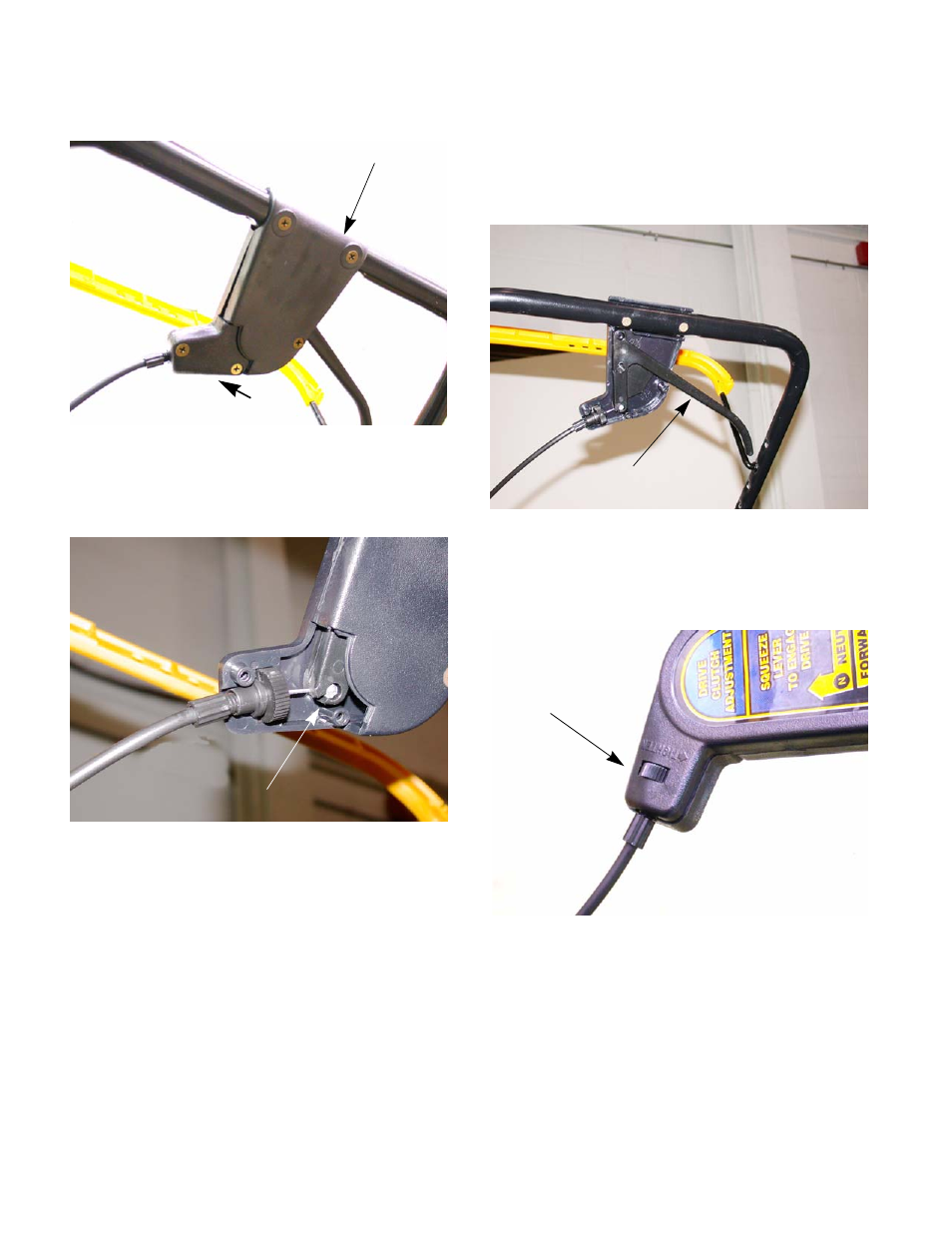

Figure 6.8
Lower handle cover
Mounting cap
Figure 6.9
Slot
Align cable with slot
and slide it out
Figure 6.10
control lever
Figure 6.12
Thumb wheel
