8. Attach the positive lead of a DVOM to the posi-
tive (smaller) tab of the indicator. See Figure
2.40.
9. Attach the negative lead of the DVOM to the
negative post of the battery pack.
10. Set the DVOM to the DC volts scale and place it
close to the indicator so that both can be seen at
the same time.
11. Slowly turn the variable resistor and note the
reading on the DVOM when the different LEDs
light up or go out. See Figure 2.41.

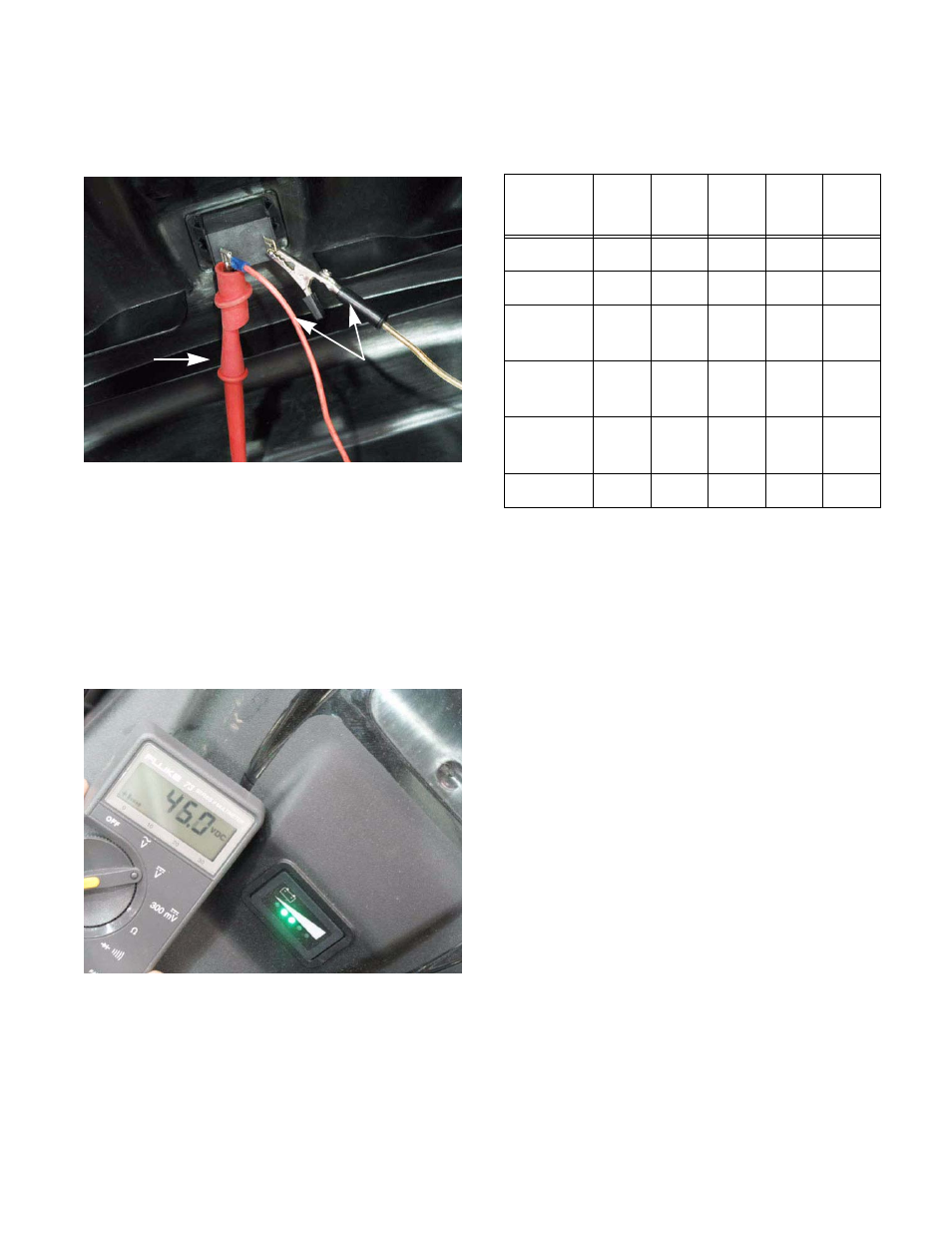

Figure 2.40
Tester leads
Positive lead of
DVOM
Figure 2.41
Monitor LEDs and DVOM
12. Compare the results to Table 2.
NOTE: If the results do not match the above
table, replace the indicator. If they do match the
above results, check the harness.
Returning to service
After diagnosing and repairing any fault in an electrical
circuit and any other repairs needed, the following
steps should be taken:
1. Test run the machine to verify that the condition
has been fix.
2. Cycle the circuit at least ten times.
3. Allow the machine to cool down for a couple of
hours.
4. Re-test the machine to verify the condition does
not re-appear.
5. If the condition does not re-appear, return the
machine back to service.
Table 2:
LED
operation
LED
1
LED
2
LED
3
LED
4
LED
5
Voltage green green green green red
52 - 47.9 ON ON ON ON OFF
47.9-
46.7 OFF ON ON ON OFF
46.7-
45.2 OFF OFF ON ON OFF
45.2-
40.4 OFF OFF OFF ON OFF
40.4-28 OFF OFF OFF OFF ON
