4/8/16-CH DVR Quick Start Guide
3

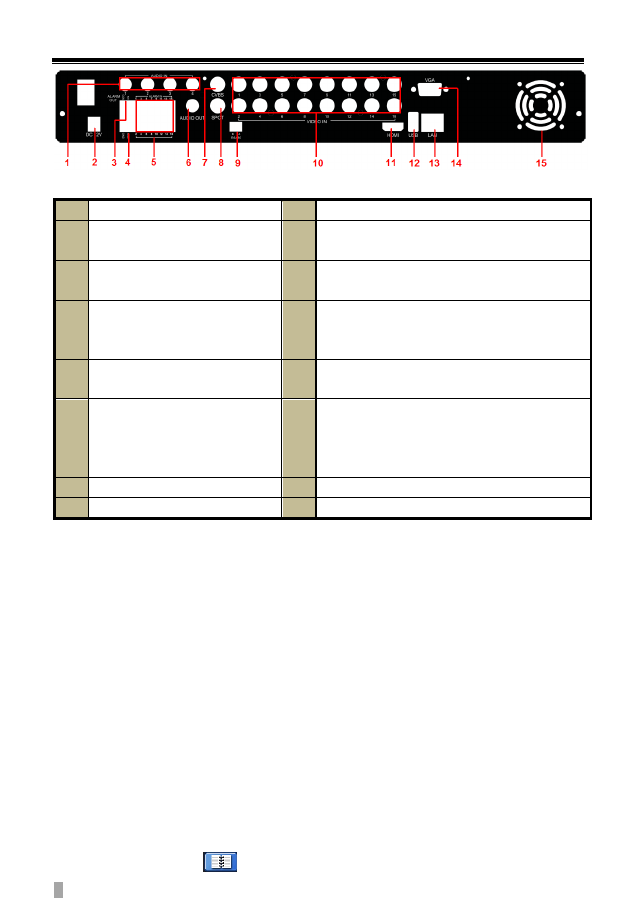

Rear Panel Instruction for 16-CH
1
4-ch audio inputs
2
Power input
3
1-ch relay output. Connect
to external alarm.
4
Grounding
5
Connect to external
sensor1-16
6
Audio output, connect to the sound box
7
CVBS video signal output
8
Connect to monitor as an AUX output
channel by channel. Video would be
displayed without OSD.
9
Connect to keyboard or
speed dome
10
Video input channels from 1-16
11 Connect to high-definition
display device 12
To connect external USB devices like
USB flash, USB HDD for backup or
update firmware; or connect to USB
mouse
13
Network port
14
VGA output, connect to monitor
15
For cooling the device
3. Startup & Shutdown
3.1 Startup
Step1: Connect to cameras and monitor.
Step2: Connect with the source power.
Step3: The device will boot and the power indicator will turn blue.
Step4: A WIZZARD window will pop up.
3.2 Shutdown
You can shut down the device by using IR remote controller and mouse.
By IR remote controller:
Step1: Press Power button. This will bring up a shutdown window. The unit will
shut down by clicking “OK” button.
Step2: Disconnect the power.
By mouse:
Step1: Enter into
Menu and select “Shut Down” icon. This will take you
