4/8/16-CH DVR Quick Start Guide
2
1
4-ch audio inputs
2
Power input
3 1-ch relay output. Connect
to external alarm. 4
Grounding
5
Connect to external sensor
1-4
6
Audio output, connect to the sound box
7
CVBS video signal output
8
Connect to monitor as an AUX output
channel by channel. Video would be
displayed without OSD.
9
Connect to keyboard or
speed dome
10
Video input channels from 1-4
11
Connect to high-definition
display device
12
To connect external USB devices like
USB flash, USB HDD for backup or
update firmware; or connect to USB
mouse
13
Network port
14
VGA output, connect to monitor
15
For cooling the device

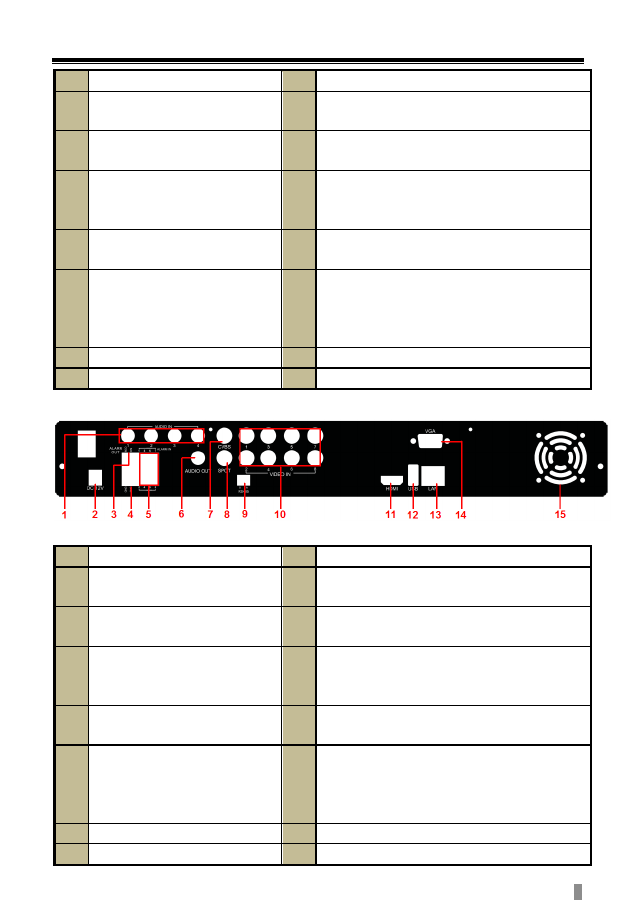

Rear Panel Instruction for 8-CH
1
4-ch audio inputs
2
Power input
3 1-ch relay output. Connect
to external alarm. 4
Grounding
5
Connect to external sensor
1-8
6
Audio output, connect to the sound box
7
CVBS video signal output
8
Connect to monitor as an AUX output
channel by channel. Video would be
displayed without OSD.
9 Connect to keyboard or
speed dome 10
Video input channels from 1-8
11 Connect to high-definition
display device 12
To connect external USB devices like
USB flash, USB HDD for backup or
update firmware; or connect to USB
mouse
13
Network port
14
VGA output, connect to monitor
15
For cooling the device
