3. Motion Detection Area Setup:
(1) Press ˪ İII ˫button to edit detection block.
Q Mode
CELL EDIT Single detection cell setup (detection/ non-detection)
DEL BLOCK Disable a block
DEL ALL Delete all cells
ADD BLOCK Enable a block
ADD ALL Enable all cells
(2) Press ˪ İII ˫button to switch cursor to edit mode (cursor color is pink). Press
˪
//İ˫button, follow step (1) to change the size of the detection block.
(3) Detection area is shown by color red, press ˪Enter˫to enable/ disable the
detection block.

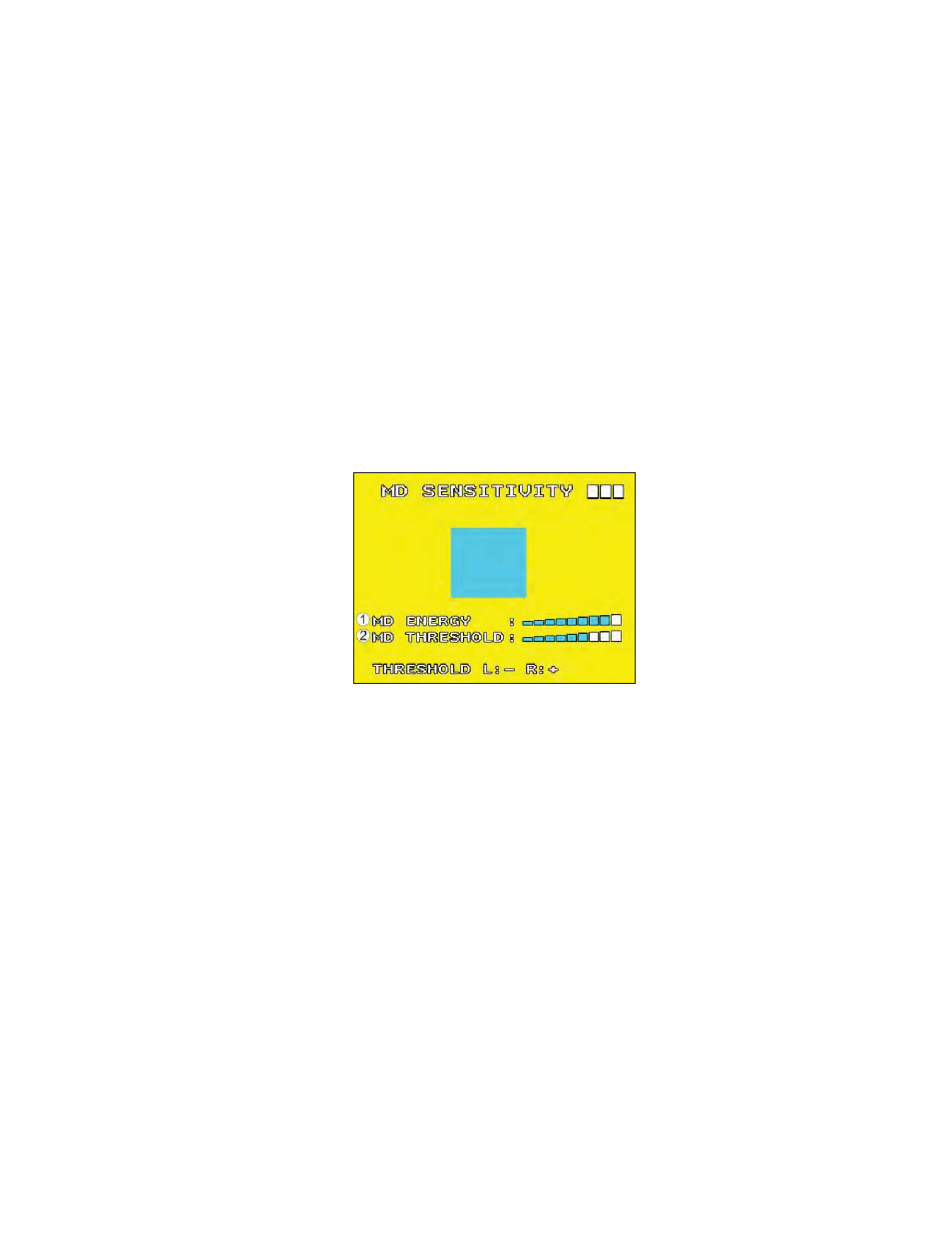

4. Motion Detection Sensitivity Setup:
Changing the alert value may affect the recording sensitivity of the Motion Detection.
M MD ENERGY 烉Reveals current sensitivity rate (
NOTE 1 ). !
N MD THRESHOLD 烉Reveals user sensitivity rate setup. Press˪˫or˪˫
button, to change the motion detection threshold level
(
NOTE 2 ). !
(NOTE 1: Motion detection is triggered when MD ENERGY level exceeds MD THRESHOLD level
(red block).
(NOTE 2: The red cells reveals the setup made by the user.
