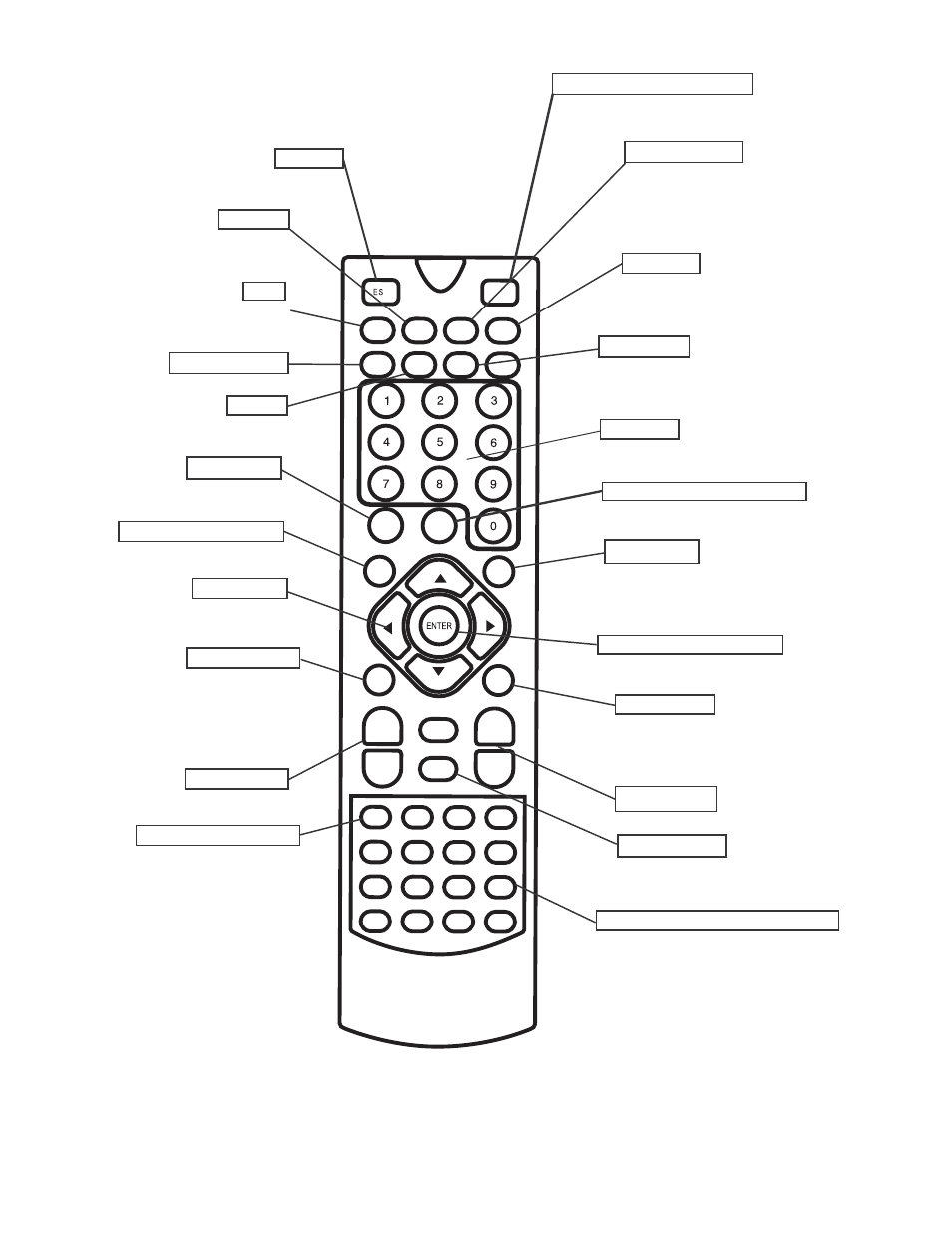

Remote Control Functions
Call Camera:
As a Factory Default the PTZ is set to:
PELCO-D / 2400BPS / ID:01
Press
[CAM] + [ 1 ]
to get control of the PTZ
P/T Control:
Move UP / DOWN / LEFT / RIGHT
Speed Control:
It Adjusts the Speed of your PTZ
Press [SPEED] and any number from
1-63 ( remmber to use [-/--] button when using
double digits numbers.
Focus Button
Shorcut for P/T Speed.
S1 - SLOW
S2-S3 - MEDIUM
S4- FAST
O
F
U
C
+
S
O
F
U
C
-
S
O
Z
M
O -
O
Z
M
O +
O
F
+
S
R
I
S
I
L
C S
O E
P
O
N
E
/
-
-
-
E
S
U
T P
I
D P
S
C
A
B
E
C
O
H
E
M
U
R N
A
P
T
T
R
E N
R
P
E
S T
H
S
T
O
A
C M
E
D
E
L
E
T
4
F
1
P
1
S
5
P
P
S
E
E D
U
A
O
T
4
S
3
S
2
S
3
F
2
F
1
F
4
P
8
P
3
P
2
P
7
P
6
P
Calls preset positions:
i.e: Press [ SHOT ] + [ 1 ] for preset 1.
Backspace:
Backspace for when inputting numbers
RUN PATTERN:
START and STOP the Pattern Motion
HOME:
used to save preset position on A and B.
press [PRESET] for 3 sec. + [HOME].
PRESET:
To save a Preset position,
press this button for 3sec. until shows
[SET----], input a number and press [ ENTER]
DISP:
Selects different displays on Remote receiver
Return:
Return to ID address display
the receiver display will show [A00...]
Button for over 10 numbers:
For address over 10, press [-/--] before any other number.
i.e if you want to call the
ID 14 simply press [CAM]+[-/--]+[14] .
ENTER / Confirm Button:
Use this Button to confirm Save/ Clear Presets.
AUTO SCAN:
Scans from position A to B
Set the Positions A and B and press [AUTO]
use [ENTER] butto to quit SCAN.
Digital Zoom
Optical Zoom
PRESET POSITIONS SHORTCUT
Numbers:
Used when Calling / Setting presets or
calling cameras
SET PATTERN:
Press for 3sec. and wait until shows [ PsTa]
input the preset position and press enter
then press for 3sec. until shows [PsTo]
input a preset position and press enter
press [ RUN ] to start /stop pattern
DELETE:
Press this button for 3s until it shows [ CLr---] and
then press the preset number to be Erased and
Press [ENTER] to confirm.
A/B Button:
These buttons are for Pan Scan function.
Press [PRESET] for 3sec. and [A] (for left position)and
[PRESET] for 3sec. and [B] (for Right Position)
Protocol / Baudrate
SETUP:
Setup the Receiver Protocol and Baudrate
Press this button for 3s and use [UP]/[DOWN] to change protocol and
[LEFT]/[RIGHT] to change Baudrate and [ENTER] to save.
