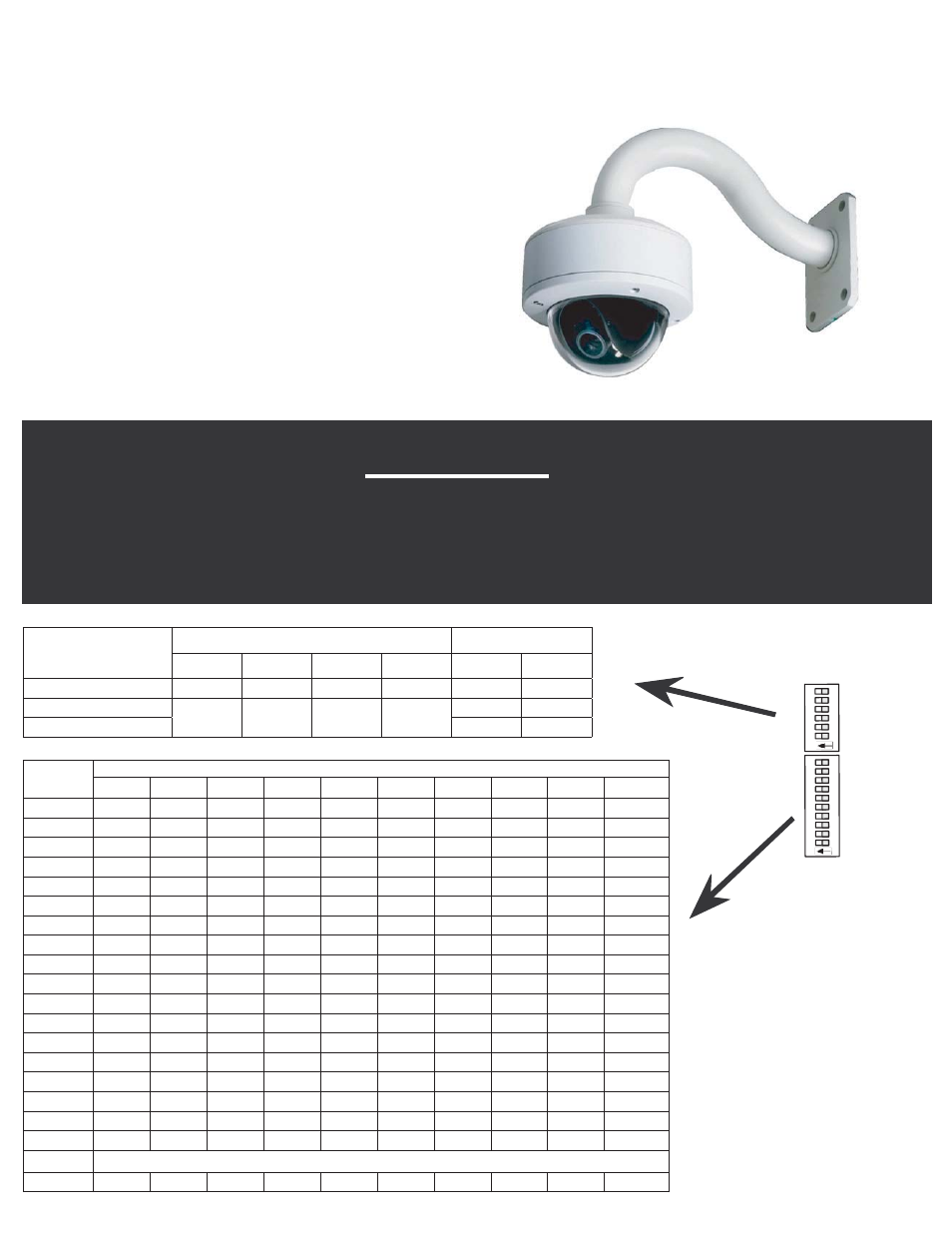

MINI SPEED DOME INSTRUCTIONS
CD65ME6X
NOTICE:
3X OPTICAL ZOOM : use [OPEN] / [CLOSE].
2 X DIGITAL ZOOM : use [ZOOM+] / [ZOOM-].
RS-485 , PELCO-D , CAM ID: 1.
Bit of Switch Dome
Address DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6 DIP-7 DIP-8 DIP-9 DIP-10
1 ON OFF OFF OFF OFF OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF OFF OFF OFF OFF
3 ON ON OFF OFF OFF OFF OFF OFF OFF OFF
4 OFF OFF ON OFF OFF OFF OFF OFF OFF OFF
5 ON OFF ON OFF OFF OFF OFF OFF OFF OFF
6 OFF ON ON OFF OFF OFF OFF OFF OFF OFF
7 ON ON ON OFF OFF OFF OFF OFF OFF OFF
8 OFF OFF OFF ON OFF OFF OFF OFF OFF OFF
9 ON OFF OFF ON OFF OFF OFF OFF OFF OFF
10 OFF ON OFF ON OFF OFF OFF OFF OFF OFF
11 ON ON OFF ON OFF OFF OFF OFF OFF OFF
12 OFF OFF ON ON OFF OFF OFF OFF OFF OFF
13 ON OFF ON ON OFF OFF OFF OFF OFF OFF
14 OFF ON ON ON OFF OFF OFF OFF OFF OFF
15 ON ON ON ON OFF OFF OFF OFF OFF OFF
16 OFF OFF OFF OFF ON OFF OFF OFF OFF OFF
17 ON OFF OFF OFF ON OFF OFF OFF OFF OFF
18 OFF ON OFF OFF ON OFF OFF OFF OFF OFF
… …
1023 ON ON ON ON ON ON ON ON ON ON
NO
D
IP
1
3
2
4
6
5
7 9
8
01
NO
D
PI
1
2
4
3
6
5
Selection of Protocols Normal Baud Rate Type of
communication
DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6
PELCO-D ON ON OFF OFF OFF OFF
PELCO-P/4800 ON OFF
PELCO-P/9600
OFF OFF ON OFF
OFF ON
