Getting Started
Networking your Digi-Trolls
Up to six Digi-Troll series downriggers can be networked together with the Cannonlink accessory. To network your
downriggers you will need the Relay Cable Accessory (019634) between each downrigger you would like to link.
The Cannonlink cable will install to the Data In connector on the first downrigger. Connect all other downriggers by
connecting the Relay Cable Accessory from the Data Out to the Data In of the next downrigger. A terminator is
needed on the last downrigger Data Out in order for the downriggers to properly communicate. This terminator is
included in the Cannonlink accessory.
Optional Intellitroll Accessory
The Digi-Troll series is compatible with the Cannon Intellitroll Speed and Temp sensor. The Intellitroll sensor gives
the user the speed, temperature, and depth at the weight. The Digi-Troll 5 downriggers are compatible with the In-
tellitrol but only when connected to the Cannonlink system. The Digi-Troll 5 will pass the Intellitrol data to the Hum-
minbird fishfinder for display on the fishfinder screen.

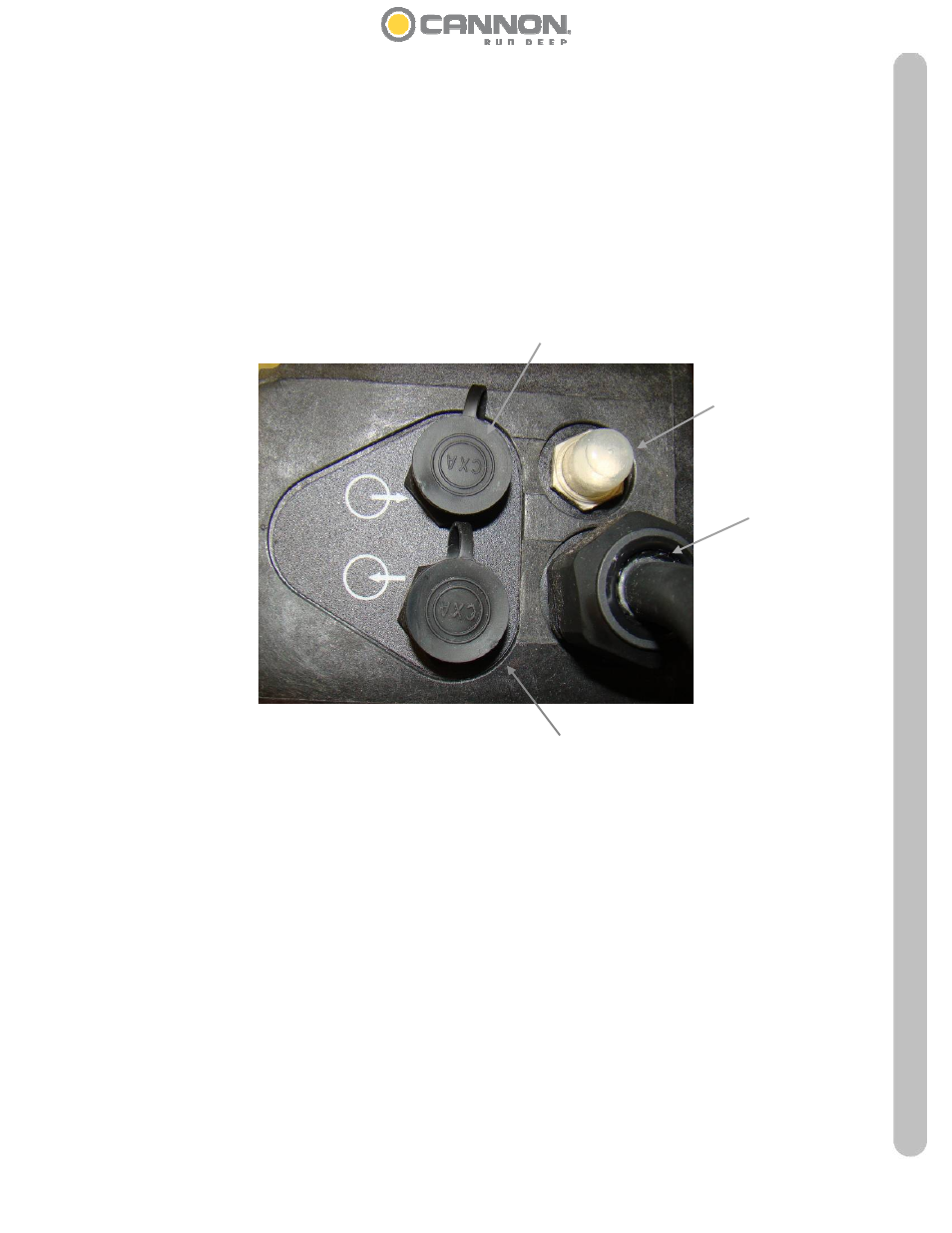

DATA OUT
DATA IN
CIRCUIT BREAKER
POWER CABLE
FIGURE 28
