Getting Started
Digi-Troll 5 Keypad

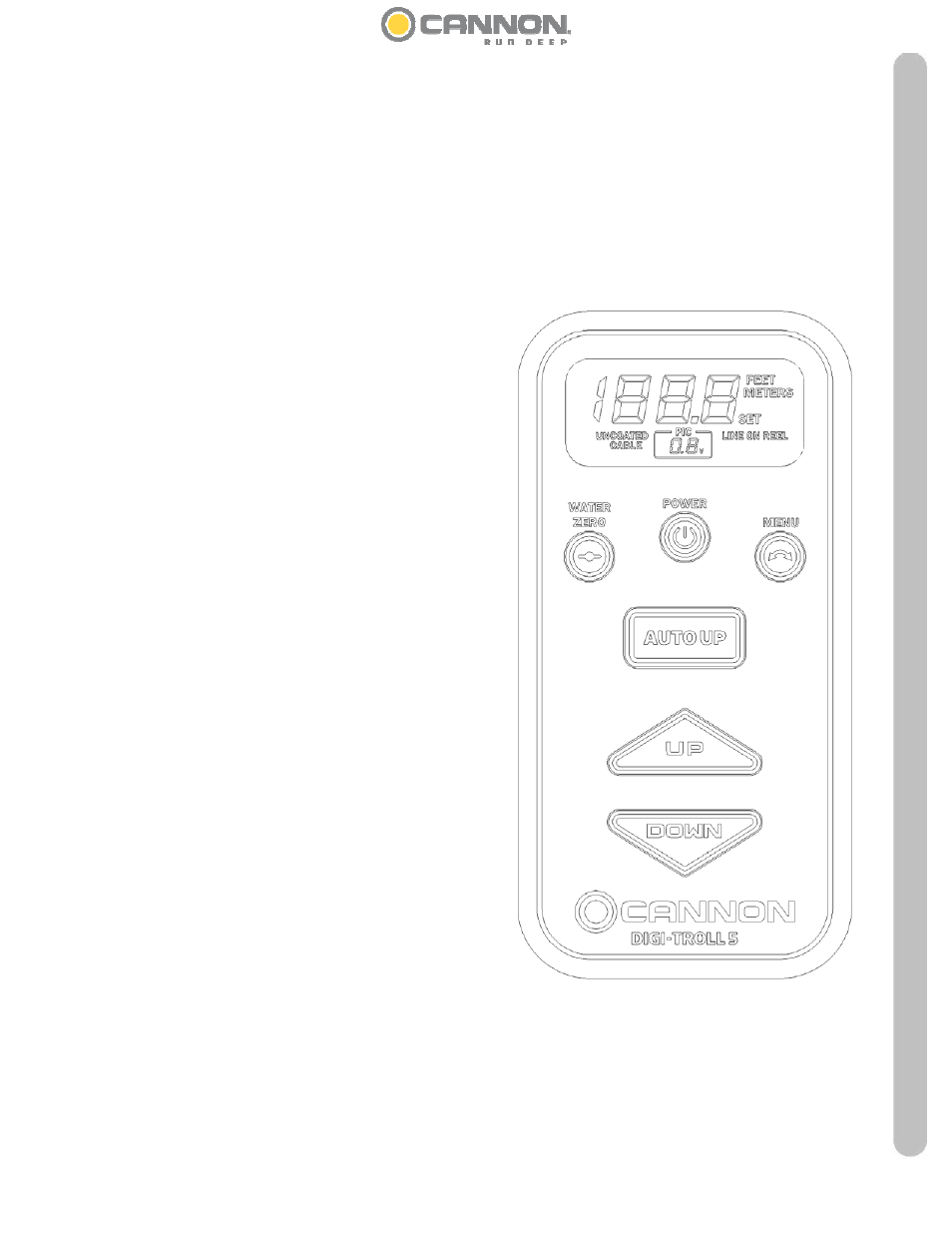

The Digi-Troll 5's keypad has six keys located below the display.
Power
The ON/OFF key functions:
1) Turn the Digi-Troll ON - Simply press and release.
2) Turn the Digi-Troll OFF - Press and hold power button for three seconds.
MENU
The Menu moves the display through up to four
screens for programming (see section on program-
ming for details). After 7 seconds of inactivity on the
key pad, the screen reverts back to the weight line out
display.
UP
During manual operation, this key raises the
weight when pressed. In programming mode, the
UP key increases numeric values.
DOWN
During manual operation, this key lowers the
weight when pressed. In programming mode, the
DOWN key decreases numeric values.
WATER ZERO
The water zero key provides a reset option for
depth. When pressed and held, the line out
count will reset to zero.
MENU
The menu key provides access to all program-
ming submenus.
AUTO UP
Press AUTO UP to raise the weight to the water
zero set point at any time. AUTO UP uses the
speed 5 regardless of your setting and cancels
any other mode of operation (bottom following,
cycling, etc.) when used.
