5 Putting into operation
34 B-811 Operation Manual, Version G
5 .7 .4 Connection to the condensers
1
2
3
2
2 2
4
left right
a Left condenser connection
to impeller water meter and
then to chiller inlet
b Not used
c Water connection between
the condensers
d Right condenser connec-
tion to chiller outlet

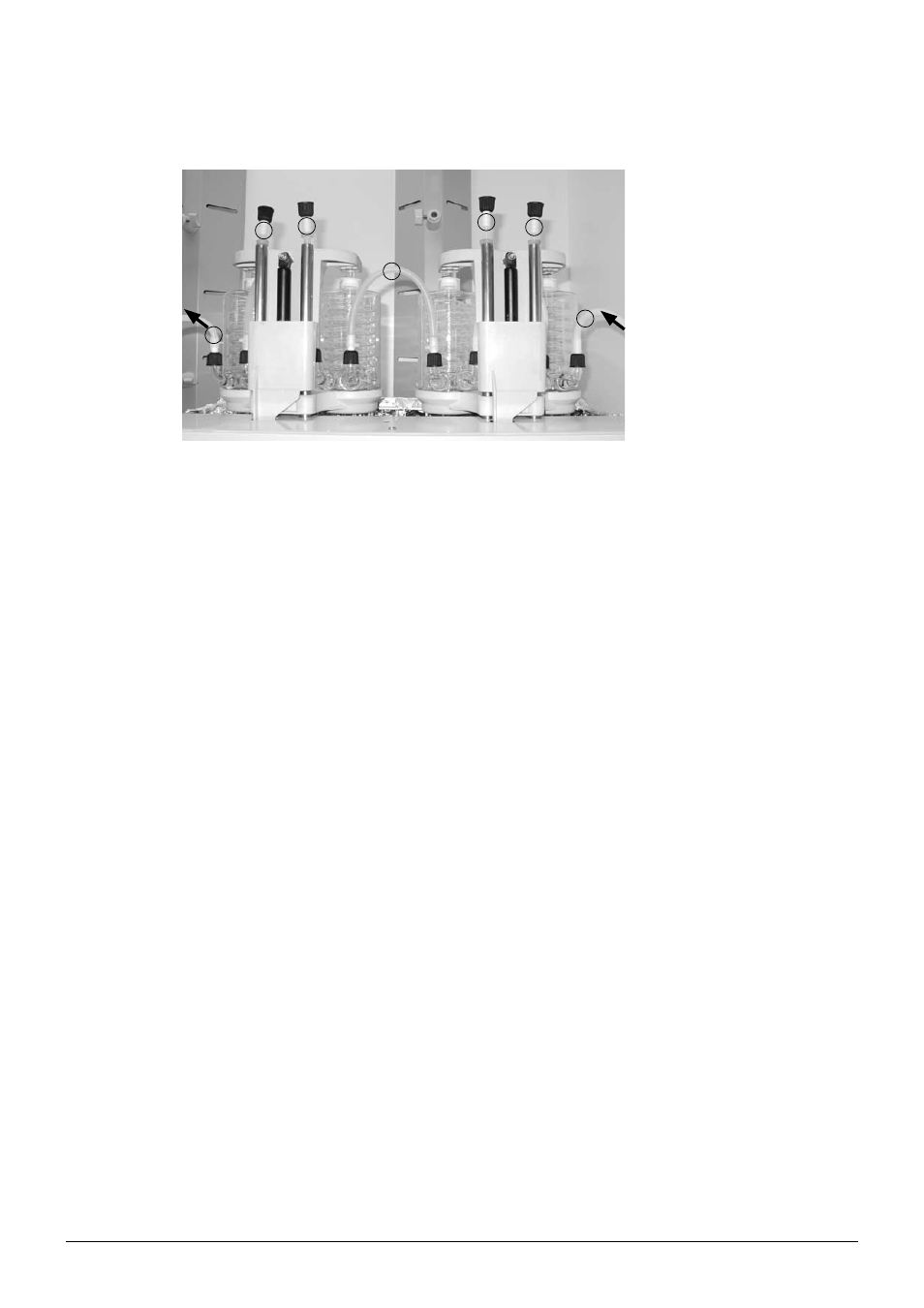

Fig. 5.6: Connection to the condensers (rear view)
To connect the condensers proceed as follows:
Untie the tubes • b and fix them with cable binders.
Connect a silicone tube • c (approx. 35 cm) by means of 2 tube adapters to the condensers in the
middle.
For water inlet connect a silicone tube with adapters to the right condenser
• d and connect the
adapters to the chiller outlet.
Connect the silicone tube (approx. 90 cm) from the rear side of the instrument
• a (in Fig. 5.5) to the
tube adapter of the left condenser a (in Fig. 5.6).
