5 .7 .2 Connection to the cooling water sensor
1
2
3
4
5
6
a Silicone tube from the left
condenser (see Fig. 5.6)
b Outlet to chiller inlet
c Not used
d Angle
e Closed internal tube
f Impeller water meter with
cooling water sensor

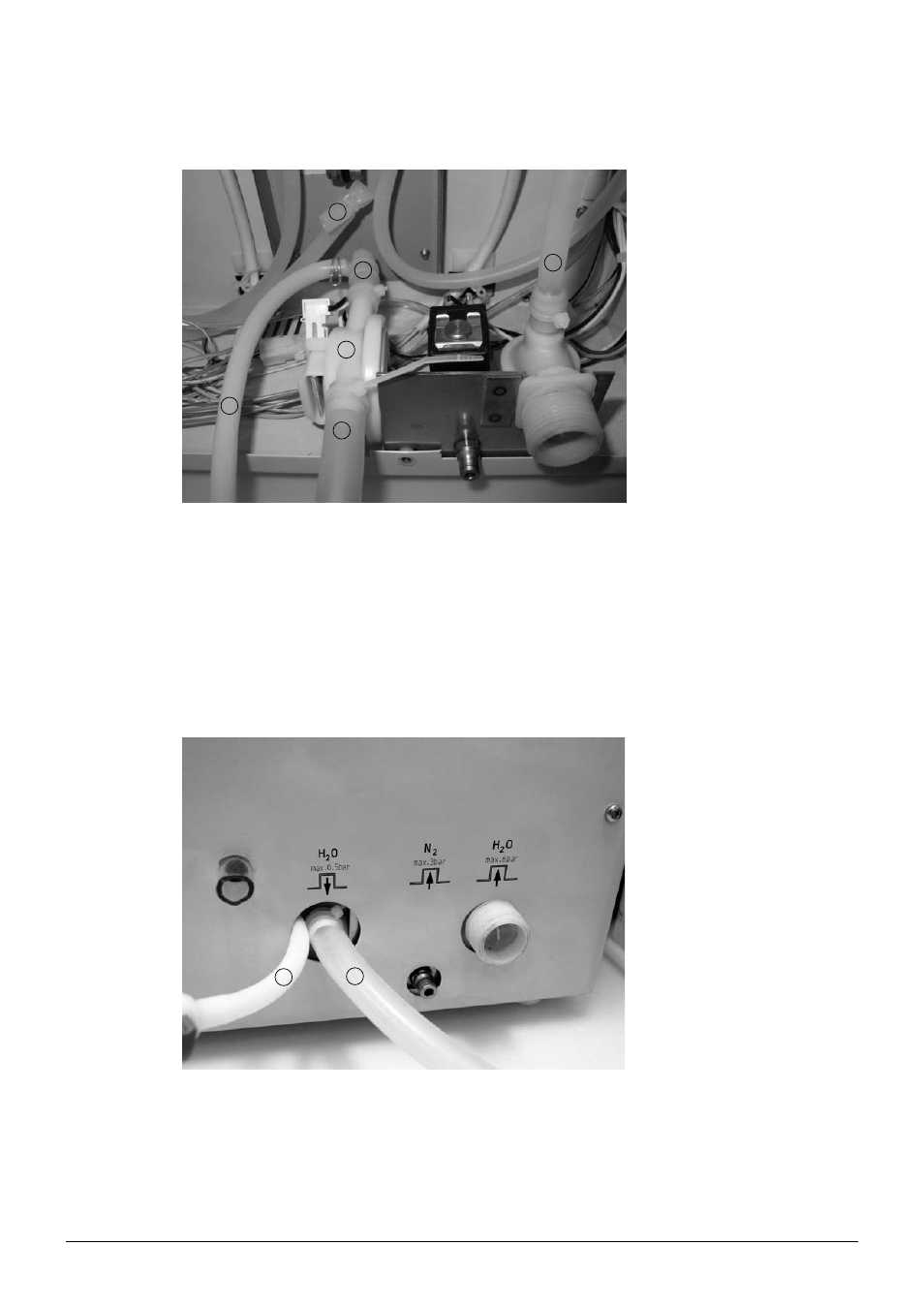

Fig. 5.4: Connection to the cooling water sensor
To connect the cooling water sensor proceed as follows:
Turn off the B-811 and disconnect it from the power supply. •
Disconnect the back board. •
Disconnect the internal tube • e from the sensor and close it with a cable binder.
Connect the silicone tube • a (about 90 cm) to the angle.
The silicone tube • b will be connected to the chiller (see 5.7.4) via the back board (see 5.7.3).
5 .7 .3 Rear connections
1 2
a Silicone tube from left con-
denser (see Fig. 5.6)
b Outlet to chiller inlet
Fig. 5.5: Rear connections
To establish the rear connections proceed as follows:
Thread the silicone tube • a through the back board.
Connect the tube • b to the chiller inlet, use an adapter if necessary.
Connect the tube • a to the left condenser (see 5.7.4).
