6 Operation
40 K-439 Operation Manual, Version A
Note
Make sure the adapter piece is tightened well without damaging the glassware. •
Keep suction hose(s) as short as possible under the given circumstances. •
Unused positions should be arranged at the rear end of the rack. •
3
3
4
Rear side
Lift the metal clips to unlock and shift the black handles • 3 aside.

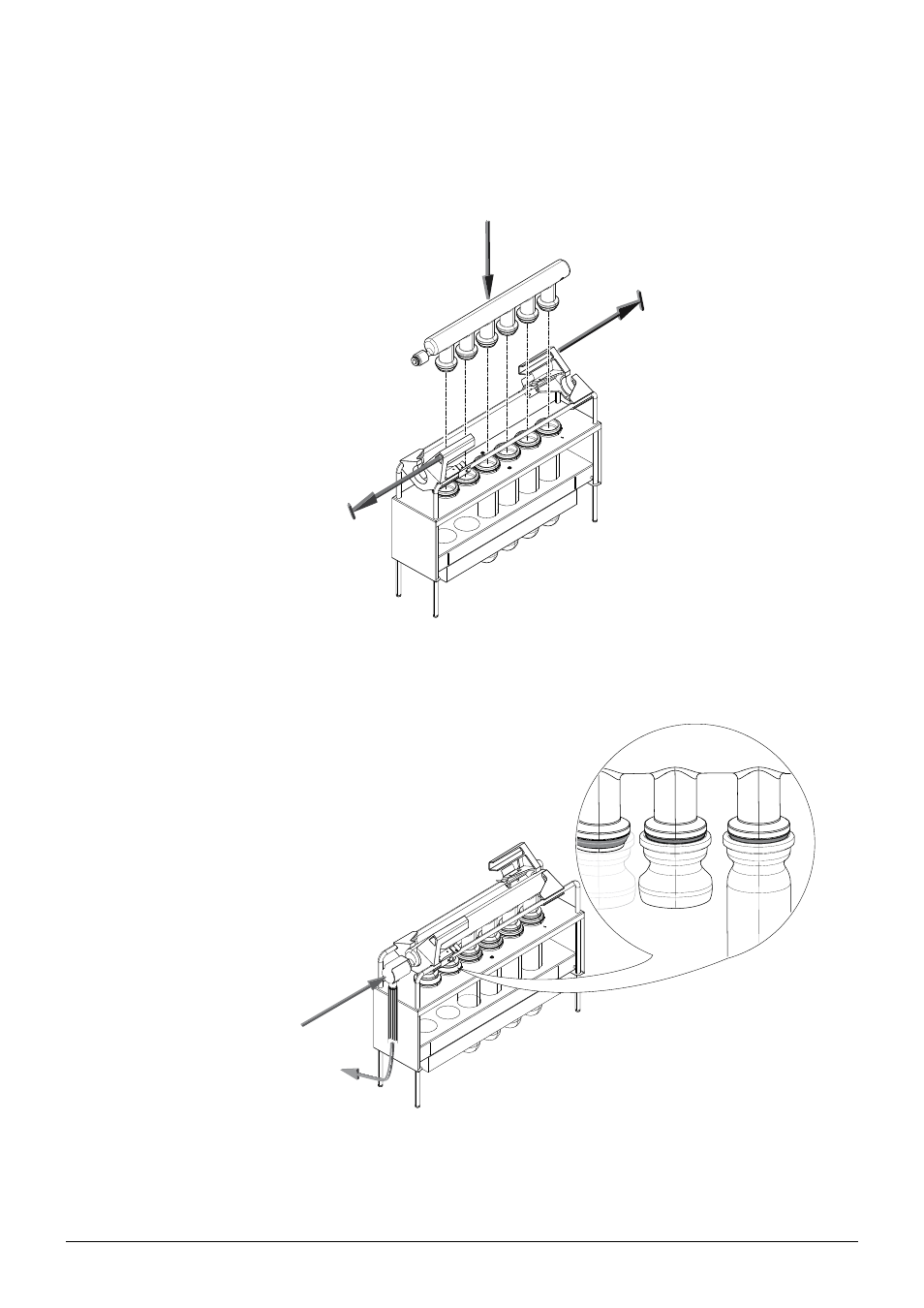

Carefully push down the suction module • 4 straight onto the sample tubes and shift the handles
back into locking position.
➥ The metal clips must snap in to securely lock the handles position!
*CL
ICK
*
5
6
To Scrubber or
water jet pump
Example with two glass
caps installed!
Check for proper and • tight seating of each rubber sealing 5.
➥ If necessary unlock the handles again and readjust the suction module!
Plug the suction hose with plug onto the suction module
• 6.
➥ The plug catches with a noticable *click* sound.
