5 Putting into operation
27 V-700/710 Operation Manual, Version E
5 Putting into operation
This chapter describes how the instrument is installed and gives instructions on initial startup.
NOTE
Inspect the instrument for damages during unpacking. If necessary, prepare a status report immedia-
tely to inform the postal company, railway company or transportation company.
Keep the original packaging for future transport.
5 .1 Installation site
Place the instrument on a stable, horizontal plane and consider the maximum product dimensions.
If the vacuum pump cannot be placed in a fume hood, we recommend to use a secondary condenser
or to lead the outlet of the pump into the running hood.
Consider the allowed environmental conditions (see also chapter 3.2) and make sure that there is a
sufficient air supply to the fan to cool the pump.
5 .2 Vacuum controller
To install the vacuum controller, proceed as follows:
• Mount the vacuum controller holder to the top of the pump
using the appropriate screw.
NOTE
You can use the allen key integrated in the top cover of the
pump, see also Fig. 4.2.
2
1
• Fix the controller to the holder b by means of the knurled
screw a.

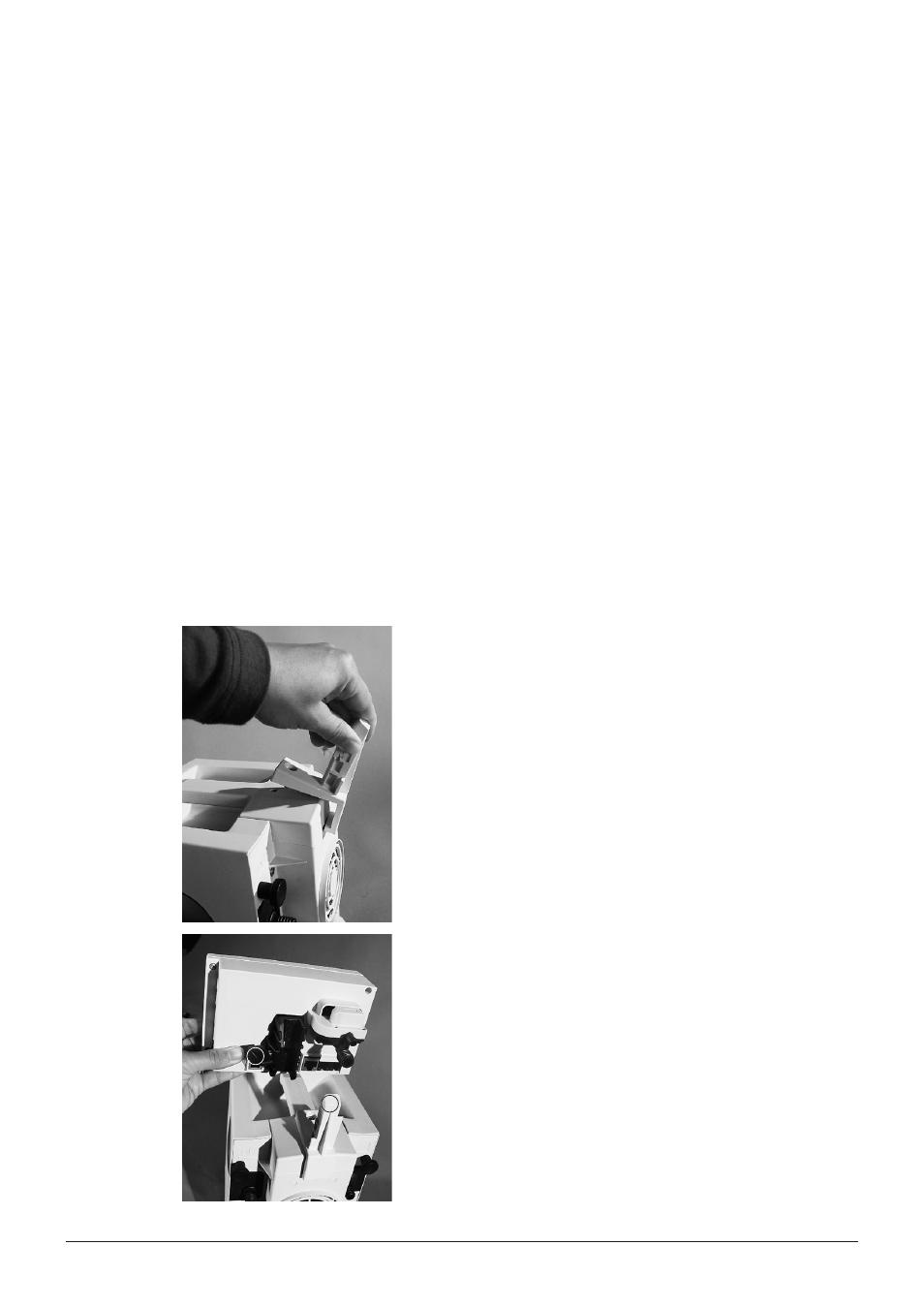

Fig. 5.1: Connecting the controller to the vacuum pump
