11 AN-16SBR S
yStem
B
Ridge
U
SeR
g
Uide
AN-16/i
AN-16/i
AN-16/i
AN-16/i AN-16/o
AN-16/o
AN-16/o
AN-16/o
AN-16SBR AN-16SBR
A-Net Out A-Net In
A
B
C
D
A
B
C
D
Bridge

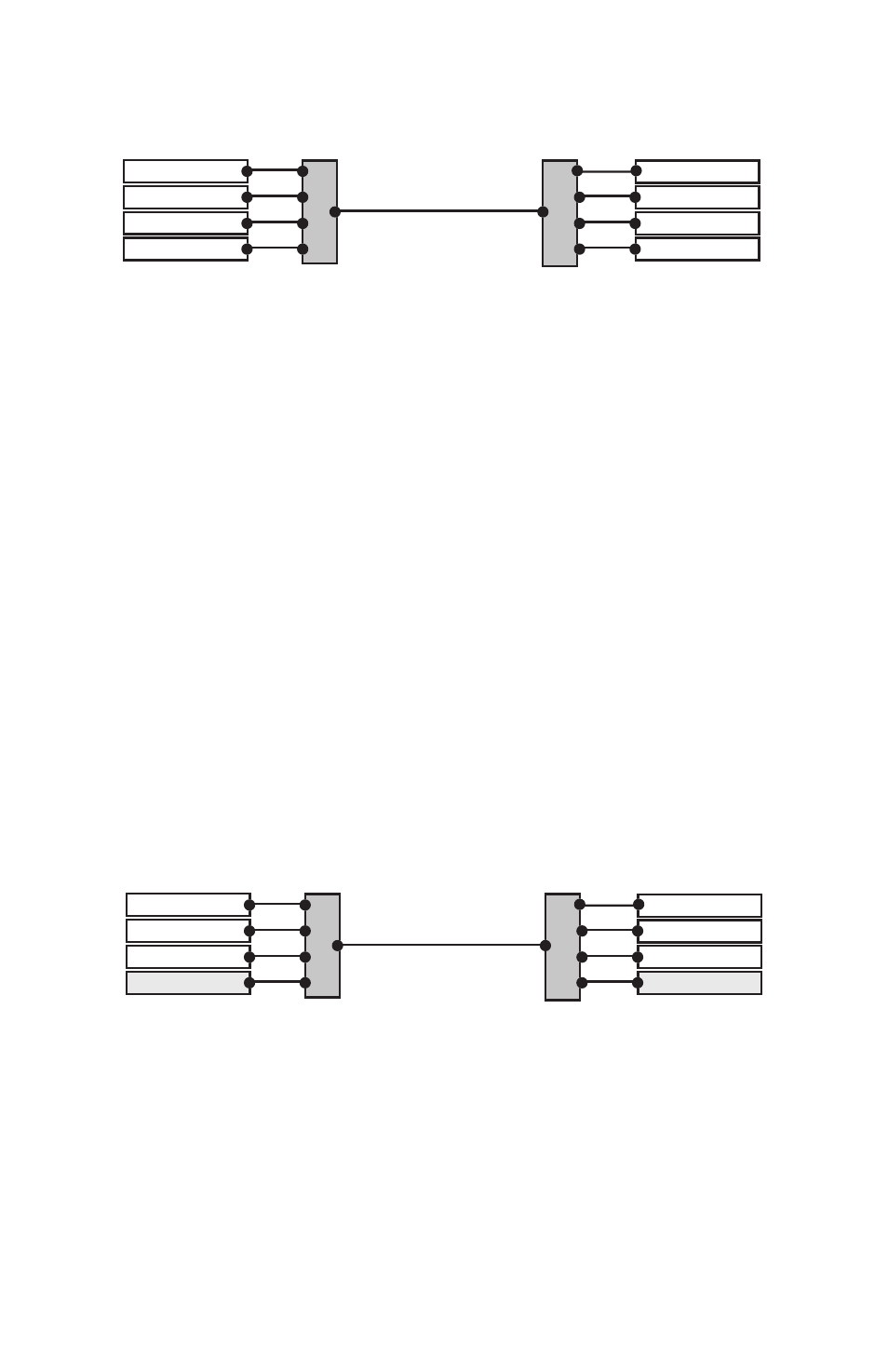

Note that each port of the System Bridge contains one I/O pair.
To complete the digital snake, connect the Bridge ports on the AN‑16SBR
System Bridges with a Cat‑5e cable.
Other Configurations
The AN‑16SBR System Bridge can be used to create 64 x 0, 48 x 16, or 32 x
32 configurations using the same set of Pro16 I/O modules. To create other
configurations, simply swap the position of any pair of modules.
For example, to create a digital snake with 48 channels sending and 16
channels returning (48 x 16), switch the positions of the devices attached
to port D of the AN‑16SBR. Any compatible Pro16 input module (such as the
AN‑16/i‑M, Y1 card for Yamaha consoles, or other Pro16 compatible third‑
party console interface card can be substituted in the examples above.
Remember that an A‑Net output connected to a particular port (A, B, C, or D)
on one side of the System Bridge will always connect to an A‑Net input of a
device connected to the same‑lettered port on the other side of the System
Bridge.
AN-16/i
AN-16/i
AN-16/i
AN-16/o AN-16/o
AN-16/o
AN-16/o
AN-16/i
A-Net Out A-Net In
A
B
C
D
A
B
C
D
Bridge
System Bridge System Bridge
One pair of Pro16 devices has been swapped, creating a 48 x 16 configuration.
