10 AN-16SBR S
yStem
B
Ridge
U
SeR
g
Uide
A B C D
PRO16
PORTS

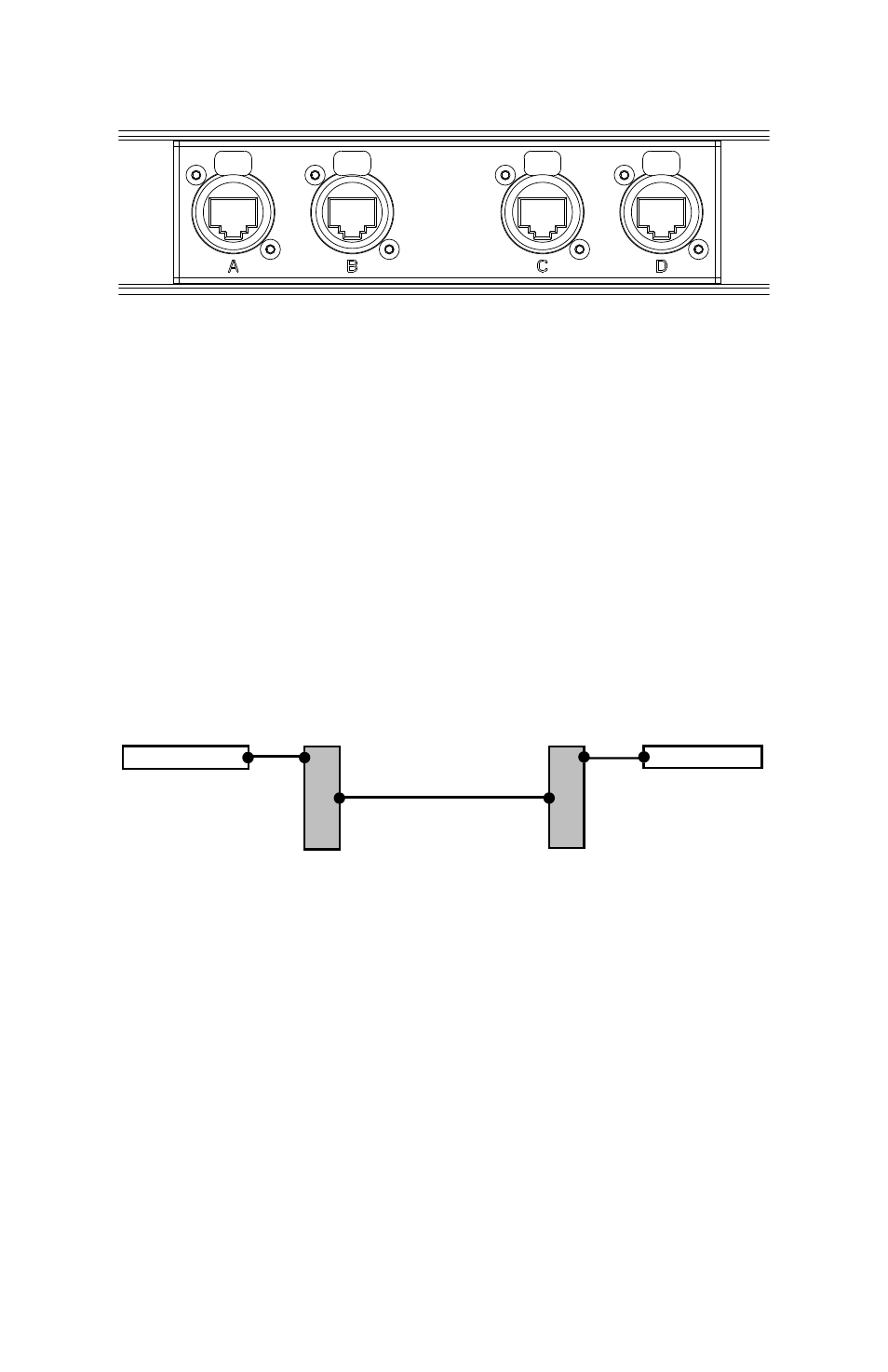

Each AN-16SBR has four I/O ports—A, B, C, and D.
For example, if an AN‑16/i‑M Mic Input Module is used on one side of a digital
snake, a corresponding AN‑16/o Output Module will be used on the other
side—analog in feeds analog out, and likewise A-N
et
o
ut
feeds A-N
et
i
N
.
Configuring a Digital Snake
The example below illustrates how to set up a four‑device Pro16 digital
snake.
The A-N
et
o
ut
from one input module is connected to the AN‑16SBR port
A with a Cat‑5e cable at one end of the digital snake. The AN‑16/o Output
Module’s A-N
et
i
N
is connected to port A at the other side of the digital
snake.
AN-16/i AN-16/o
AN-16SBR AN-16SBR
A-Net Out A-Net In
A
B
C
D
A
B
C
D
Bridge
A Pro16 input and output module each connected to port A on a pair of
System Bridges
Following the example above, connect Pro16 I/O devices to the remaining
pairs of ports (B, C, and D) on the System Bridge.
A complete digital snake system, in this case a 64 x 0 configuration, would
look like the diagram that follows:
