The A‑Net outputs on the A‑16D Pro can be connected to any A‑Net
compatible device, allowing flexible routing and system configurations as
well as virtually unlimited system expansion.
To add a Pro16 output module such as the AN‑16/o or AV‑P2, simply connect
A-N
et
o
ut
from the A‑16D Pro to A-N
et
i
N
on the output module.
A-Net Thru
The A‑Net Thru jack provides an easy way to expand a system. The 16‑channel
A‑Net signal appearing at the Thru jack is an exact copy of the A‑Net input
signal. There is no power supplied to this jack, however.

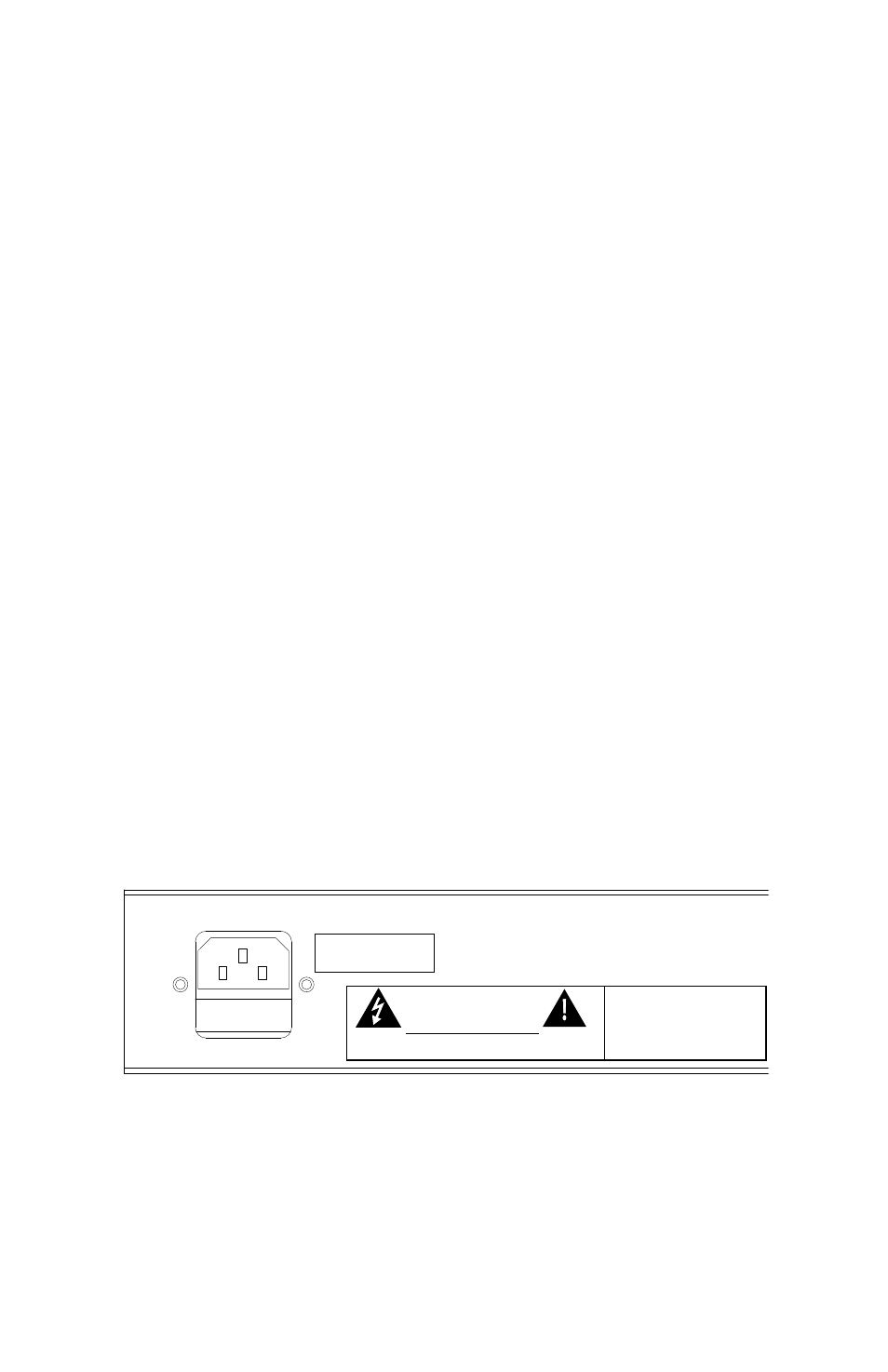

A-16D Pro Rear Panel
The rear of the A‑16D Pro A‑Net Distributor contains the standard IEC power
input for the unit. The main power supply in the A‑16D Pro is a switching
type, compatible with the variety of electrical systems in use worldwide.
The A‑16D Pro can operate with input voltages from 100 to 240 volts and
at rates from 50 to 60 Hz. Replaceable IEC cables for AC power systems
throughout the world are available from many electronics dealers. Avoid
using cable adapters whenever possible. Replacement cables must provide
an earth ground connection.
The A‑16D Pro power supply fuse is contained in the power connector
assembly. To change a fuse, first unplug the unit form the wall receptacle.
Remove the fuse access panel to reveal the fuse. Always replace the fuse with
one of the same rating.
P
RO
100-240 VAC ~
50/60 Hz 300W
Made in USA
CAUTION
Risk of electric shock!
Do Not Open
WARNING!
To reduce the risk of fire or
electric shock do not expose
this product to rain or moisture.
AVIS: Risque de choc electrique!
Ne pas ouvrir
Conceived, designed, and manufactured by Aviom, Inc.
CAUTION : Replace fuse with
same type fuse and rating.
250VAC~ F 8A L
Always replace the fuse with one of the same rating.
