AVF Group YML2500: ANY WALL TV Mount - Manual (Page 3)

F
2, 6 ,10, 14

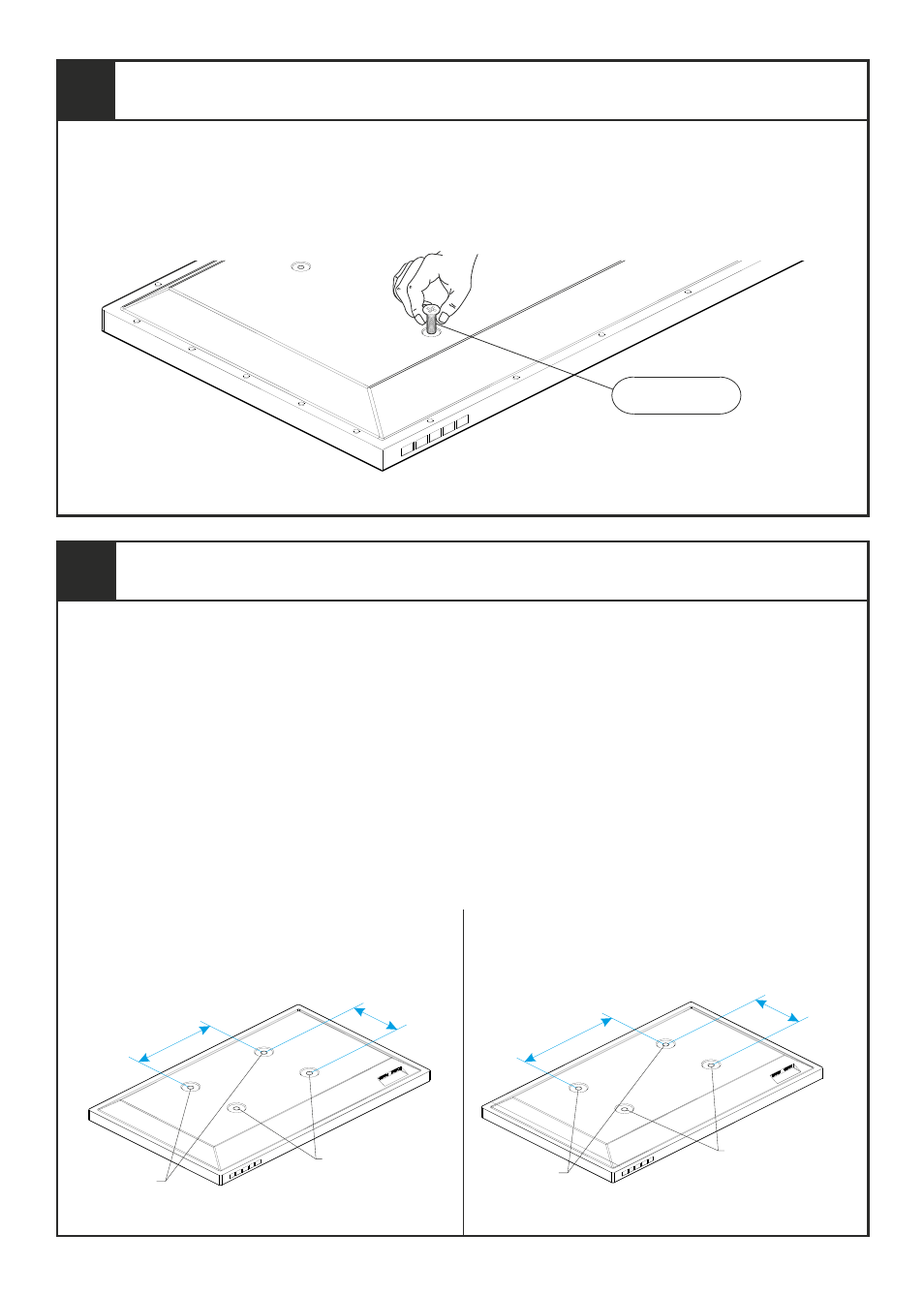

3 Determine Correct TV Screw Size
Choose from the TV Fixings selection. You need to determine which length and diameter of screws
fits your TV. To determine the correct screw diameter, try screwing (F
2
), (F
6
), (F
10
) & (F
14
) into one
of the fixing holes on the back of the screen until you find the one that fits. Note the thread size and
ensure you use the appropriate diameter screws.
4 Fit Screen Hangers To TV
Once you have established which screws you need for your TV you can attach the Hangers (B)
or 200 Adaptor (N) and Stand-offs (C) to the back of your TV.
Typical recommended examples shown are for fixings with the TV spaced 20mm from the wall.
The TV Mount can position your TV between 12mm and 40mm from the wall. For alternative
configurations see sections 9.
You might need to use spacers to increase the clearance of your TV from the wall in order to avoid
cables coming out of your TV and improve access and ventilation to the back of your TV (spacers
(D) allow you to have a gap of 20mm, 30mm or 40mm, see sections 9).
In certain circumstances it may be necessary to use red spacer (D2) as either a replacement or
addition to spacer (D1), for more information please see section 9.
Measure your TV fixings centres to determine whether to use option 1 or option 2. If your TV fixing
centres don’t suit either option, STOP instillation and contact the customer services helpline.
75-100mm
Horizontal
75-100mm
Vertical
200mm
Horizontal
100-200mm
Vertical
Option 2 Option 1
Top fixings
Bottom fixings
Top fixings
Bottom fixings
VESA Standard 75x75 & 100x100 VESA Standard 200x100 & 200x200
