MS-812 – User’s manual © - Revision 1.9
Page 18

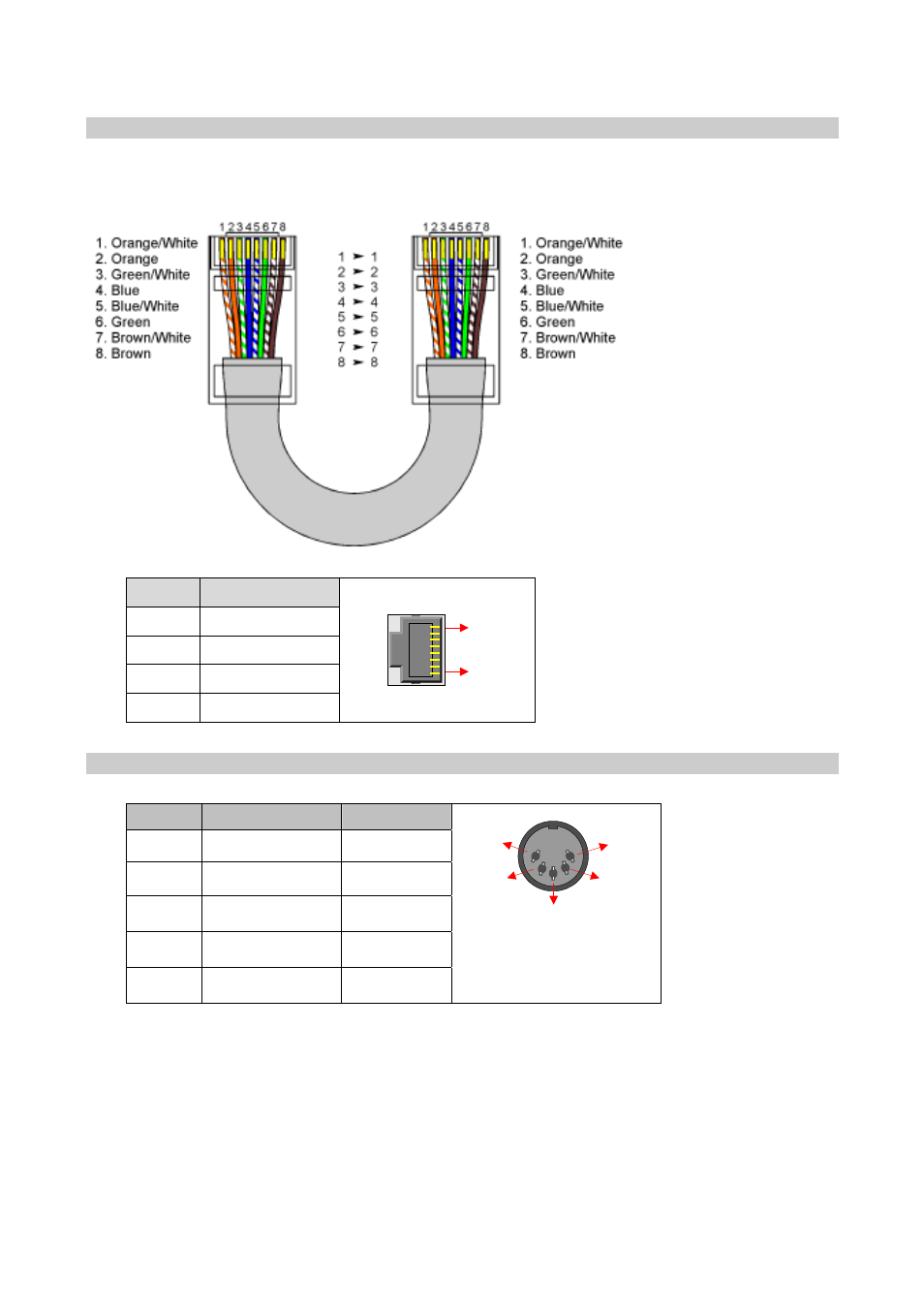

7.4 How to wire an Ethernet cable?
If you want to build your own Ethernet cable, use CAT5 cable, RJ45 connectors and a crimping
clamp.
The maximum length for a single cable is 100 meters
Pin Function
1 TX+
2 TX-
3 RX-
6 RX+
1
8
7.5 How to wire a DIN-SYNC24 cable
Pin Function Color Jack
1 Run (Start/Stop) Red
2 GND (Shield) --
3 CLK 24PPQN Black
4 Reset / Start Blue
5 Fill-in / Continue Yellow
4
1
5
2
3
DIN41524 female 5 pins
