ALFA NETWORK AWAP411 - Manual (Page 27)

AWAP411 150M Wireless 11N Access Point
5) Universal Repeater: This mode allows the AP with its own BSS to relay data to a root AP to
which it is associated with WDS disabled. The wireless repeater relays signal between its
stations and the root AP for greater wireless range.

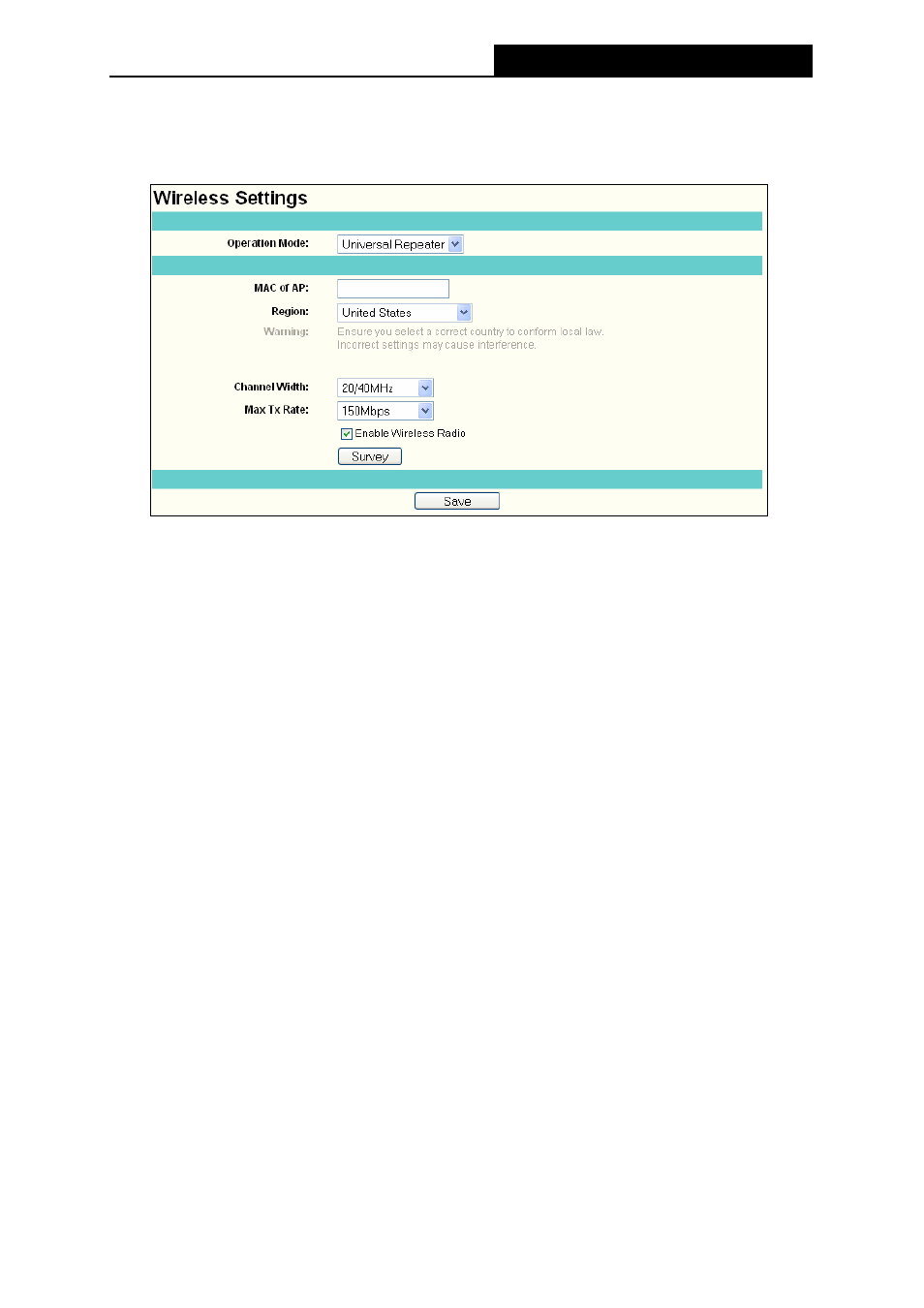

Figure 4-11 Wireless Settings in Repeater mode
¾
MAC of AP - Enter the MAC address of the root AP of which you want to expand wireless
range.
¾
Channel Width - Determines the channel width to be used. It is unnecessary to change the
default value unless required.
¾
Max Tx Rate - Specifies the maximum transmit rate of the device through this field.
¾
Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
Click the Search button to detect the SSIDs in the local area.
)
Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.
21
