ALFA NETWORK AWAP411 User Manual
Page 18

AWAP411 150M Wireless 11N Access Point

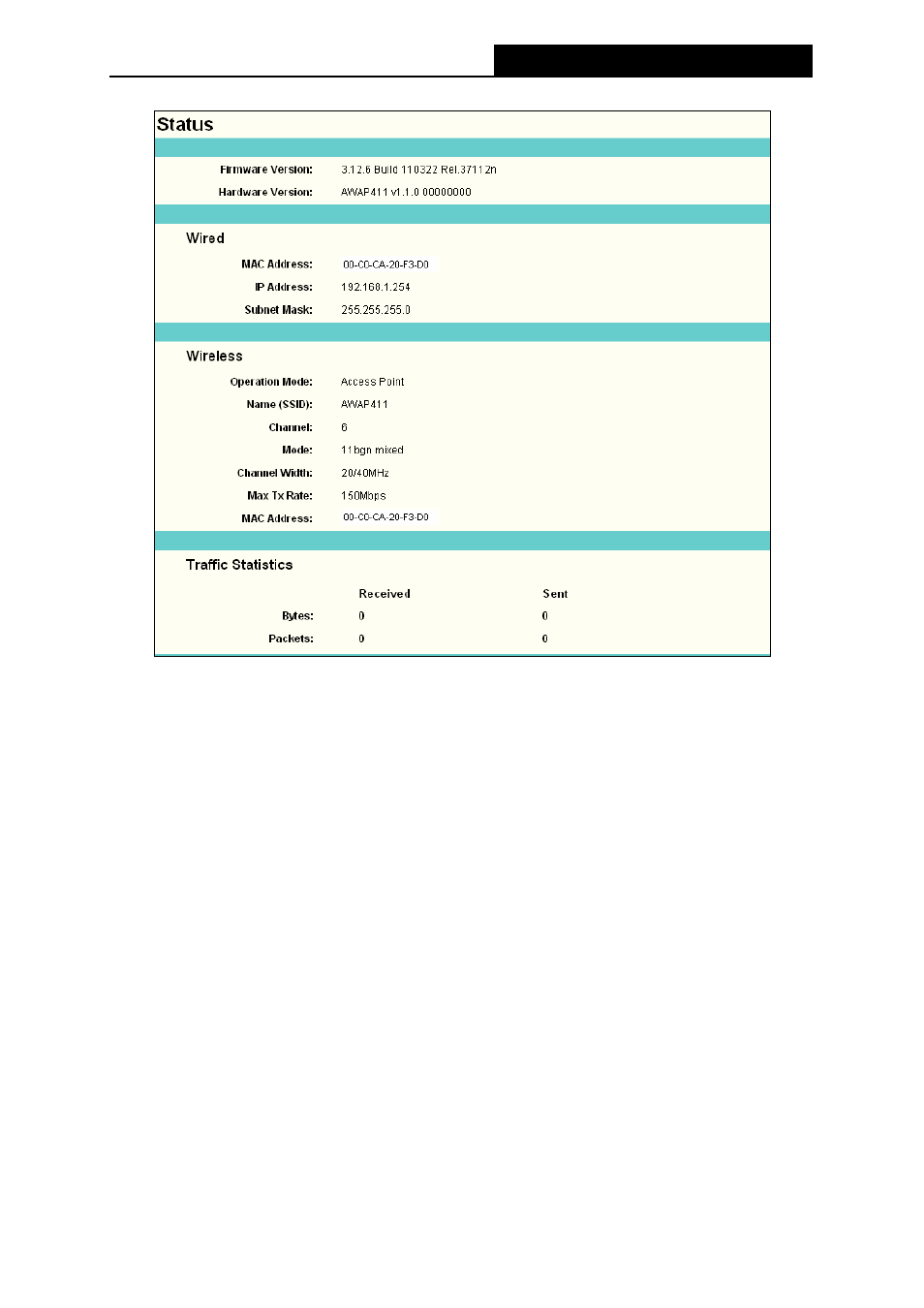

Figure 4-3 Device Status
¾
Firmware Version - This field displays the current firmware version of the AP.
¾
Hardware Version - This field displays the current hardware version of the AP
¾
Wired - This field displays the current settings or information for the Network, including the
MAC address, IP address and Subnet Mask.
¾
Wireless - This field displays basic information or status for wireless function, including
Operating Mode, SSID, Channel, Mode, Channel Width, Max Tx Rate and MAC Address.
¾
Traffic Statistics - This field displays the AP's traffic statistics.
¾
System Up Time - This filed displays the run time of the AP since it’s powered on or reset.
)
Note:
If you select Client mode in Figure 4-9, the wireless status in Figure 4-3 will change, similar to the
figure below:
12
