C HAPTER 6 | Network Settings
LAN Setting
– 58 –
LAN S ETTING
The Mini Broadband Router must have a valid IP address for management
using a web browser and to support other features. The unit has a default
IP address of 192.168.2.1. You can use this IP address or assign another
address that is compatible with your existing local network. Click on
“Network Settings” followed by “LAN.”

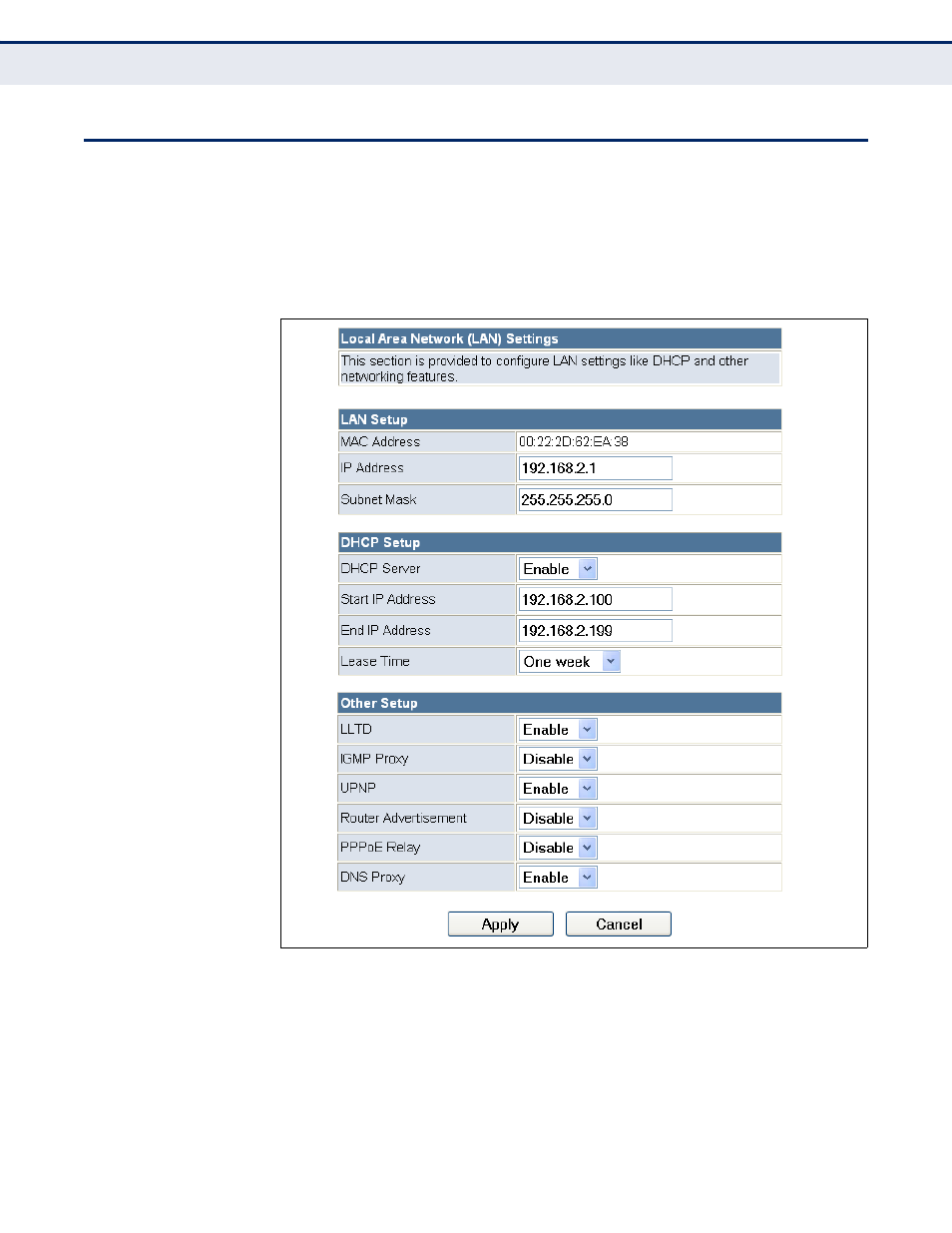

Figure 31: LAN Configuration
The following items are displayed on this page:
◆ MAC Address — The physical layer address for the Mini Broadband
Router’s LAN port.
◆ IP Address — Valid IP addresses consist of four decimal numbers, 0 to
255, separated by periods. (Default: 192.168.2.1)
