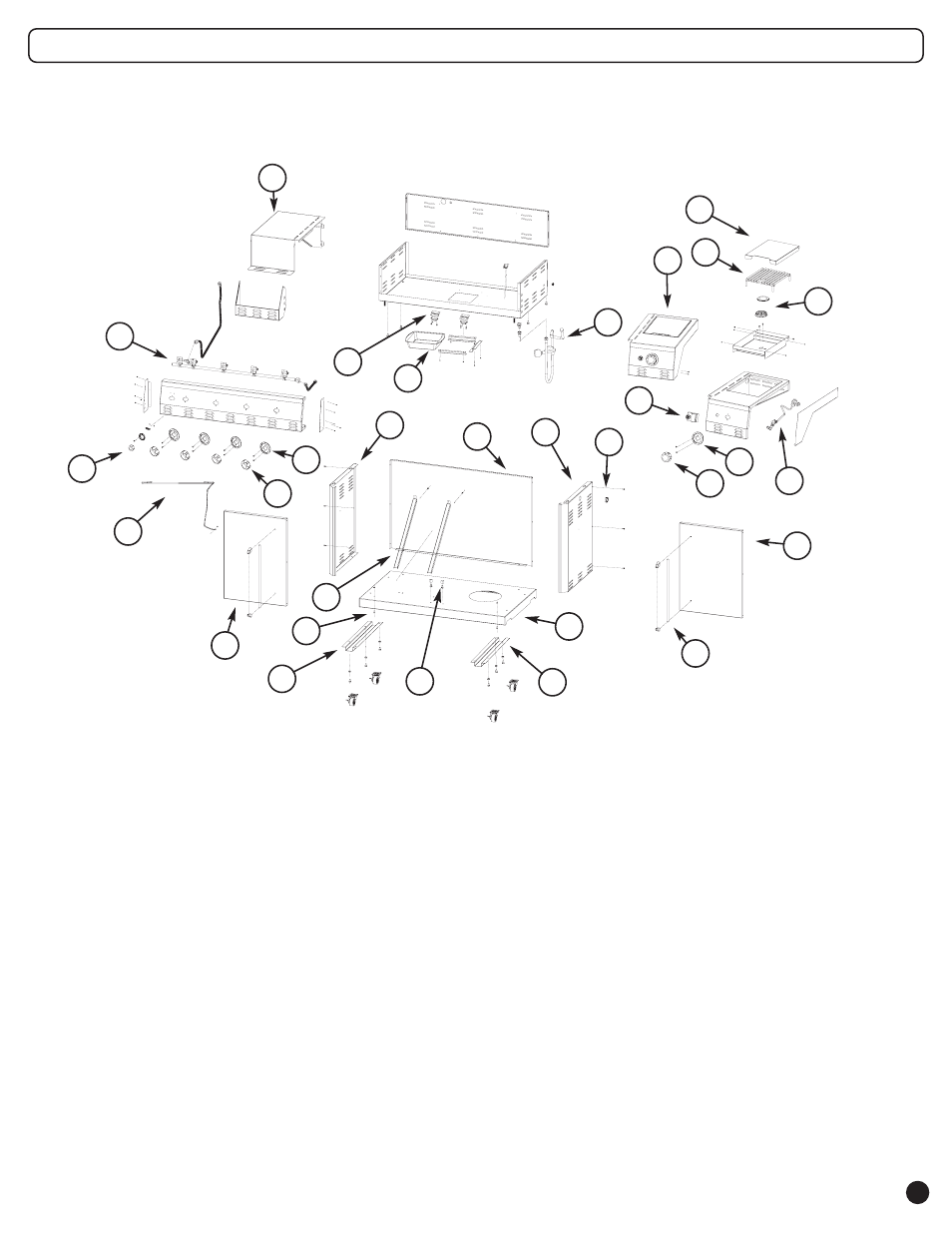

Replacement Parts List — 8200 Series
15
18
26
20
21
37 36
41
29
25
35
33
40
15. 9992-1211 Side Shelf Left (Condiment Tray)
16. 9992-4091 Door Magnet Bracket Assembly
17. 9992-1221 Drip Pan
18. 9992-4591 2 Hose Regulator LP
19. 9992-4301 Side Burner Shelf Right Assembly
20. 9992-1231 Side Burner Cover
21. 9992-1251 Side Burner Grate 8" x 9"
22. 9992-4181 Side Burner Cap Assembly
23. 9992-4311 Side Burner Valve
& Burner Assembly LP
24. 9992-1261 4 Pole Igniter
25. 9992-1271 Main Bezel
26. 9992-1491 Main Knob (Large)
27. 9992-4461 Door Assembly
28. 9992-4371 Door Handle Assembly
(x2 handle ends)
29. 9992-1071 Grommet Black Plastic
30. 9992-2701 Cart Right Side
31. 9992-1711 Cart Back
32. 9992-2801 Cart Left Side
33. 9992-2721 Cart Brace
34. 9992-4121 Bottom Door Pivot Assembly
35. 9992-1701 Cart Base
36. 9992-4411 Wheel Assembly Right
37. 9992-1281 Door Stop Bottom Rubber
38. 9992-4381 Wheel Assembly Left
39. 9992-1291 Match Extender
40. 9992-1501 Back IR Knob
41. 9992-4421 Main Valve & Manifold Assembly LP
16
39
24
27
27
28
31
30
32
19
38
25
26
17
34
22
23
9
