Coleman 9992-644 - Manual (Page 8)

1
2
3
6
5
4
11
9
8
10
14
1. 9992-4131 Hood Assembly w/Logo Plate
2. 9992-4141 Hood Handle Assembly
3. 9992-1111 Temperature Gauge Only
4. 9992-2731 Back IR Cover
5. 9992-1301 Warming Rack
6. 9992-4061 Back IR Burner Assembly LP
7. 9992-4071 Back IR Electrode Assembly
8. 9992-4081 Main Burner Electrode Assembly
9. 9992-1311 Main Burner (w/hdwe)
10. 9992-1321 SS Cooking Grates (1 ea.)
11. 9992-1191 Hood Bolt Kit (hdwe) x2
12. 9992-1201 Heat Tent
13. 9992-4221 Burner Support Assembly
14. 9992-1181 Drip Pan Heat Shield
Parts Not Shown
9992-1091 Side Burner Igniter Wire (18")
9992-0601 Self-tapping Screws (6pk)
9992-4391 Wheel Assembly Nuts (6pk)
9992-1101 Universal Igniter Wire (60")
9992-1121 Hood Bumper Pads
7
12
13

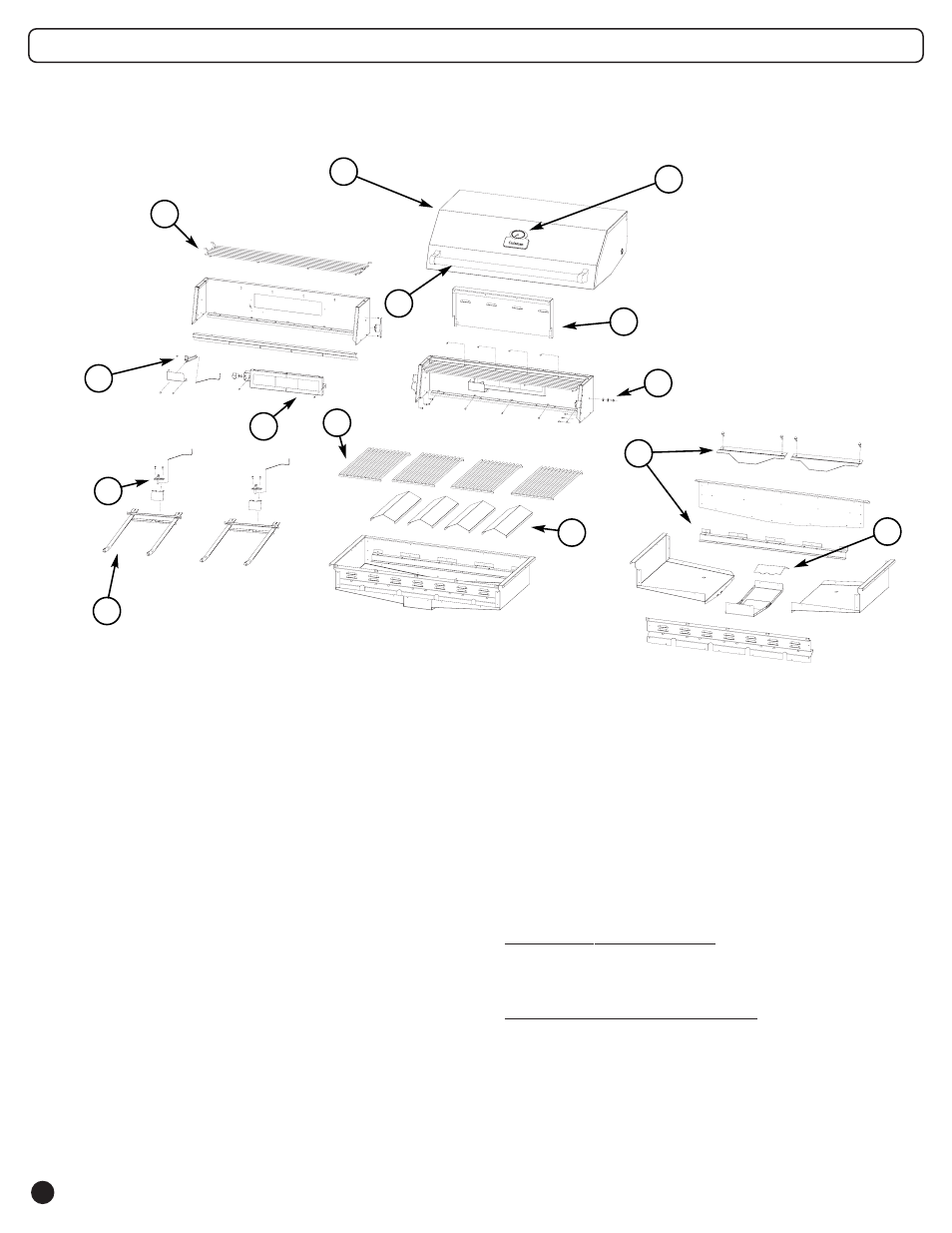

Replacement Parts List — 8200 Series
8
Grill Rotisserie Kit (not shown)
9992-539 8200 Series Grill Rotisserie Kit
Grill Gas Conversion Kit (not shown)
9992-214 8200 Series LP to NG Conversion Kit
