INSTALLATION INSTRUCTIONS
HORIZONTAL TILT RACKS - 30 & 60 SIDE-BY-SIDE ORIENTATION
2.2 Mounting on a raised-seam roof
This section is to aid in the mounting of the rail assembly
onto a raised-seam roof using an S5U clip and L-102
L-Bracket.
Part:
# of Collectors in Array:
1
2
3
4
# of Parts Required:
S5U clip
4
8
12
16
L-102 L-Bracket
4
8
12
16

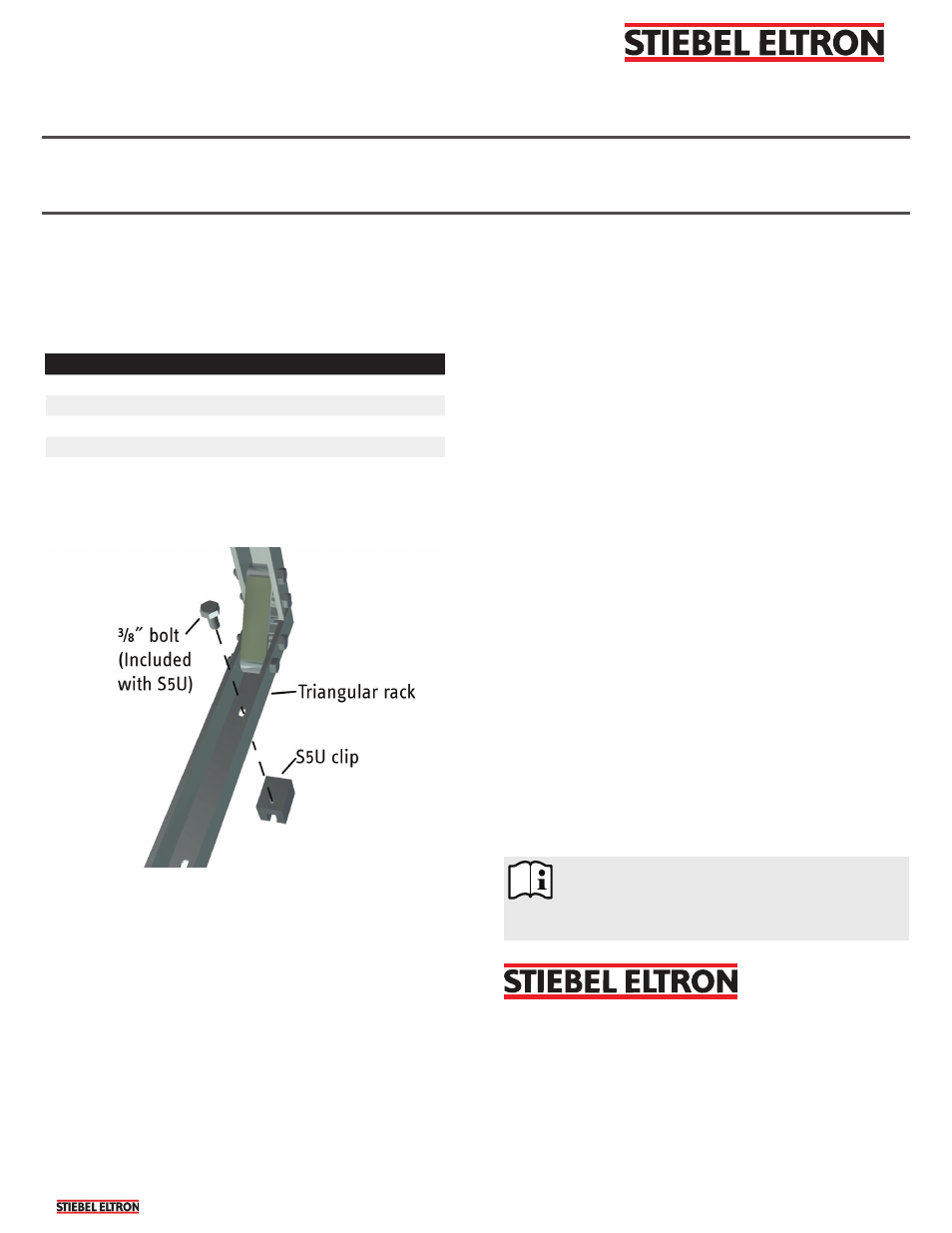

1. Assemble the S5U clip and triangular racks using the
included fasteners.
2. Clip the S5U assembly to the roof ridges.
Note: For information regarding the installation of S5U clips
and L-Brackets, consult the Stiebel Eltron Raised-seam
Roof Installation Guide.
3. Follow the same procedures for the remaining assembly
as shown in steps 3-14 in Section 2.1.
For any service or warranty related issue, contact
Stiebel Eltron at:
800.582.8423
17 West Street
West Hatfi eld, MA 01088
TOLL FREE
800.582.8423
PHONE
413.247.3380
FAX
413.247.3369
info
@
stiebel-eltron-usa.com
www.stiebel-eltron-usa.com
Printed on recycled chlorine-free paper with soy-based inks.
Due to our continuous process of engineering and technological
advancement, specifi cations may change without notice.
