INSTALLATION INSTRUCTIONS
HORIZONTAL TILT RACKS - 30 & 60 SIDE-BY-SIDE ORIENTATION

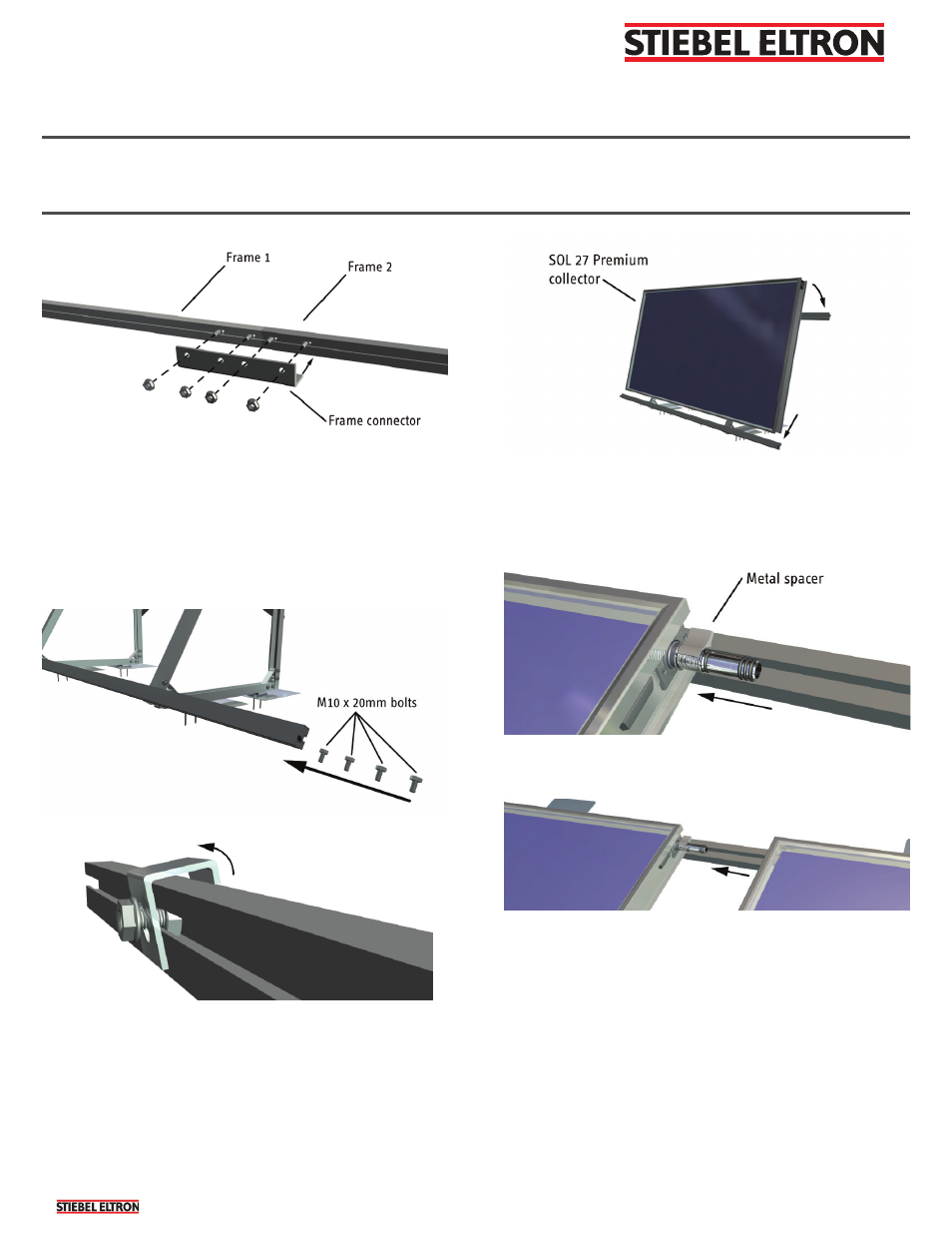

8. Before the assembly is bolted to the roof mount, the
bolts for the collector fastening clips must be slid into the
short side slot of all mounting frames. Slide four M10 x
20mm bolts in the short side of the mounting frame.Loosely
attach the fastening clips to the bolts and lift them over the
lip as shown for easy collector mounting.
9. The collectors are ready to be mounted in the rack
assembly. Lift the fi rst collector into the assembly as shown,
resting the bottom of it down fi rst.
10. Insert the inter-panel connector into the collector port
in preparation for the mounting of the second panel. Make
sure to have the metal space attached
11. Mount the next collector in the same manner as step 16.
12. Remove the metal spacer and discard it.
13. Attach metal clamps that are provided with the
connector to ensure a tight seal. This process is described in
more detail in the SOL 27 Premium Connector manual.
14. Slip the fastening clips over the lip of the collectors and
tighten down the nuts. A clamp may need to be used in
order to keep the clips from rotating due to the torque of a
ratchet or wrench.
