LOW VOLTAGE ROOM THERMOSTAT CONNECTIONS
A 24 VAC thermostat must be used (digital recommended).
1. Disconnect power to the Comfort Plus system.
2. Route low voltage wires from the thermostat to the Comfort Plus System.
3. Insulate thermostat wire wall opening if necessary and attach thermostat to the wall. When using a mechanical
thermostat or thermostat with anticipator, resistor kit #1190015 must be installed to ensure proper operation.

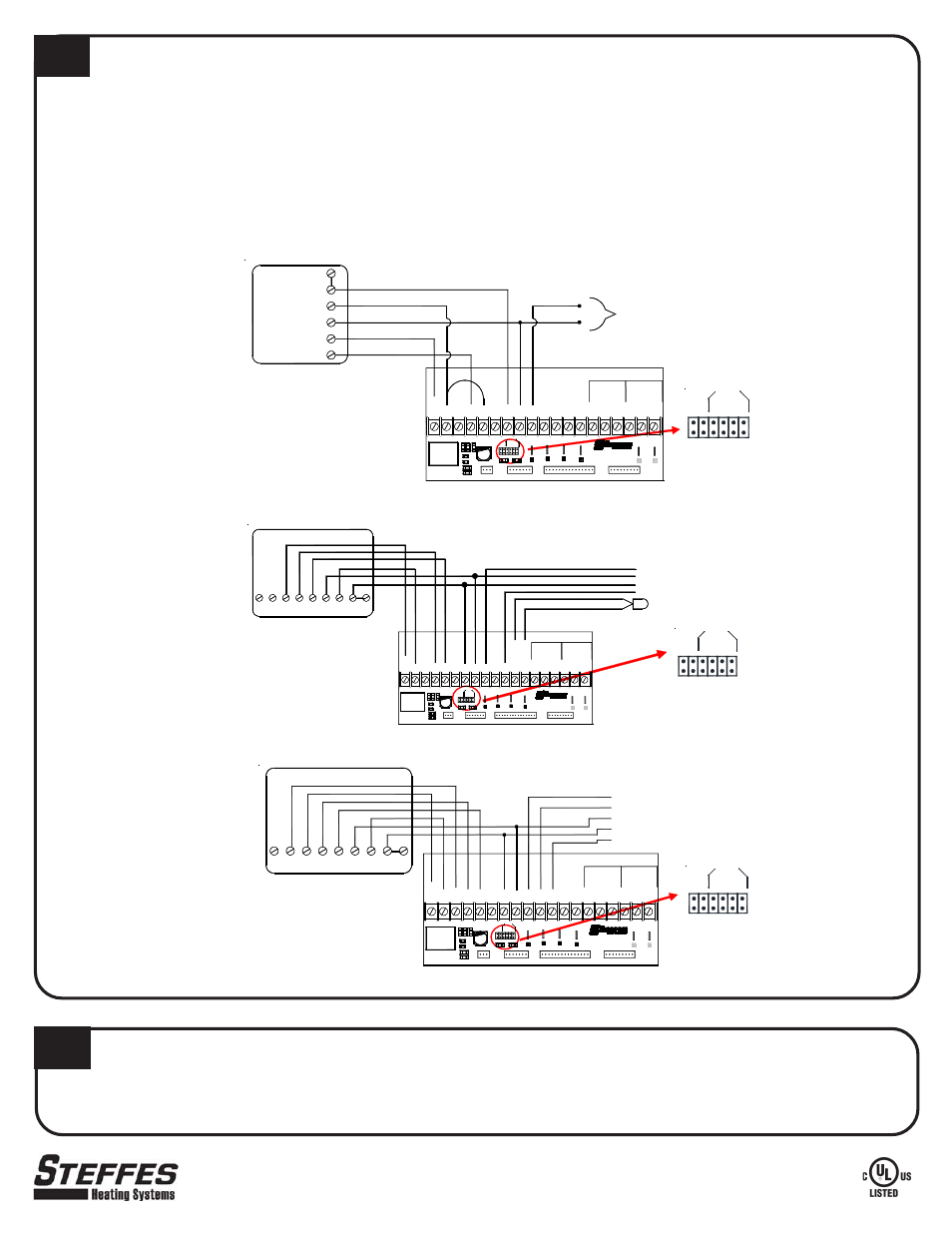

4. Connect low voltage wires from thermostat into terminal block as shown.
Part No. 1200285-6
3050 Hwy 22 North w Dickinson, ND 58601-9413 w www.steffes.com
NOTE: For detailed heat call information, reference the Owner's and Installer's Manual.
11
SOFTWARE CONFIGURATION AND INSTALLERS FINAL CHECKOUT
To ensure proper operation, the system software must be configured for the application. Refer to the Configuration Menu
in the Owner's and Installer's Manual or to the Configuration Guide provided by your local power company. Also, complete the
Installer's Final Checkout Procedure found in the Owner's and Installer's Manual.
